211-02-33 Power

Steering 211-02-33

DISASSEMBLY AND ASSEMBLY (Continued)

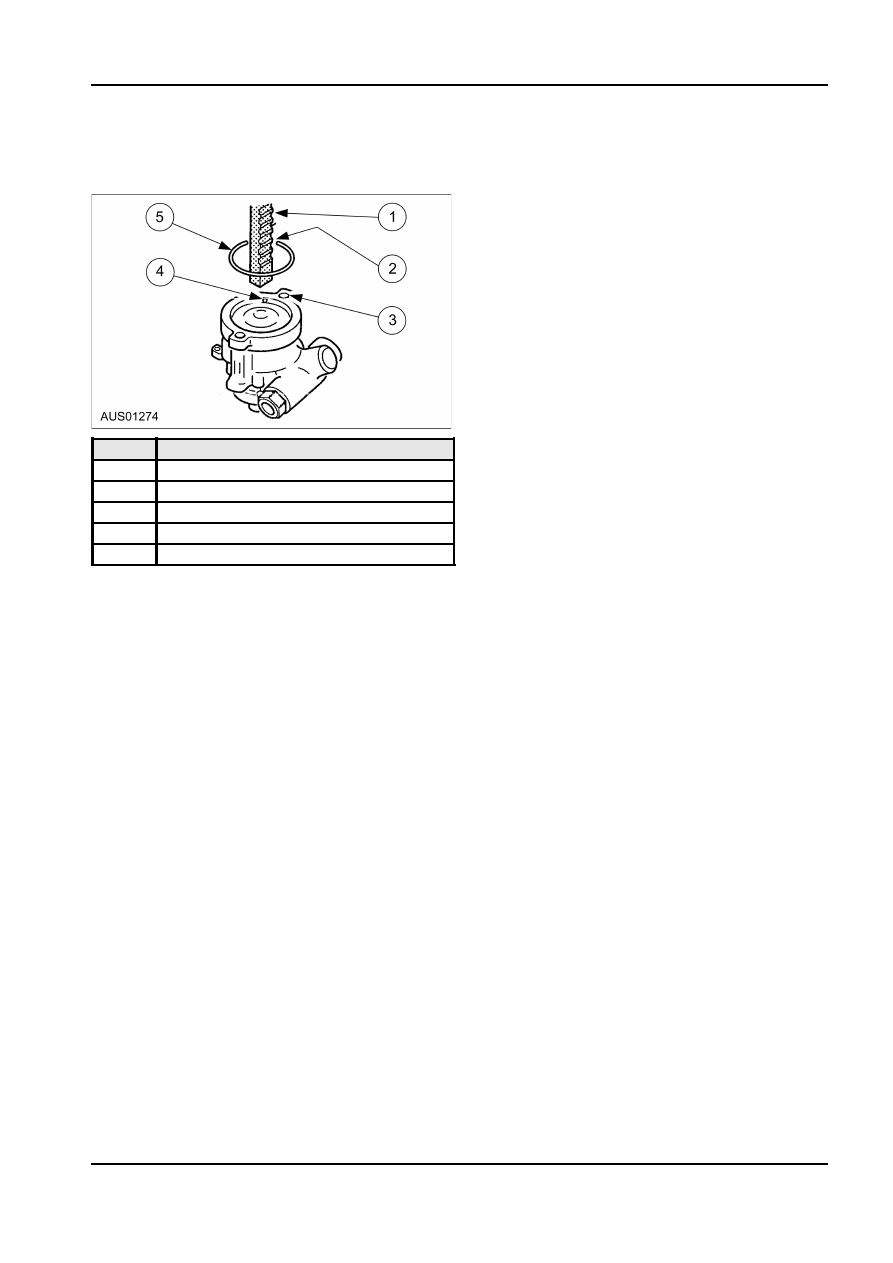

14. Assemble retaining ring into groove in pump

housing (with ring opening near access hole in

pump housing.

Item

Description

1

Press

2

Retaining Ring Opening

3

Bolt  Hole

4

Access Hole

5

Ring Retaining

G37385 en

211-03-1 Steering

Linkage 211-03-1

SECTION : 211-03 Steering Linkage

VEHICLE APPLICATION : 2003.0 BA Falcon
CONTENTS

PAGE

SPECIFICATIONS

 Specifications  .........................................................................................................................211-03-2

DIAGNOSIS AND TESTING

 Steering Linkage  ....................................................................................................................211-03-3

REMOVAL AND INSTALLATION

  Outer Tie — Rod  ....................................................................................................................211-03-4

  Inner Tie — Rod .....................................................................................................................211-03-5

  Steering Gear Boot  ................................................................................................................211-03-7

211-03-2 Steering

Linkage 211-03-2

SPECIFICATIONS

Tighten Specifications

Description

Nm

Metric Hex Nut (inner tie rod)

30 Nm (22 lb. ft.)

Metric Hex Nut (outer tie rod)

46.7–63.3 Nm

(34–47 lb. ft.) +

120 degrees (2

flats)

Inner Tie Rod

100 Nm (74 lb.

ft.)

Valve End Fittings

16.9 Nm (12.6

lb. ft.)

Cylinder End Fittings

27 Nm (20 lb. ft.)

Metric Hex Nut (rack and pinion

30 Nm (22 lb. ft.)

assembly)
Adjuster Plug

10 Nm (90 lb.

in.) then turn

back 35 degrees

to 55 degrees

G47379 en

211-03-3 Steering

Linkage 211-03-3

DIAGNOSIS AND TESTING

Steering Linkage

Refer to Section 211-00.
