Anti Lock Control

206-09-29

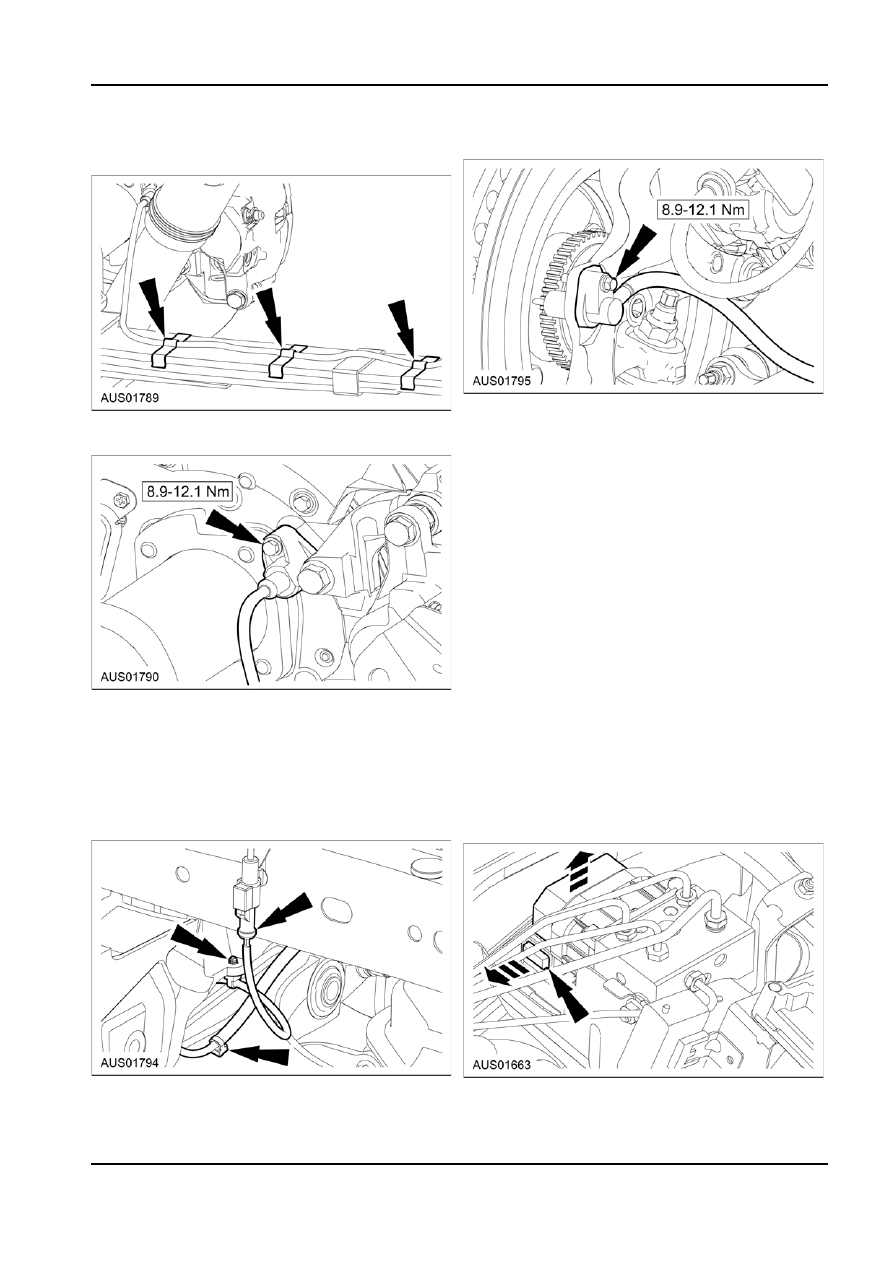

REMOVAL AND INSTALLATION (Continued)

3.  Unclip ABS Sensor cable clips from the leaf

3.  Remove ABS Sensor retaining bolt.

spring (3 off).

4. Remove

ABS

Sensor.

4.  Remove ABS sensor retaining bolt and withdraw

Installation

the ABS Sensor.

1.  Installation is the reverse order to removal.

Rear Tone Wheel

The rear tone wheel is not separately serviceable.

The tone wheel is serviced with the complete half

shaft assembly.

Front Tone Wheel

The front hub tone wheel is not separately

serviceable. The tone wheel is serviced with the

complete hub assembly.

ABS Modulator Assembly

Removal

Installation

NOTE: The ABS Modulator Assembly is a critical

1.  Installation is the reverse order to removal.

safety item. It should only be installed by trained and

experienced ABS Technicians.

Front ABS Wheel Sensors

1.  Ensure ignition is in the off position.

Removal

2.  Disconnect wiring from modulator by sliding the

1.  Disconnect ABS Sensor cable.

locking slide pin out and lifting the connector from

2.  Unclip fir tree clip 2 places.

the modulator.

G23427 en

206-09-30

Anti Lock Control

206-09-30

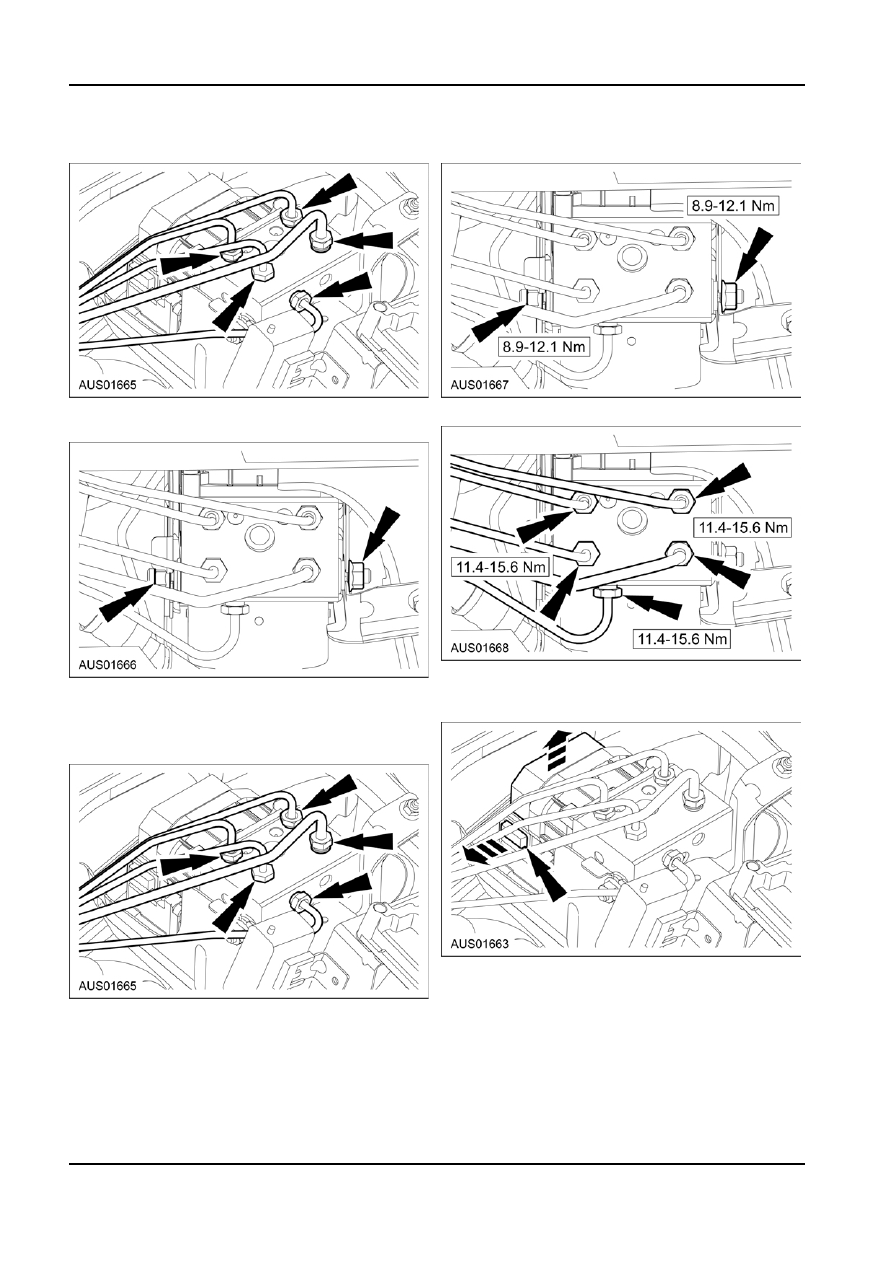

REMOVAL AND INSTALLATION (Continued)

3.  Loosen the brake lines.

3.  Refit mounting nuts and torque to specifications.

4.  Loosen the 2 mounting nuts and withdraw the

4.  Torque brake lines to specifications.

modulator from the vehicle.

5.  Re-connect wiring by placing the connector on the

Installation

locating lugs of the ABS ECU and then pushing in

the locking slide to secure the connector.

1.  Ensure mounting dampers are in place.
2.  Position modulator ensuring fully seated in bottom

pin and hand thread to brake lines.

6.  Bleed braking system as described in section

206-00 Brake System-General Information.

G23427 en

211-00-1

Steering System — General Information

211-00-1

SECTION : 211-00 Steering System — General

Information

VEHICLE APPLICATION : 2003.0 BA Falcon
CONTENTS

PAGE

DESCRIPTION AND OPERATION

 Service Kits  ............................................................................................................................211-00-2

GENERAL PROCEDURES

  Power Steering System Bleeding Air  .....................................................................................211-00-3

  Rack and Pinion Gear Rack Bearing Preload Adjustment  ....................................................211-00-4

  Steering Gear Lubrication  ......................................................................................................211-00-4

DISASSEMBLY AND ASSEMBLY

  Steering System Exploded  .....................................................................................................211-00-5

211-00-2

Steering System — General Information

211-00-2

DESCRIPTION AND OPERATION

Service Kits

Service Kit Contents Outer Tie Rod Assembly

Service Kit 26092580

Outer Tie Rod Assembly

Inner Tie Rod Assembly Service Kit 26092849

Inner Tie Rod Assembly
Metric Hex Nut
Seal Retaining Clamp

Rack And Pinion Boot Service Kit 26092851

Rack And Pinion Boot
Seal Retaining Clamp
Tie Rod End Clamp
Service Kit Grease (Not Shown)
Seal Installation Instruction Sheet (Not Shown)

Seal And Bearing Service Kit 26102901

Retaining Ring
Spool Shaft Seal
Needle And Bearing Assembly
Valve Body Ring (4)
Metric Hex Nut
Dust Cover
Adjuster Plug
Lube Shaft And Seal Instruction Sheet (Not

Shown)
Service Kit Grease (Not Shown)

Cylinder Line Assembly Service Kit (Right)

26102902

Cylinder Line Assembly
O-Ring Seal

Cylinder Line Assembly Service Kit (Left)

26102903

Cylinder Line Assembly
O-Ring Seal

Sleeve And Bushing Service Kit 26103515

Steering Gear Bushing
Steering Gear Bushing Sleeve

NOTE: Kits in bold reflect service kits supplied by

Delphi Saginaw. Parts listed below service kits are

included in each kit.
