Ford Falcon. Manual - part 6

100-01-4 Identification

Codes 100-01-4

DESCRIPTION AND OPERATION (Continued)

Body Style Code

BODY TYPE

CODE

XT Sedan

XT Wagon

Futura Sedan

Futura Wagon

XR Sedan

XR Ute

GT Sedan

Fairmont Sedan

Fairmont Wagon

Fairmont Ghia Sedan

Fairlane Ghia

LTD

XL Ute

XLS Ute

Model Code

Body Type

Body Style

Model Code

Sedan

18333

Wagon

18363

Sedan

Futura

18334

Wagon

Futura

18364

Sedan

18335

Sedan

FMT

18332

Wagon

FMT

18332

Sedan

FMT Ghia

18338

Sedan

Fairlane Ghia

18349

Sedan

LTD

18346

Ute

XL Tray

45313

Ute

XL SSB

45373

Ute

XR Tray

45375

Ute

XLS Tray

45314

Ute

XLS SSB

45374

G86656 en

100-01-5 Identification

Codes 100-01-5

DESCRIPTION AND OPERATION (Continued)

Paint Colour and Code

with the Design Rules referred to on the compliance

label of the vehicle.

Colour

Code

Such Laws must be complied with at all times.

Winter White

Failure to do so may result in Substantial Financial

Venom

Penalties. Where State/Territory Laws differ from the

Ice Mint Silver

repair manual procedures, the Laws MUST take

precedence.

Barossa Reb

To ensure continuing compliance it is imperative that

Congo Green

the engine/emission system is serviced according to

Silhouette

the specified procedure. A typical compliance plate is

Blue Print

shown below.

Narooma Blue

Compliance Plate (engine bay)

Phantom

Mercury Silver

Blue Pearl

Acid Rush

Citric Acid

Blood Orange

Victorian Taxi Yellow

Taxi Orange

Trim Colour and Code

Colour

Code

Stone

Warm Charcoal

Vehicle Compliance (VC) Label

Australian Design Rules (A.D.R.) reuire vehicle

manufacturere to comply with specific requirements

regarding consumer, environment protection, and

safety devices. A compliance plate is fitted to the

vehicle and this contains codes which relate to

specific design rules in effect at the time of vehicle

manufacture.
Legiclation requires that no alteration be made to a

vehicle that would result in the vehicle not complying

G86657 en

100-01-6 Identification

Codes 100-01-6

DESCRIPTION AND OPERATION (Continued)

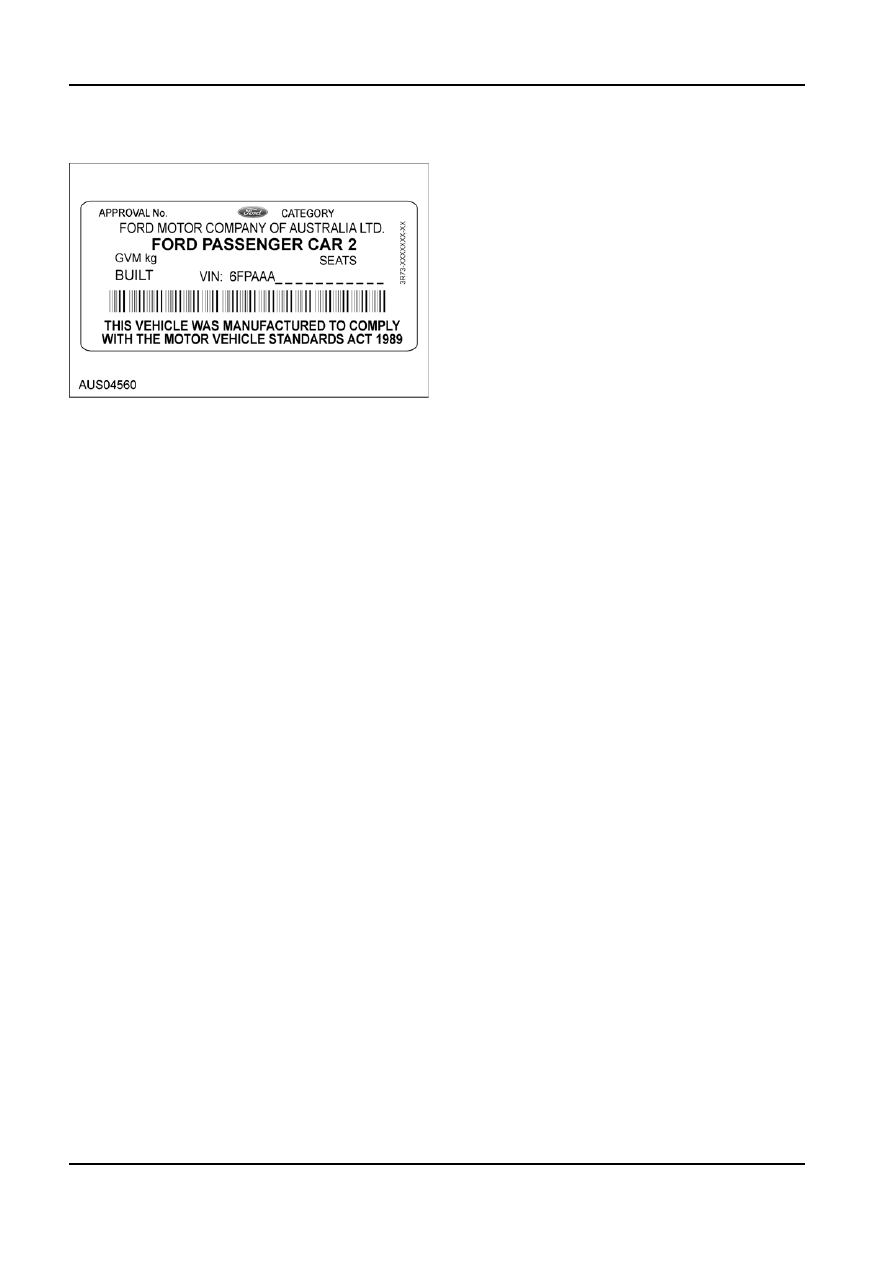

Compliance Plate (A-pillar)

Emission Decal

Emission Control Information Decal is affixed to the

underside of the bonnet. Should this decal become

mutilated or unreadable, a new decal must be

obtained and affixed to the vehicla. To ensure

contained compliance it is imperative that the engine

and emission system is serviced according to the

service procedures outlined in this manual.
Should it become necessary to replace a component

which affects vehicle emissions, it is mandatory that

the replacement part be of the same calibration as the

original part.
No circumstances would permit the disconnection,

alteration or modification of any emission related

component on vehicles marketed by Ford Sales

Company of Australia Limited, except in accordance

with the diagnostic, maintenance and repair

procedures specified in the Company’s service

materials.
Any person who removes, modifies or otherwise

renders ineffective any emission control components

fitted to a vehicle could be contravening the relevant

regulations and be guilty of an offence under the

regulations. Any person who owns and/or operates

such a vehicle could also be guilty of an offence

under the regulations.

G86657 en

100-02-1

Jacking and Lifting

100-02-1

SECTION : 100-02 Jacking and Lifting

VEHICLE APPLICATION : 2003.0 BA Falcon
CONTENTS

PAGE

DESCRIPTION AND OPERATION

Jacking ..................................................................................................................................100-02-2

Jacking/Lifting Points - Sedan/Wagon .................................................................................100-02-2

Jacking/Lifting Points - Ute ..................................................................................................100-02-2
