LESSON 2: VEHICLE OPERATION

2-43

10. The ECON Mode Indicator Lamp illuminates:

A. during braking.

B. during deceleration.

C. if the driver selects the Economy Mode.

D. if Traction Battery state of charge falls below 50%.

11. The Battery State of Charge Gauge is equivalent to the _________ on a standard vehicle.

A. ammeter.

B. voltmeter.

C. fuel gauge.

D. Battery Warning Lamp.

ACTIVITY 2 – VEHICLE FAMILIARIZATION – WORKSHEET F

INSTRUMENT GAUGES AND LIGHTS

STUDENT ANSWER SHEET (Continued)

END OF WORKSHEET F

NOTES

3-1

LESSON 3: SAFETY AND EMERGENCY INFORMATION

TECHNICIAN OBJECTIVES

•

Describe high voltage color coding.

•

Recognize high voltage warnings.

•

Identify the hazards associated with high voltages.

•

Identify the causes of most electrical accidents.

•

Identify safety rules that should be followed for accident

prevention.

•

Describe the first aid procedures to be followed in case of acid

contact and/or electric shock.

•

Describe what can be done to prevent fires.

•

Identify the classes of fire and the types and ratings of fire

extinguishers.

CONTENTS

•

Lead-Acid Battery Design

•

Lead-Acid Module Specifications

•

High Voltage Hazards

•

Electrical Accidents

•

Accident Prevention

•

First Aid Procedures

•

Fire Prevention

•

Activity 3 – EV Safety and Emergency Information

•

Worksheet G – Safety and Emergency Procedures

LESSON 3: SAFETY AND EMERGENCY INFORMATION

3-2

LEAD-ACID BATTERY DESIGN

Lead-Acid Battery Modules

•

The Electric Ranger uses advanced technology, valve-regulated,

starved electrolyte lead-acid batteries.

•

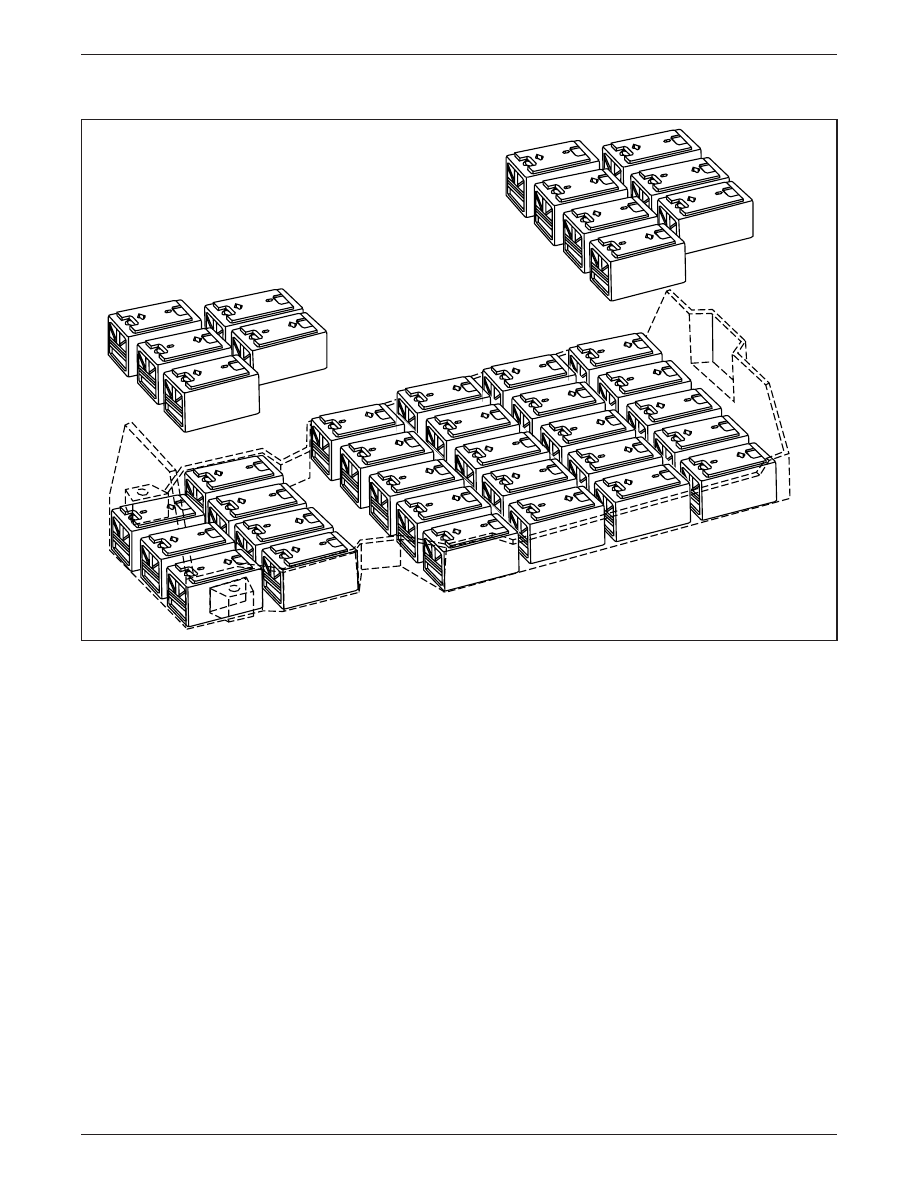

The 39 individual battery modules in the Traction Battery are

sealed and maintenance-free.

•

Each 8-volt battery is made up of a polypropylene case, stainless

steel terminals and sulfuric acid electrolyte.

•

The electrolyte inside each battery is soaked in a cotton-like fiber,

and only seven or eight drops will drain from each of the four cells

in an individual battery.

ER071-A

18

17

2

1

6

7

3

4

5

20

19

21

25

28

29

30

15

14

33

32

31

12

13

34

35

36

11

10

39

38

37

9

8

26

27

16

24

23

22
