Fold-Away Exterior Mirrors

Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when you unfold it.

INTERIOR MIRROR

Manual Dimming Mirror

WARNING

Do not adjust the mirrors when your
vehicle is moving. This could result
in the loss of control of your vehicle,

serious personal injury or death.

Pull the tab below the mirror toward you
to reduce the effect of bright light from
behind.

Automatic Dimming Mirror

 (If Equipped)

WARNING

Do not adjust the mirrors when your
vehicle is moving. This could result
in the loss of control of your vehicle,

serious personal injury or death.

The mirror dims to reduce the effect of
bright light from behind. It returns to
normal when the bright light from behind
is no longer present or if you shift into
reverse (R).

Do not block the sensors on the front and
back of the mirror.

Note: A rear center passenger or raised rear
center head restraint could prevent light
from reaching the sensor.

REAR QUARTER WINDOWS

Opening the Rear Quarter
Windows

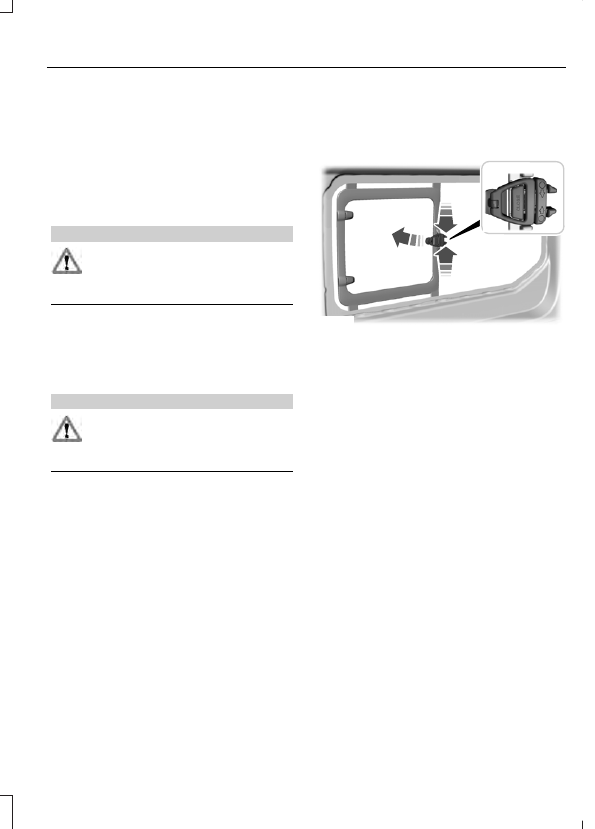

E170036

1

2

1.

Press the unlock button to release the
catch.

Note: Depending on the lock type fitted,
you will have to either press the unlock
buttons together or down to release the
catch.

2. Hold the catch and push the window

open. Make sure the catch engages.

Note: There is an audible click when the
catch engages.

Closing the Rear Quarter Windows

1.

Hold and pull the catch to close the
window.

2. Press the catch to engage the lock.

Note: There is an audible click when the
lock engages.

GAUGES

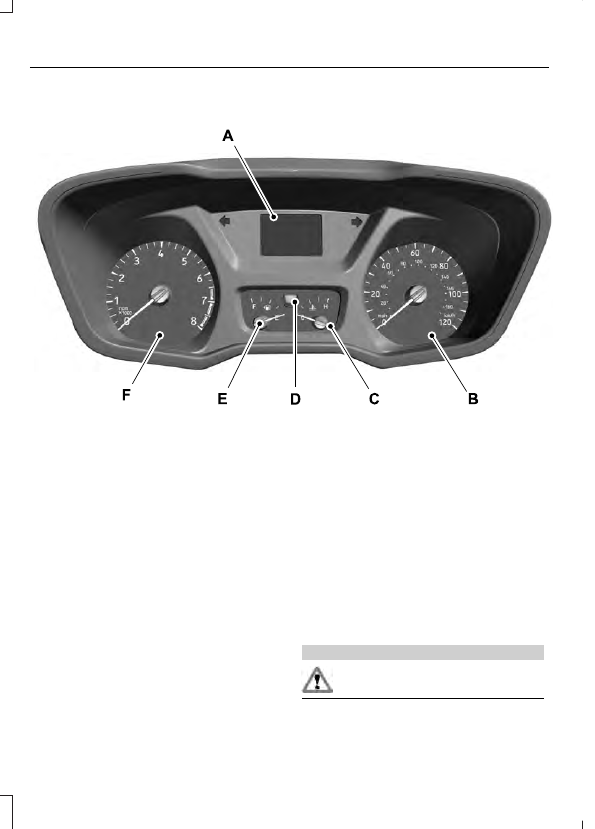

E184961

Information display.  See Information Displays (page 94).

A

Speedometer.

B

Engine coolant temperature gauge.

C

Tripmeter reset and distance to empty toggle button.

D

Fuel gauge.

E

Tachometer.

F

Information Display

Odometer

Registers the distance your vehicle has
traveled.

Outside Air Temperature

Shows the outside air temperature.

Trip Computer

See Trip Computer (page 97).

Vehicle Settings and Personalization

See General Information (page 94).

Engine Coolant Temperature
Gauge

WARNING

Never remove the coolant reservoir
cap while the engine is running or hot.

At normal operating temperature, the
needle will remain in the center section.

If the needle enters the red section, the
engine is overheating. Stop your vehicle as
soon as it is safe to do so and switch the
engine off. Determine the cause once the
engine has cooled down.  See Engine
Coolant Check (page 230).

Note: Do not restart the engine until the
cause of overheating has been determined
and resolved.

Tripmeter Reset and Distance to
Empty

 (If Equipped)

Press the button to change between the
tripmeter and distance to empty
information.  Press and hold the button to
reset the tripmeter.

Fuel Gauge

Note: The fuel gauge may vary slightly
when your vehicle is moving or on a gradient.

Switch the ignition on.  The fuel gauge will
indicate approximately how much fuel is
in the fuel tank.  The arrow adjacent to the
fuel pump symbol indicates on which side
of your vehicle the fuel filler door is located.

The needle should move toward F when
you refuel your vehicle. If the needle points
to E after adding fuel, this indicates your
vehicle needs service soon.

After refueling some variability in needle
position is normal:

•

It may take a short time for the needle
to reach F after leaving the gas station.
This is normal and depends upon the
slope of pavement at the gas station.

•

The fuel amount dispensed into the
tank is a little less or more than the
gauge indicated. This is normal and
depends upon the slope of pavement
at the gas station.

•

If the gas station nozzle shuts off
before the tank is full, try a different
gas pump nozzle.

Low Fuel Reminder

A low fuel reminder triggers when the fuel
gauge needle is at 1/16th.

Variations:

Distance-to-empty

Fuel gauge position

Driving type (fuel economy

conditions)

35 miles to 80 miles (56 km

to 129 km)

1/16th

Highway driving

35 miles (56km)

1/16th

Severe duty driving (trailer

towing, extended idle)

WARNING LAMPS AND
INDICATORS

The following warning lamps and
indicators alert you to a vehicle condition
that may become serious.  Some lamps
illuminate when you start your vehicle to
make sure they work.  If any lamps remain
on after starting your vehicle, refer to the
respective system warning lamp for further
information.

Note: Some warning indicators appear in
the information display and operate the
same as a warning lamp but do not
illuminate when you start your vehicle.

Airbag Warning Lamp

E67017

If it does not illuminate when you
switch the ignition on, continues
to flash or remains on when the

engine is running, this indicates a
malfunction.  Have your vehicle checked
as soon as possible.

Anti-Lock Brake System Warning
Lamp

If it illuminates when you are
driving, this indicates a
malfunction.  Your vehicle

continues to have normal braking without
the anti-lock brake system function.  Have
your vehicle checked as soon as possible.

It momentarily illuminates when you
switch the ignition on to confirm the lamp
is functional. If it does not illuminate when
you switch the ignition on, or begins to
flash at any time, have your vehicle
checked as soon as possible.

Battery Charging Condition
Warning Lamp

It illuminates when you switch
the ignition on.

If it illuminates when the engine is running
this indicates a malfunction.  Have your
vehicle checked as soon as possible.

Brake System Warning Lamp

WARNING

Driving extended distances with the
parking brake engaged can cause
brake failure and the risk of personal

injury.

E138644

It illuminates when you engage
the parking brake and the
ignition is on.

If it illuminates when your vehicle is
moving, make sure the parking brake is
disengaged.  If the parking brake is
disengaged, this indicates low brake fluid
level or a brake system fault.  Have your
vehicle immediately checked.

It momentarily illuminates when you
switch the ignition on to confirm the lamp
is functional. If it does not illuminate when
you switch the ignition on, or begins to
flash at any time, have your vehicle
checked as soon as possible.

Diesel Warning Lamps

 (If Equipped)

Diesel Exhaust Fluid Warning Lamp

E163176

It illuminates when the diesel
exhaust fluid is low.

If it illuminates, the information display
message advises whether it is diesel
exhaust fluid level related or due to a
system malfunction. If the diesel exhaust
fluid level is sufficient, this indicates a
system malfunction.  Have your vehicle
checked as soon as possible.
