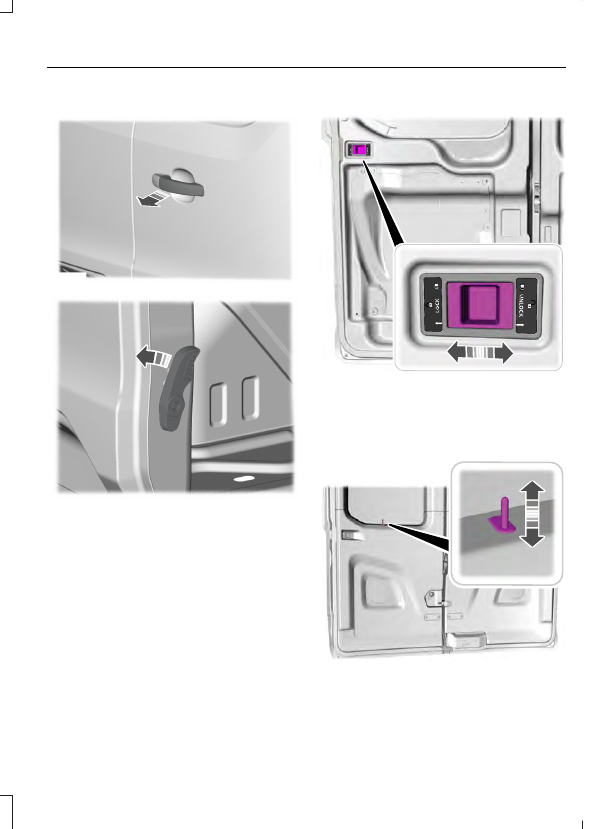

Opening the Double Rear Doors

E148805

E148806

Fully Opening the Double Rear Doors

E178366

1.

Slide the lever to release the catch.

2. Fully open the cargo door.

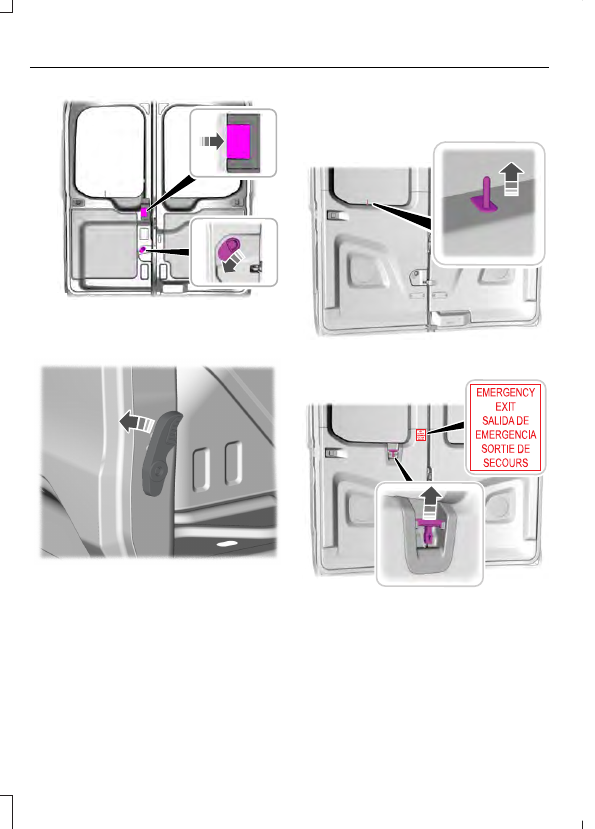

Unlocking and Opening the Double
Rear Doors From Inside

E175828

1.

Lift the locking button up.

E255876

2. Pull the upper release lever toward you

or slide the lower release lever
downward to open the door.

E148806

3. Pull the release lever to open the other

door.

Rear Emergency Exit

Wagon and Bus

E236264

1.

Lift the locking button up.

E179501

2. Pull the interior handle up to open the

door in an emergency.

Automatic Locking

You can set your vehicle's doors to lock
automatically when you exceed 5 mph
(8 km/h). You can switch this on in the
information display.  See Information
Displays (page 94).  If you have switched
automatic locking on, either use the interior
door unlock button or switch the ignition
off and use the key or remote control to
unlock the rear or sliding door.

Automatic Unlocking

You can switch this function on using the
information display.  See Information
Displays (page 94).  If you have switched
this function on, the automatic unlocking
feature unlocks all doors within 10 minutes
of the end of a drive cycle, when the driver
door is opened and the ignition is off.

One-Stage Unlocking

You can switch on this function using the
information display.  See Information
Displays (page 94).

If you have switched on this function, you
unlock all doors including the rear doors
and the sliding door.

You unlock all of the doors when you:
•

Press the unlock button on the remote
control once.

•

Press the interior unlock button once.

Two-Stage Unlocking

You unlock the front doors when you:
•

Press the unlock button on the remote
control once.

•

Press the interior unlock button once.

You unlock the front doors and cargo area
when you:
•

Press the unlock button on the remote
control once.

•

Press the unlock button on the remote
control twice within three seconds.

Zone Re-Locking

 (If Equipped)

If you enable zone re-locking and open one
door, all other doors remain locked. See an
authorized dealer for further information.

The locks on van, bus or wagon have two
zones, cabin and cargo. For van, the cargo
area includes the rear doors and the sliding
door. For bus or wagon, the cargo area
includes the rear doors.

•

Exit your vehicle and press the lock
button.

•

Press the unlock button or the cargo
area unlock button once to open the
respective zone.

If you now open a door within the unlocked
zone, the other doors in that zone
automatically lock.

Configurable Unlocking

Configurable unlocking is set when you
purchase your vehicle. It allows you to
select which doors unlock when you press,
once or twice, the unlock button or the
cargo area unlock button on your remote
control. You cannot switch this feature
back on if you had it switched off. See an
authorized dealer for further information.

PASSIVE ANTI-THEFT
SYSTEM

 (If Equipped)

Note: The system is not compatible with
non-Ford aftermarket remote start systems.
Use of these systems may result in vehicle
starting problems and a loss of security
protection.

Note: Metallic objects, electronic devices
or a second coded key on the same key
chain may cause vehicle starting problems
if they are too close to the key when starting
the engine. Prevent these objects from
touching the coded key while starting the
engine. Switch the ignition off, move all
objects on the key chain away from the
coded key and restart the engine if a
problem occurs.

Note: Do not leave a duplicate coded key
in the vehicle. Always take your keys and
lock all doors when leaving the vehicle.

SecuriLock®

The system is an engine immobilization
system. It is designed to help prevent the
engine from being started unless a
correctly coded key for your vehicle is used.
Using an incorrectly coded key may
prevent the engine from starting. A
message may appear in the information
display.

If you are unable to start the engine with a
correctly coded key, a malfunction has
happened and a message may appear in
the information display.

Automatic Arming

The engine immobilization system arms
immediately after you switch the ignition
off.

Automatic Disarming

Switching the ignition on with a correctly
coded key disarms the engine
immobilization system.

Replacement Keys

The integrated keyhead transmitter
functions as a programmed ignition key
that operates all the locks and starts your
vehicle, as well as a remote control.

If your keys are lost or stolen and you do
not have a spare correctly coded key, you
will need to have your vehicle towed to an
authorized dealer. You need to erase the
coded keys from your vehicle and program
new coded keys.

Store an extra correctly coded key away
from the vehicle in a safe place to help
prevent any inconveniences. See an
authorized dealer to purchase additional
spare or replacement keys.

Programming a Spare Integrated
Keyhead Transmitter

You can program your own integrated
keyhead transmitter or standard
SecuriLock coded keys to your vehicle. This
procedure will program both the engine
immobilizer keycode and the remote entry
portion of the remote control to your
vehicle

Only use integrated keyhead transmitters
or standard SecuriLock keys.

You must have two previously
programmed correctly coded keys and the
new unprogrammed key readily accessible.
See an authorized dealer to have the spare
key programmed if two previously
programmed correctly coded keys are not
available.

Read and understand the entire procedure
before you begin.

1.

Insert the first previously programmed
correctly coded key into the ignition.
