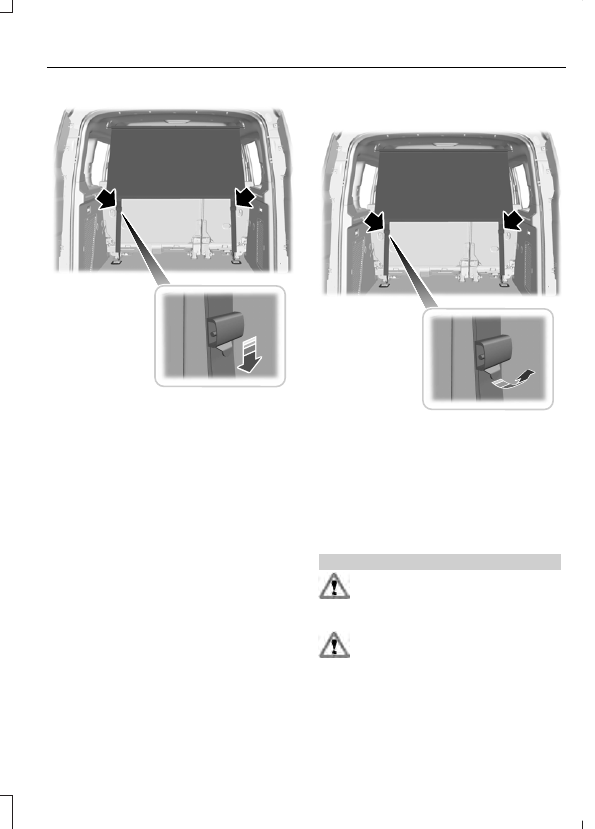

E167371

3. Tighten the straps.

Removing the Net

E167372

1.

Release the straps.

2. Remove the net from the luggage

anchor points.

3. Remove the upper bars.

ROOF RACKS AND LOAD
CARRIERS

WARNINGS

Read and follow the manufacturer’s
instructions when you are fitting a
roof rack. Failure to take care may

lead to a crash or personal injury.

When loading the roof racks, we
recommend you evenly distribute the
load, as well as maintain a low

center of gravity. Loaded vehicles, with
higher centers of gravity, may handle
differently than unloaded vehicles. Take

WARNINGS

extra precautions, such as slower speeds
and increased stopping distance, when
driving a heavily loaded vehicle. Failure to
take care may result in the loss of control
of your vehicle, serious personal injury or
death.

For correct roof rack system function, you
must place loads directly on crossbars
fitted to the roof rack side rails. When using
the roof rack system, we recommend you
use Ford genuine accessory crossbars
designed specifically for your vehicle.

Make sure that you securely fasten the
load. Check the tightness of the load
before driving and at each fuel stop.

Note: If you use a roof rack, the fuel
consumption of your vehicle will be higher
and you may experience different driving
characteristics.

Note: Never place loads directly on the roof
panel.

Maximum Load Weights

Do not exceed the following maximum
roof rack load weights.

Maximum Load lb

(kg)*

Variant

132 (60)

Wagon - short
wheel base with
panoramic roof
panel

165 (75)

Wagon - short
wheel base with
metal roof panel

165 (75)

Wagon - long
wheel base

165 (75)

Van

*Evenly distribute the load on the roof rack.

LOAD LIMIT

Vehicle Loading - with and
without a Trailer

This section guides you in the
proper loading of your vehicle,
trailer, or both. Keep your loaded
vehicle weight within its design
rating capability, with or without
a trailer. Properly loading your
vehicle provides maximum return
of vehicle design performance.
Before you load your vehicle,
become familiar with the
following terms for determining
your vehicle’s weight rating, with
or without a trailer, from the
vehicle’s Tire and Loading
Information label or Safety
Compliance Certification label.

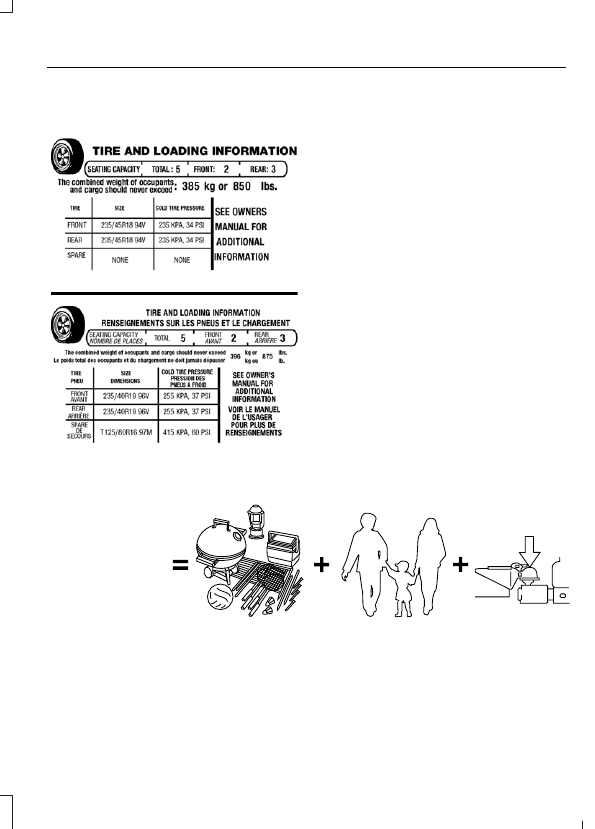

Tire and Loading Label Information
Example:

E198719

Payload

E143816

PAYLOAD

Payload is the combined weight
of cargo and passengers that your
vehicle is carrying. The maximum
payload for your vehicle appears
on the Tire and Loading label. The
label is either on the B-pillar or the
edge of the driver door. Vehicles
exported outside the US and
Canada may not have a tire and
loading label. Look for “The
combined weight of occupants
and cargo should never exceed
XXX kg OR XXX lb” for maximum
payload. The payload listed on the
Tire and Loading Information label
is the maximum payload for your
vehicle as built by the assembly
plant. If you install any additional
equipment on your vehicle, you
must determine the new payload.
Subtract the weight of the
equipment from the payload listed
on the Tire and Loading label.
When towing, trailer tongue
weight or king pin weight is also
part of payload.

WARNING

The appropriate loading
capacity of your vehicle can

be limited either by volume
capacity (how much space is
available) or by payload capacity
(how much weight the vehicle
should carry). Once you have
reached the maximum payload of
your vehicle, do not add more
cargo, even if there is space
available. Overloading or
improperly loading your vehicle
can contribute to loss of vehicle
control and vehicle rollover.

GAWR (Gross Axle Weight
Rating)

GAWR is the maximum allowable
weight that a single axle (front or
rear) can carry. These numbers
are on the Safety Compliance
Certification label. The label is
located on the door hinge pillar,
door-latch post, or the door edge
that meets the door-latch post,
next to the driver seating position.

The total load on each axle must
never exceed its Gross Axle
Weight Rating.

GVWR (Gross Vehicle Weight
Rating)

GVWR is the maximum allowable
weight of the fully loaded vehicle.
This includes all options,
equipment, passengers and cargo.
It appears on the Safety
Compliance Certification label.
The label is located on the door
hinge pillar, door-latch post, or the
door edge that meets the
door-latch post, next to the driver
seating position.

The gross vehicle weight must
never exceed the Gross Vehicle
Weight Rating.
