GENERAL INFORMATION

WARNINGS

Extended idling at high engine
speeds can produce very high
temperatures in the engine and

exhaust system, creating the risk of fire or
other damage.

Do not park, idle or drive your vehicle
on dry grass or other dry ground
cover. The emission system heats up

the engine compartment and exhaust
system, creating the risk of fire.

Do not start the engine in a closed
garage or in other enclosed areas.
Exhaust fumes can be toxic. Always

open the garage door before you start the
engine.

If you smell exhaust fumes inside
your vehicle, have your vehicle
checked by an authorized dealer

immediately. Do not drive your vehicle if
you smell exhaust fumes.

If you disconnect the battery, your vehicle
may exhibit some unusual driving
characteristics for approximately 5 miles
(8 kilometers) after you reconnect it. This
is because the engine management system
must realign itself with the engine. You can
disregard any unusual driving
characteristics during this period.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

When you start the engine, avoid pressing
the accelerator pedal before and during
operation. Only use the accelerator pedal
when you have difficulty starting the
engine.

IGNITION SWITCH

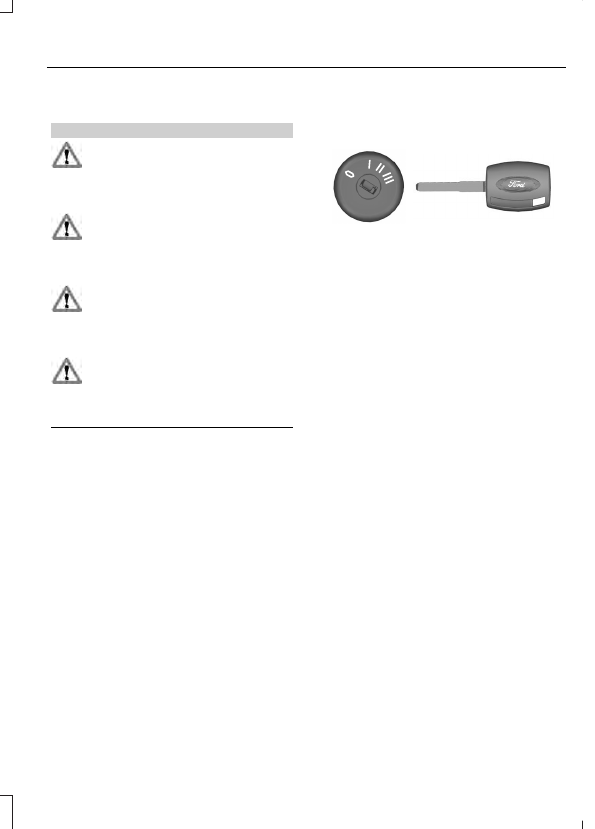

E72128

0 (off) - The ignition is off.

Note: When you switch the ignition off and
leave your vehicle, do not leave your key in
the ignition. This could cause your vehicle
battery to lose charge.

Note: To switch the engine off when your
vehicle is moving, move the transmission
selector lever to position N. Use the brakes
to bring the vehicle to a safe stop. After your
vehicle has stopped, switch the engine off
and move the transmission selector lever to
position P. Turn the key to position 0 or I.

I (accessory) - Allows the electrical
accessories such as the radio to operate
while the engine is not running.

Note: Do not leave the ignition key in this
position for too long. This could cause your
vehicle battery to lose charge.

II (on) - All electrical circuits operational.
Warning lamps and indicators are
illuminated.

III (start) - cranks the engine. Release the
key as soon as the engine starts.

STARTING A GASOLINE
ENGINE

Before starting the engine check the
following:
•

Make sure all occupants have fastened
their safety belts.

•

Make sure the headlamps and
electrical accessories are off.

•

Make sure the parking brake is on.

•

Make sure the transmission is in park
(P).

When you start the engine, the idle speed
increases, this helps to warm up the
engine. If the engine idle speed does not
slow down automatically, have your
vehicle checked by an authorized dealer.

Note: Do not touch the accelerator pedal.

1.

Fully press the brake pedal.

2. Turn the key to the on position to

switch the ignition on.

3. Turn the key to the start position to

start your vehicle. Release the key
when the engine starts.

Note: You can only operate the starter for
a limited period of time, for example 10
seconds. The number of start attempts is
limited to approximately six. If you exceed
this limit, the system will not allow you to
try again until a period of time has elapsed,
for example 30 minutes.

Engine Idle Speed after Starting

The speed at which the engine idles
immediately after starting will adjust
automatically to minimize vehicle
emissions and maximize cabin comfort
and fuel economy.

The idle speed will vary depending on
certain factors. These include vehicle
component and ambient temperatures as
well as electrical and climate system
demands.

Cold or Hot Engine

If the engine does not start within 10
seconds, wait for a short period and try
again.

If the engine does not start after three
attempts, wait 10 seconds and follow the
flooded engine procedure.

If you have difficulty starting the engine
when the temperature is below -13°F
(-25°C), press the accelerator pedal to the
mid-way point of its travel and try again.

Flooded Engine

1.

Shift into park (P).

2. Fully depress the accelerator pedal and

hold it there.

3. Start the engine.

Note: If the engine does not start, repeat
the cold or hot engine procedure.

SWITCHING OFF THE ENGINE

Vehicles With a Turbocharger

WARNING

Do not switch the engine off when it
is running at high speed. If you do, the
turbocharger will continue running

after the engine oil pressure has dropped
to zero. This will lead to premature
turbocharger bearing wear.

Release the accelerator pedal. Wait until
the engine has reached idle speed and then
switch it off.

ENGINE BLOCK HEATER

WARNINGS

Failure to follow engine block heater
instructions could result in property
damage or serious personal injury.

Do not use your heater with
ungrounded electrical systems or
two-pronged adapters. There is a risk

of electrical shock.

Do not fully close the hood, or allow
it to drop under its own weight when
using the engine block heater. This

could damage the power cable and may
cause an electrical short resulting in fire,
injury and property damage.

Note: The heater is most effective when
outdoor temperatures are below 0°F
(-18°C).

The heater acts as a starting aid by
warming the engine coolant. This allows
the climate control system to respond
quickly. The equipment includes a heater
element (installed in the engine block) and
a wire harness. You can connect the
system to a grounded 120-volt AC
electrical source.

We recommend that you do the following
for a safe and correct operation:
•

Use a 16-gauge outdoor extension cord
that is product certified by
Underwriter’s Laboratory (UL) or
Canadian Standards Association
(CSA). This extension cord must be
suitable for use outdoors, in cold
temperatures, and be clearly marked
Suitable for Use with Outdoor
Appliances. Do not use an indoor
extension cord outdoors. This could
result in an electric shock or become a
fire hazard.

•

Use as short an extension cord as
possible.

•

Do not use multiple extension cords.

•

Make sure that when in operation, the
extension cord plug and heater cord
plug connections are free and clear of
water. This could cause an electric
shock or fire.

•

Make sure your vehicle is parked in a
clean area, clear of combustibles.

•

Make sure the heater, heater cord and
extension cord are firmly connected.

•

Check for heat anywhere in the
electrical hookup once the system has
been operating for approximately 30
minutes.

•

Make sure the system is unplugged and
properly stowed before starting and
driving your vehicle. Make sure the
protective cover seals the prongs of the
block heater cord plug when not in use.

•

Make sure the heater system is
checked for proper operation before
winter.

Using the Engine Block Heater

Make sure the receptacle terminals are
clean and dry prior to use. Clean them with
a dry cloth if necessary.

The heater uses 0.4 to 1.0 kilowatt-hours
of energy per hour of use. The system does
not have a thermostat. It achieves
maximum temperature after
approximately three hours of operation.
Using the heater longer than three hours
does not improve system performance and
unnecessarily uses electricity.

SAFETY PRECAUTIONS

WARNINGS

Do not overfill the fuel tank. The
pressure in an overfilled tank may
cause leakage and lead to fuel spray

and fire.

The fuel system may be under
pressure. If you hear a hissing sound
near the fuel filler door (Easy Fuel

capless fuel system), do not refuel until
the sound stops. Otherwise, fuel may spray
out, which could cause serious personal
injury.

Automotive fuels can cause serious
injury or death if misused or
mishandled.

Flow of fuel through a fuel pump
nozzle can produce static electricity.
This can cause a fire if you are filling

an ungrounded fuel container.

Fuel ethanol and gasoline may
contain benzene, which is a
cancer-causing agent.

When refueling always shut the
engine off and never allow sparks or
open flames near the filler neck.

Never smoke or use a cell phone while
refueling. Fuel vapor is extremely
hazardous under certain conditions. Avoid
inhaling excess fumes.

Observe the following guidelines when
handling automotive fuel:

•

Extinguish all smoking materials and
any open flames before refueling your
vehicle.

•

Always turn off the vehicle before
refueling.

•

Automotive fuels can be harmful or
fatal if swallowed. Fuel such as
gasoline is highly toxic and if
swallowed can cause death or
permanent injury. If fuel is swallowed,
call a physician immediately, even if no
symptoms are immediately apparent.
The toxic effects of fuel may not be
visible for hours.

•

Avoid inhaling fuel vapors. Inhaling too
much fuel vapor of any kind can lead
to eye and respiratory tract irritation.
In severe cases, excessive or prolonged
breathing of fuel vapor can cause
serious illness and permanent injury.

•

Avoid getting fuel liquid in your eyes. If
fuel is splashed in the eyes, remove
contact lenses (if worn), flush with
water for 15 minutes and seek medical
attention. Failure to seek proper
medical attention could lead to
permanent injury.

•

Fuels can also be harmful if absorbed
through the skin. If fuel is splashed on
the skin, clothing or both, promptly
remove contaminated clothing and
wash skin thoroughly with soap and
water. Repeated or prolonged skin
contact with fuel liquid or vapor causes
skin irritation.

•

Be particularly careful if you are taking
“Antabuse” or other forms of disulfiram
for the treatment of alcoholism.
Breathing gasoline vapors, or skin
contact could cause an adverse
reaction. In sensitive individuals, serious
personal injury or sickness may result.
If fuel is splashed on the skin, promptly
wash skin thoroughly with soap and
water. Consult a physician immediately
if you experience an adverse reaction.
