Headlamp beam

A

Cornering lamp beam

B

The cornering lamps illuminate the inside
of a corner when you are turning.

DIRECTION INDICATORS

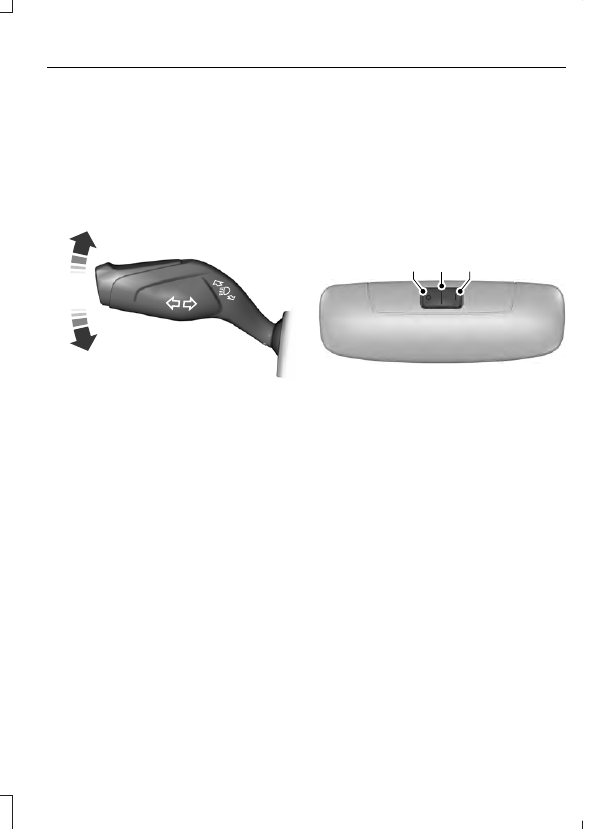

E162681

Push the lever up or down to use the
direction indicators.

Note: Tap the lever up or down to make the
direction indicators flash three times to
indicate a lane change.

INTERIOR LAMPS - VEHICLES
WITHOUT: PANORAMIC ROOF
PANEL

Courtesy Lamp

E112207

B

C

A

Off

A

Door contact

B

On

C

If you set the switch to position B, the
courtesy lamp will switch on when you
unlock your vehicle, open a door or the
liftgate. If you leave a door open with the
ignition switched off, the courtesy lamp
will switch off automatically after a short
period of time to prevent your vehicle
battery from losing charge. To switch it
back on, switch the ignition on for a short
period of time.

The courtesy lamp will also switch on
when you switch the ignition off. It will
switch off automatically after a short
period of time or when you start the engine.

If you set the switch to position C with the
ignition switched off, the courtesy lamp
will switch on. It will switch off
automatically after a short period of time
to prevent your vehicle battery from losing
charge. To switch it back on, switch the
ignition on for a short period of time.

Reading Lamps

E112208

If you switch the ignition off, the reading
lamps will switch off automatically after
a short period of time to prevent your
vehicle battery from losing charge. To
switch them back on, switch the ignition
on for a short period of time.

Luggage Compartment Lamp

The luggage compartment lamp will
switch on and off automatically when you
open and close the doors. If you unlock the
doors with the remote control, they will
switch on. They will switch off
automatically after a short period of time.

INTERIOR LAMPS - VEHICLES
WITH: PANORAMIC ROOF
PANEL

Side Mounted Lamp

B

C

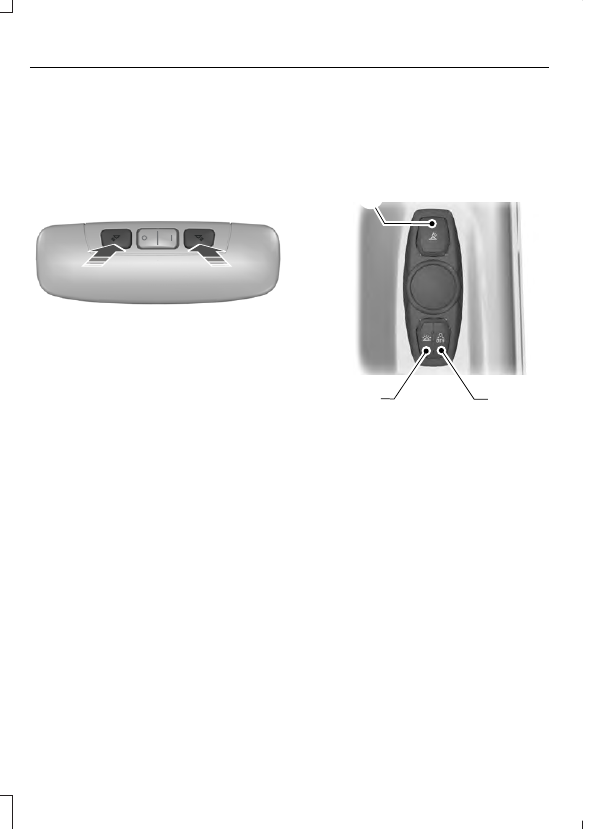

E139419

A

Reading lamp on and off switch

A

Door function switch

B

All lamps on and off switch

C

Press switch B to turn all lamps off when
a door is open. Press the switch again to
turn all lamps on.

You can control all lamps using switch C.

Center Mounted Lamp

E139420

C

D

A

B

Right-hand side reading lamp on
and off switch

A

Left-hand side reading lamp on
and off switch

B

Door function switch

C

All lamps on and off switch

D

Press switch C to turn all lamps off when
a door is open. Press the switch again to
turn all lamps on.

You can control all lamps using switch D.

Luggage Compartment Lamp

The luggage compartment lamp will
switch on and off automatically when you
open and close the doors. If you unlock the
doors with the remote control, they will
switch on. They will switch off
automatically after a short period of time.

POWER WINDOWS - VEHICLES
WITH: ONE-TOUCH DOWN
DRIVER WINDOW

WARNINGS

Do not leave children unattended in
your vehicle and do not let them play
with the power windows. They may

seriously injure themselves.

When closing the power windows,
you should verify they are free of
obstructions and make sure that

children and pets are not in the proximity
of the window openings.

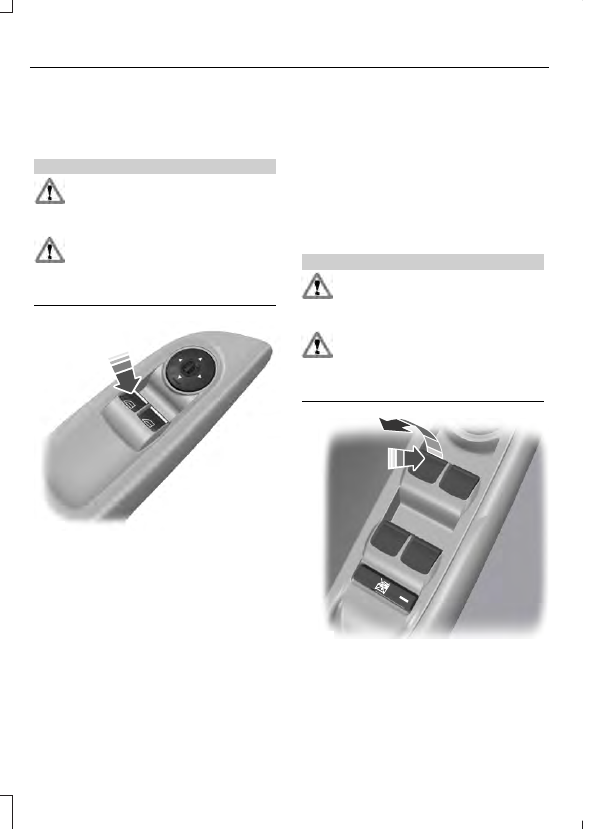

E166915

Note: You may hear a pulsing noise when
just one of the windows is open. Lower the
opposite window slightly to reduce this
noise.

Press the switch to open the window.

Lift the switch to close the window.

One-Touch Down

 (If Equipped)

Press the switch fully and release it. Press
again or lift it to stop the window.

Accessory Delay

 (If Equipped)

You can use the window switches for
several minutes when you switch the
ignition off or until you open either front
door.

POWER WINDOWS - VEHICLES
WITH: REAR POWER
WINDOWS

WARNINGS

Do not leave children unattended in
your vehicle and do not let them play
with the power windows. They may

seriously injure themselves.

When closing the power windows,
you should verify they are free of
obstructions and make sure that

children and pets are not in the proximity
of the window openings.

E70848

Press the control to open the window.

Lift the control to close the window.
