Ford Taurus (2018 year). Manual - part 57

Protected Components

Fuse Amp Rating

Fuse or Relay

Number

Rear window defrost relay.

5A

2

93

Passenger compartment fuse panel run/
start.

30A

1

94

Not used.

-

95

Not used.

-

96

Not used.

-

97

A/C clutch relay.

Relay

98

1

J-case fuses.

2

Mini fuses.

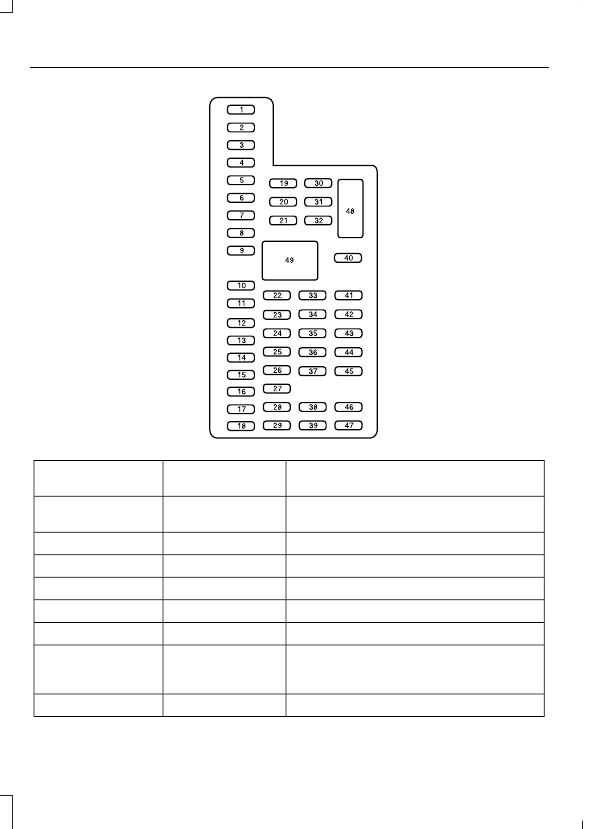

Passenger Compartment Fuse
Panel

The fuse panel is under the instrument
panel to the left of the steering wheel. You
may need to remove a trim panel to access
it.

E163102

Protected Components

Fuse Amp Rating

Fuse or Relay

Number

Left front and right rear smart window
motors.

30A

1

Driver seat switch.

15A

2

Right front smart window motor.

30A

3

Demand lamps battery saver relay.

10A

4

Audio amplifier.

20A

5

Not used (spare).

5A

6

Driver seat module logic.

7.5A

7

Left front door zone module.
Keypad.

Not used (spare).

10A

8

Protected Components

Fuse Amp Rating

Fuse or Relay

Number

SYNC module.

10A

9

Multi-function displays.
Electronic finish panel.
Radio frequency transceiver module.

Run accessory relay.

10A

10

Intelligent access module logic.

10A

11

Heads-up display.

Puddle lamp.

15A

12

Backlighting LED.
Interior lighting.

Right-hand direction indicators.

15A

13

Left-hand direction indicators.

15A

14

Stop lamp.

15A

15

Backup lamp.

Right low beam.

10A

16

Left low beam.

10A

17

Start button.

10A

18

Keypad illumination.
Brake-shift interlock.
Powertrain control module wake-up.
Immobilizer transceiver module.

Audio amplifiers.

20A

19

All lock motor relay and coil.

20A

20

Driver lock motor relay and coil.

Extended power module.

10A

21

Horn relay.

20A

22

Steering wheel control module logic

15A

23

Instrument cluster.

Steering wheel control module.

15A

24

Datalink.

Decklid release.

15A

25

Ignition switch.

5A

26

Protected Components

Fuse Amp Rating

Fuse or Relay

Number

Push button ignition switch.

Intelligent access module power.

20A

27

Not used (spare).

15A

28

Radio.

20A

29

Global positioning system module.

Front park lamps.

15A

30

Not used (spare).

5A

31

Smart window motors.

15A

32

Master window and mirror switch.
Rear window power sunshade module.
Lock switch illumination.

Not used (spare).

10A

33

Reverse park aid module.

10A

34

Automatic high beam and lane departure
module.
Rear heated seat module.
Blind spot monitor module.
Rear video camera.

Motorized humidity sensor.

5A

35

Heads-up display.
Traction control switch.

Heated steering wheel.

10A

36

Not used (spare).

10A

37

Auto–dimming mirror (without automatic
high beam and lane departure module).

10A

38

Moonroof module and switch.

High beams.

15A

39

Rear park lamps.

10A

40

Extended power module.

7.5A

41

Not used (spare).

5A

42

Not used (spare).

10A

43

Not used (spare).

10A

44
