Ford Super Duty (2018 year). Manual - part 91

Pick-up Truck

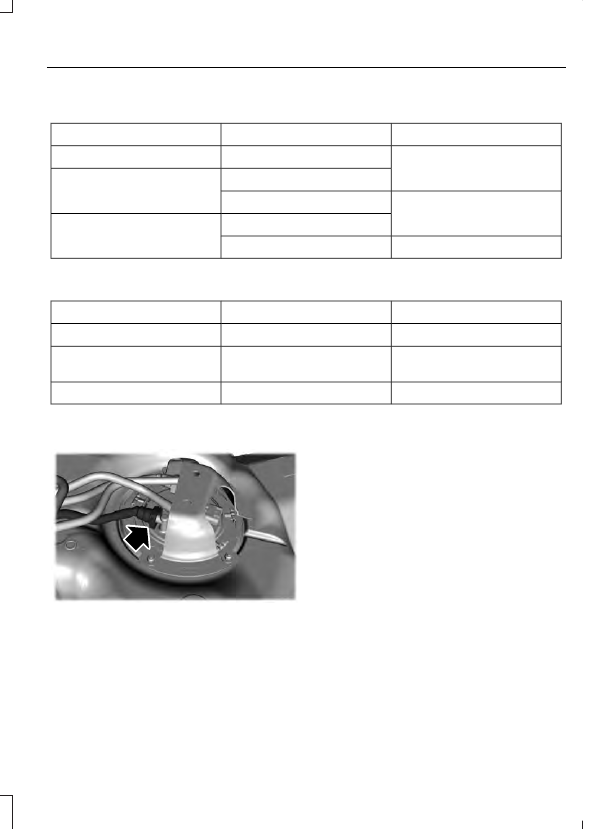

Filter Location

Box Length

Cab Type

Left side of fuel tank.

8 ft (2.4 m)

Regular.

6.75 ft (2.057 m)

SuperCab.

In front of fuel tank.

8 ft (2.4 m)

6.75 ft (2.057 m)

Super Crew Cab.

Left side of fuel tank.

8 ft (2.4 m)

Chassis Cab

Filter Location

Fuel Tank Type

Cab Type

Right side of fuel tank.

Single midship fuel tank

Chassis Cab.

Right side of midship fuel

tank.

Aft axle/midship fuel tanks

Chassis Cab.

Front of fuel tank.

Single aft axle fuel tank

Chassis Cab.

Removal

E247666

1.

For 2017 models, disconnect the fuel
line quick connect coupling from the in
tank fuel pump. For 2018 models and
later, skip this step but insure that the
fuel filler cap is closed before draining
the filter. If the cap isn't closed, the
filter will siphon the fuel tank even with
the anti-siphon valve.

2. Locate your filter.

3

E226212

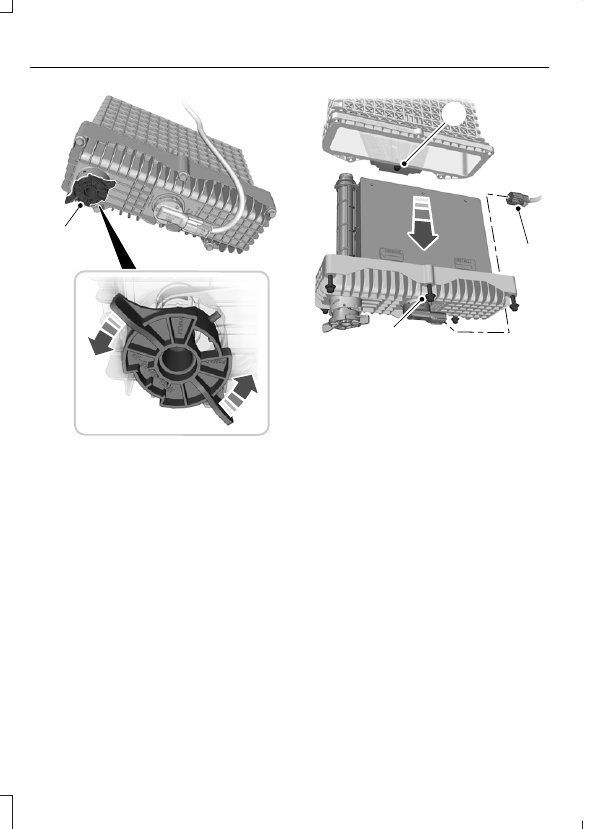

3. Drain the diesel fuel conditioner

module.  Turn the drain plug
counterclockwise until it stops.  Do not
use any tools to loosen the drain plug.
Drain the filter, approximately 0.53 gal
(2 L), into an appropriate container.
Do not re-use the fuel drained from the
module.

4

5

6

E226213

4. Disconnect the electrical connector.

5. Fully loosen the bolts securing the

lower portion of the diesel fuel
conditioner module housing.

Note: Do not fully remove the bolts from
the lower portion of the diesel fuel
conditioner module housing.

6. Remove the lower portion of the diesel

fuel conditioner module housing.

7

E226563

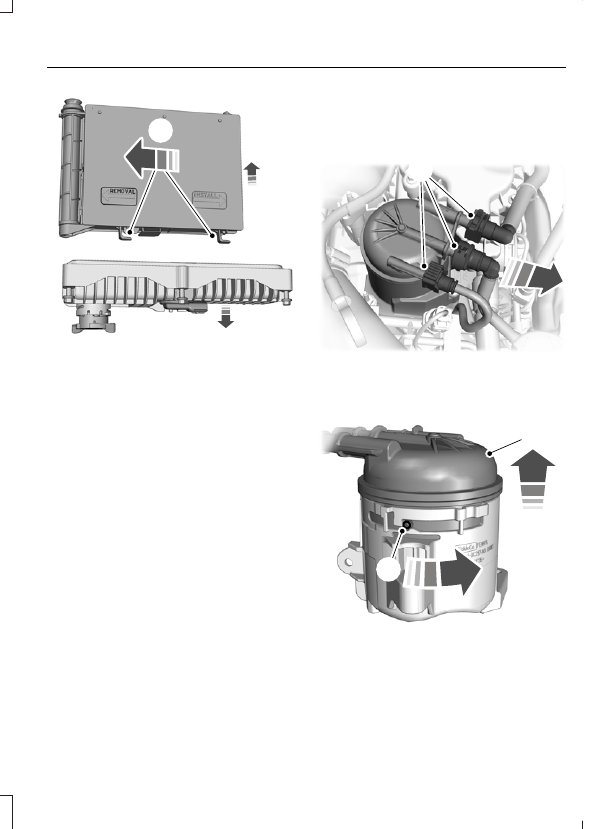

7.

Slide the filter element toward the
drain plug to disengage the securing
clips.

Installation

1.

Slide the filter element into the housing
and fully engage the securing clips.

2. Install the lower portion of the housing.

Tighten the bolts until you feel a strong
resistance. Maximum torque 7 lb.ft
(9 Nm).

3. Connect the electrical connector.

4. Tighten the drain plug, turn it clockwise

until it stops and you feel a strong
resistance. Do not use any tools to
tighten the drain plug.

Engine-mounted Fuel Filter

Although the fuel system is not fully
pressurized when the vehicle is off, some
residual pressure may remain in the fuel
system since it can take some time for the
pressure to completely bleed off.
Therefore, we recommend you place an
absorbent cloth below the filter connectors
to absorb any fuel that may drain.

The engine-mounted fuel filter is a plastic
disposable cartridge.

Removal

E226215

1

1.

Disconnect the fuel lines by squeezing
the connector tabs and pulling the lines
straight off.

E226214

2

3

2. Rotate the filter fully counterclockwise

until the peg is at the far end of the slot.

3. Pull the filter straight up from the

bracket and discard the filter.

Installation

1.

Install the new filter into the filter
bracket. Turn the filter clockwise to
lock it in place.

2. Reconnect the fuel lines.
