E194380

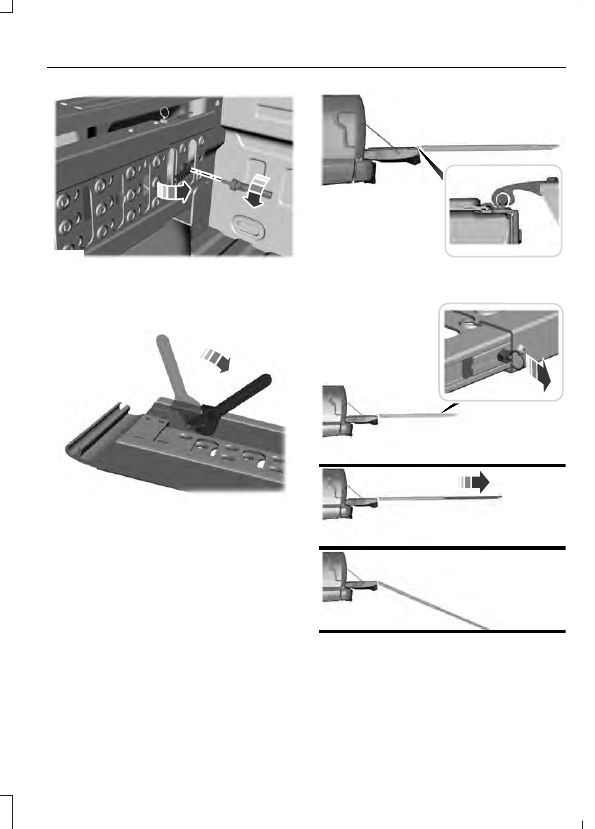

2. Open the cam lever arms and unscrew

the cam bolts.

3. Remove the ramp from the ramp

holder.

E211150

4. Rotate the stops at the underside of

the ramp to the open position.

Note: You can use a smooth surface tool
to rotate the stops.

E194382

5. Slide the ramp claw onto the tailgate

plate.

E194383

6. Pull the location pin outward and

extend the ramp until the pin is seated
in the usage position, then set the ramp
on even ground.

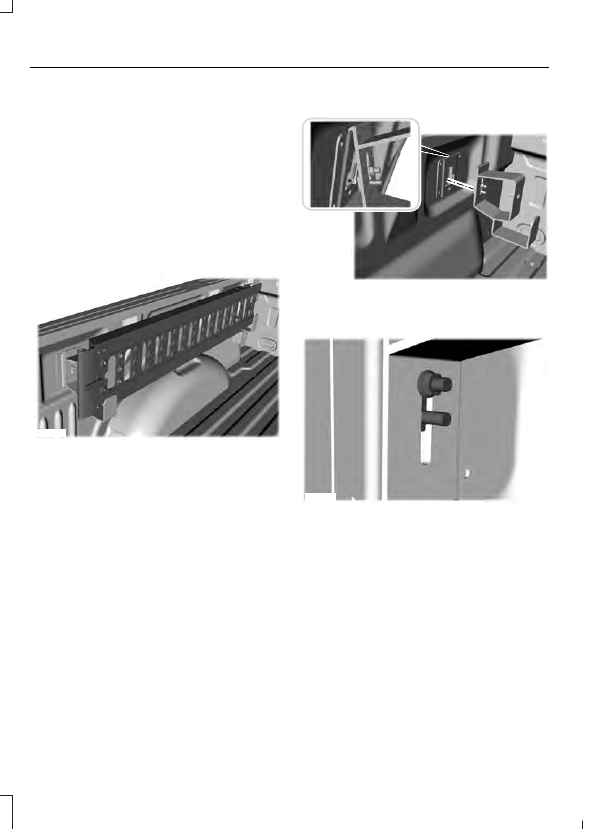

Stowing the Bed Ramp

1.

Pick up the ramp. Pull the location pin
outward.

2. Slide the ramp into the storage position

until the location pin locks.

Note: Make sure the proper pin location has
been applied for your bed size.

3. Slide the ramp claw off of the tailgate

plate.

4. Rotate the stops at the underside of

the ramp to the closed position.

E194391

5. Place the ramp into the ramp holder.

6. Install the cam bolts and close the cam

lever arms.

7.

Attach the front and rear cables.

Note: Make sure you properly secure the
locking cable. If the locking cable is
unsecured, you may hear a rattling noise.

Installing the Ramp Holder

E194387

1.

Hook the top of the ramp holder over
the mounting plate and rotate the
ramp holder into position.

E194388

2. Slide the ramp holder studs upwards

into the installed position.

3. Tighten the ramp holder nut.

Note: The nut should be on the upper stud.

TOWING A TRAILER

WARNINGS

Do not exceed the GVWR or
the GAWR specified on the

certification label.

Towing trailers beyond the
maximum recommended

gross trailer weight exceeds the
limit of your vehicle and could
result in engine damage,
transmission damage, structural
damage, loss of vehicle control,
vehicle rollover and personal
injury.

Do not exceed the lowest
rating capacity for your

vehicle or trailer hitch. Overloading
your vehicle or trailer hitch can
impair your vehicle stability and
handling. Failure to follow this
instruction could result in the loss
of control of your vehicle, personal
injury or death.

Do not cut, drill, weld or
modify the trailer hitch.

Modifying the trailer hitch could
reduce the hitch rating.

Note: To prevent your trailer from
accumulating distance, and the
trailer information status appearing
when you restart your vehicle after
disconnecting your trailer, you must
deactivate your trailer. Using the
information display, go to the
Towing menu and then the Select
Trailer option. Select the No active
trailer option.  See Information
Displays (page 114).

Your vehicle may have electrical
items, such as fuses or relays,
related to towing.  See Fuses
(page 318).

Your vehicle may have ability to
modify trailer towing features.
See General Information (page
114).

Your vehicle's load capacity
designation is by weight, not by
volume, so you cannot necessarily
use all available space when
loading a vehicle or trailer.

Towing a trailer places an extra
load on your vehicle's engine,
transmission, axle, brakes, tires
and suspension. Inspect these
components periodically during,
and after, any towing operation.

Load Placement

To help minimize how trailer
movement affects your vehicle
when driving:
•

Load the heaviest items closest
to the trailer floor.

•

Load the heaviest items
centered between the left and
right side trailer tires.

•

Load the heaviest items above
the trailer axles or just slightly
forward toward the trailer
tongue. Do not allow the final
trailer tongue weight to go
above or below 10-15% of the
loaded trailer weight.

•

Select a ball mount with the
correct rise or drop. When both
the loaded vehicle and trailer
are connected, the trailer frame
should be level, or slightly
angled down toward your
vehicle, when viewed from the
side.

When driving with a trailer or
payload, a slight takeoff vibration
or shudder may be present due to
the increased payload weight.
Additional information regarding
proper trailer loading and setting
your vehicle up for towing is
located in another chapter of this
manual.  See Load Limit (page
266).

You can also find information in
the RV & Trailer Towing Guide
available at your authorized
dealer, or online.

RV & Trailer Towing Guide Online

http://www.fleet.ford.com/towing-guides/
