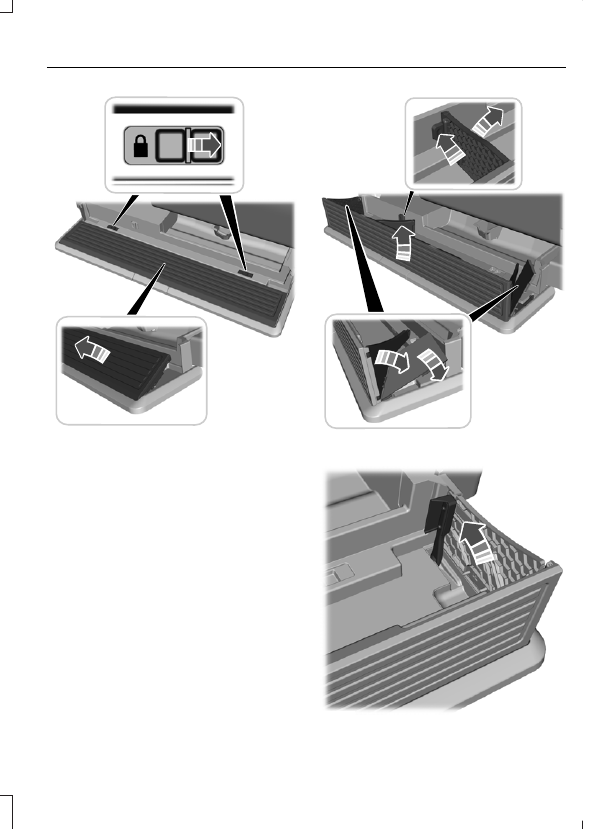

E235007

2. Lift front and side panels to expand

and lock them in place.

E235008

3. Lock the panels in an open position.

E235009

4. To collapse, lift lever and fold in the

side and front panels.

Note: Make sure the storage divider is not
locked into place when collapsing.

GENERAL INFORMATION

WARNINGS

Extended idling at high engine
speeds can produce very high
temperatures in the engine and

exhaust system, creating the risk of fire or
other damage.

Do not park, idle or drive your vehicle
on dry grass or other dry ground
cover. The emission system heats up

the engine compartment and exhaust
system, creating the risk of fire.

Do not start the engine in a closed
garage or in other enclosed areas.
Exhaust fumes can be toxic. Always

open the garage door before you start the
engine.

Exhaust leaks may result in entry of
harmful and potentially lethal fumes
into the passenger compartment. If

you smell exhaust fumes inside your
vehicle, have your vehicle inspected
immediately. Do not drive if you smell
exhaust fumes.

If you disconnect the battery, your vehicle
may exhibit some unusual driving
characteristics for approximately 5.0 mi
(8 km) after you reconnect it. This is
because the engine management system
must realign itself with the engine. You can
disregard any unusual driving
characteristics during this period.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

When you start the engine, avoid pressing
the accelerator pedal before and during
operation. Only use the accelerator pedal
when you have difficulty starting the
engine.

If your vehicle is operated in a heavy snow
storm or blowing snow conditions, the
engine air induction may become partially
clogged with snow and ice. If this occurs,
the engine may experience a significant
reduction in power output. At the earliest
opportunity, clear all the snow and ice
away from the air induction inlet.

IGNITION SWITCH

 (If Equipped)

E252522

A (off) - The ignition is off.

Note: When you switch the ignition off and
leave your vehicle, do not leave your key in
the ignition. This could cause your vehicle
battery to lose charge.

B (accessory) - Allows the electrical
accessories, such as the radio, to operate
while the engine is not running.

Note: Do not leave the ignition key in this
position for too long. This could cause your
vehicle battery to lose charge.

C (on) - All electrical circuits are
operational and the warning lamps and
indicators illuminate.

D (start) - Cranks the engine.

KEYLESS STARTING

Note: The system may not function if the
intelligent access key is close to metal
objects or electronic devices, for example
keys or a cell phone.

Note: A valid intelligent access key must
be located inside your vehicle to switch the
ignition on and start your vehicle.

Ignition Modes

E144447

The keyless starting system has three
modes:

Off: Turns the ignition off.

•

Without applying the brake pedal,
press and release the button once
when the ignition is in the on mode, or
when your vehicle is running but is not
moving.

On: All electrical circuits are operational
and the warning lamps and indicators
illuminate.

•

Without applying the brake pedal,
press and release the button once.

Start: Starts your vehicle. The engine may
not start when your vehicle starts.

•

Press the brake pedal, and then press
the button for any length of time. An
indicator light on the button illuminates
when the ignition is on and when your
vehicle starts.

STARTING A GASOLINE
ENGINE - 6.2L/6.8L

When you start the engine, the idle speed
increases.  This helps to warm up the
engine.

If the engine idle speed does not slow
down automatically, have your vehicle
checked by an authorized dealer.

Before starting the engine check the
following:
•

Make sure all occupants have fastened
their safety belts.

•

Make sure the headlamps and
electrical accessories are off.

•

Make sure the parking brake is on.

•

Move the transmission selector lever
to position P.

•

Turn the ignition key to the on position.

Note: Do not touch the accelerator pedal.

1.

Fully depress the brake pedal.

2. Turn the key to the start position to

start your vehicle.

3. When the engine starts, release the key

and then gradually release the brake
pedal as the engine speed increases.

Note: The engine may continue cranking
for up to 15 seconds or until it starts.

Note: If you cannot start the engine on the
first try, wait for a short period and try again.

Vehicles with an Ignition Key

Note: Do not touch the accelerator pedal.

1.

Fully depress the brake pedal.
