4. Connect the two panels. Rotate both

knobs one-quarter turn clockwise to
secure the panels.

E163099

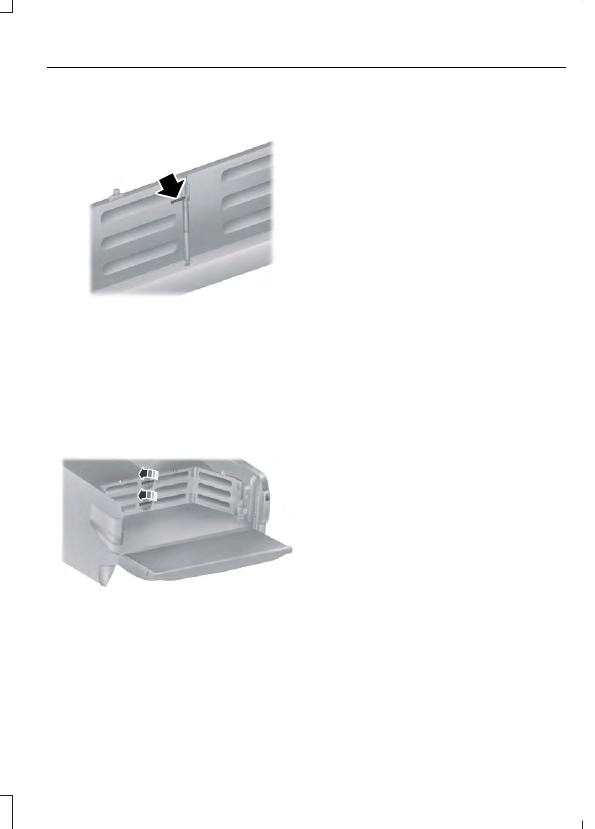

5. Make sure to insert the latch rod into

the tailgate hole. Make sure to engage
both sides of the locking pins into their
holes in the pick-up box.

Reverse the steps to store the bed
extender.

Grocery mode

E163100

Follow Steps 1-4 of the tailgate mode
instructions by rotating the panels away
from the tailgate. Close the tailgate.

 (If Equipped)

PASSIVE ANTI-THEFT
SYSTEM

Note:  The system is not compatible with
non-Ford aftermarket remote start systems.
Use of these systems may result in engine
starting problems and a loss of security
protection.

Note:  Metallic objects, electronic devices
or a second coded key on the same key
chain may result in vehicle starting
problems, especially if they are too close to
the key when starting your vehicle.  Prevent
these objects from touching the coded key
when starting your vehicle.  Switch the
ignition off, move all objects on the key
chain away from the coded key and restart
your vehicle if a problem occurs.

Note:  Do not leave a duplicate coded key
in your vehicle.  Always take your keys and
lock all doors when leaving your vehicle.

SecuriLock®

The system helps prevent the engine from
starting unless you use a coded key
programmed to your vehicle.  Using the
wrong key may prevent your vehicle from
starting.  A message may appear in the
information display.

If you are unable to start your vehicle with
a coded key, it is not operating correctly.
A message may appear in the information
display.

Automatic Arming

The system arms when you switch the
ignition off.

Automatic Disarming

The system disarms when you switch the
ignition on with a coded key.

Replacement Keys

Note: Your vehicle comes with two keys.

The integrated keyhead transmitter
functions as a programmed ignition key
that operates all the locks and starts your
vehicle, as well as a remote control.

The intelligent access key functions as a
programmed key that operates the driver
door lock and turns on the intelligent
access with push button start system, as
well as a remote control.

If your coded keys are lost or stolen and
you do not have an extra coded key, you
need to erase the key codes from your
vehicle and program new coded keys.
Contact an authorized dealer.

Store an extra programmed key away from
your vehicle in a safe place. You can
purchase replacement keys or remote
controls from an authorized dealer.

Programming a Spare Integrated
Keyhead Transmitter

Note: You can program a maximum of six
keys to your vehicle. All six can be integrated
keyhead transmitters.

You can program your own integrated
keyhead transmitter or standard
SecuriLock coded keys to your vehicle.
This procedure programs both the vehicle
immobilizer keycode and the remote
control to your vehicle.

Only use integrated keyhead transmitters
or standard SecuriLock keys.

You must have two previously
programmed coded keys and the new
unprogrammed key readily accessible.
Contact an authorized dealer to have the
spare key programmed if two previously
programmed keys are not available.

Read and understand the entire procedure
before you begin.

1.

Insert the first previously programmed
coded key into the ignition.

2. Switch the ignition from off to on.  Keep

the ignition on for at least 3 seconds,
but no more than 10 seconds.

3. Switch the ignition off and remove the

first coded key from the ignition.

4. After at least 3 seconds but within 10

seconds of switching the ignition off,
insert the second previously coded key
into the ignition.

5. Switch the ignition from off to on.  Keep

the ignition on for at least 3 seconds,
but no more than 10 seconds.

6. Switch the ignition off and remove the

second previously programmed coded
key from the ignition.

7.

After at least 3 seconds but within 10
seconds of switching the ignition off
and removing the previously
programmed coded key, insert the new
unprogrammed key into the ignition.

8. Switch the ignition from off to on.  Keep

the ignition on for at least six seconds.

9. Remove the newly programmed coded

key from the ignition.

If you have successfully programmed the
new integrated keyhead transmitter, it will
start your vehicle and operate the remote
entry system.

If programming was unsuccessful, wait 10
seconds and repeat steps 1 through 9. If
you are still unsuccessful, take your vehicle
to your authorized dealer.

Programming a Spare Intelligent
Access Key

Note: You can program a maximum of six
keys to your vehicle. All six must be
intelligent access keys.

This procedure programs both the vehicle
immobilizer keycode and the remote
control to your vehicle.

You must have two previously
programmed intelligent access keys inside
your vehicle and the new unprogrammed
intelligent access key readily accessible.
Contact an authorized dealer to have the
spare key programmed if two previously
programmed keys are not available.

Make sure that the ignition is switched off
before beginning this procedure.  Make sure
that you close all the doors before
beginning and that they remain closed
throughout the procedure.  Carry out all
steps within 30 seconds of starting the
sequence.  Stop and wait for at least one
minute before starting again if you carry
out any steps out of sequence.

Read and understand the entire procedure
before you begin.

1.

Remove the key blade from the
transmitter.

E226701

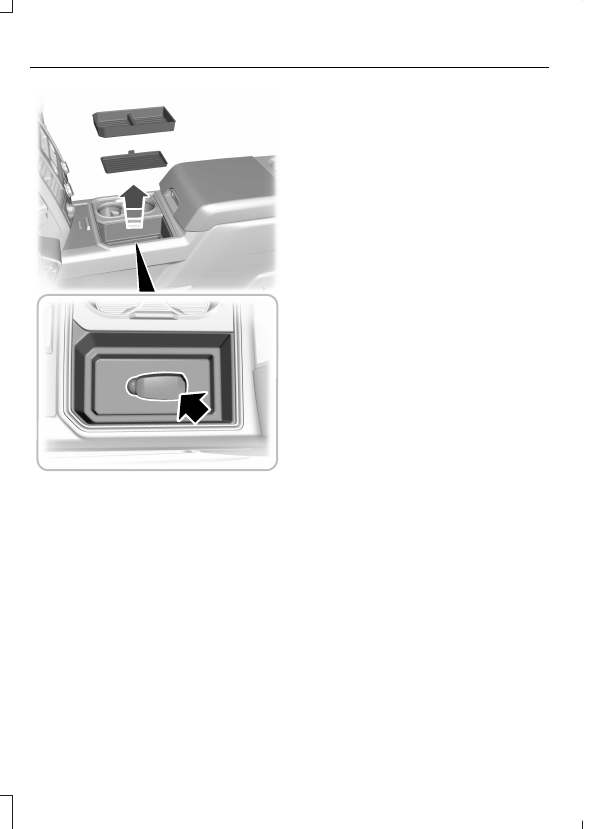

2. Remove the tray and the cover from

the center console. With the buttons
facing upward, place the first intelligent
access key in the backup slot.

3. Press the push button ignition switch.

4. Wait five seconds and then press the

push button ignition switch again.

5. Remove the intelligent access key.

6. Within 10 seconds, place a second

programmed intelligent access key in
the backup slot and press the push
button ignition switch.

7.

Wait five seconds and then press the
push button ignition switch again.

8. Remove the intelligent access key.

9. Wait five seconds, then place the

unprogrammed intelligent access key
in the backup slot and press the push
button ignition switch.

Programming is now complete.  Check that
the remote control functions operate and
your vehicle starts with the new intelligent
access key.

If programming was unsuccessful, wait 10
seconds and repeat steps 1 through 7. If
you are still unsuccessful, take your vehicle
to your authorized dealer.

ANTI-THEFT ALARM

The active anti-theft system is designed
to warn you in the event of unauthorized
vehicle entry and is also designed to help
prevent unwanted towing of your vehicle.
You can choose what is monitored by
arming the system in different ways.  See
Information Displays (page 114).

The direction indicators flash and the horn
sounds if the system triggers while the
alarm is armed.

Take all remote controls to an authorized
dealer if there is any potential alarm
problem with your vehicle.

Using the System

You can select two levels of alarm security.
You can change the level of security
through the information display.  See
General Information (page 114).

Reduced Guard (If Equipped)

Reduced guard monitors the following:
•

Doors.

•

Hood.
