Ford Police Interceptor Utility (2018 year). Manual - part 44

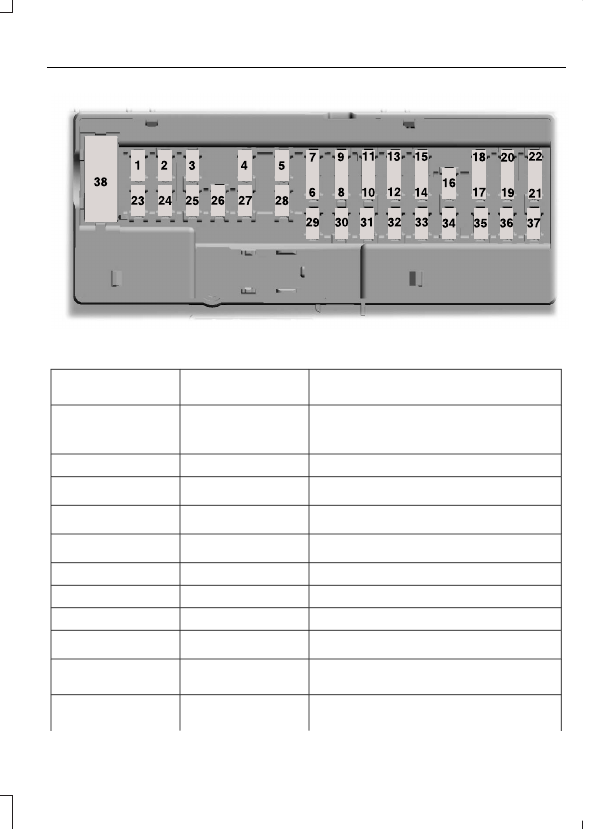

E145984

Protected Component

Fuse Rating

Fuse or Relay

Number

Demand lamps.

10A

1

1

Battery saver.
Police battery saver tap-in (14-way).

Not used.

—

2

Driver unlock relay.

20A

1

3

Police brake on/off tap-in.

5A

1

4

Police battery feed #2.

20A

1

5

Not used.

—

6

Not used.

—

7

Not used.

—

8

Police battery feed #3.

10A

1

9

Embedded modem.

5A

2

10

Hands free liftgate.

Rear climate control module.

5A

2

11

Securicode™ keyless entry keypad.

Protected Component

Fuse Rating

Fuse or Relay

Number

Power liftgate module.

Front climate control module.

7.5A

2

12

Instrument cluster.

7.5A

2

13

Smart data link.
Steering column control module.

Extended power module.

10A

2

14

Smart datalink connector power.

10A

2

15

Not used.

—

16

Electronic finish panel.

5A

2

17

Ignition switch.

5A

2

18

Key inhibit.

Transmission control switch (Police low
gear).

7.5A

2

19

Police SWIM module.

7.5A

2

20

Humidity sensor.

5A

2

21

Occupant classification sensor.

5A

2

22

Delayed accessory power.

10A

1

23

Power windows.
Police D/A tap-in (14-way).

Central lock relay.

20A

1

24

Left-hand front smart window motor.

30A

1

25

Right-hand front smart window motor.

30A

1

26

Not used.

—

27

Police battery feed #1.

20A

1

28

Not used.

—

29

Not used.

—

30

Protected Component

Fuse Rating

Fuse or Relay

Number

Not used.

—

31

SYNC module.

10A

1

32

GPS module.
Display.

Radio.

20A

1

33

Starter relay.

30A

1

34

Restraints control module.

5A

1

35

Extended power module.

Electronic control mirrors.

15A

1

36

Not used.

—

37

Left-hand front window motor.

30A

3

38

Rear power window motors.

1

Micro 2 fuse.

2

Micro 3 fuse.

3

Circuit breaker.

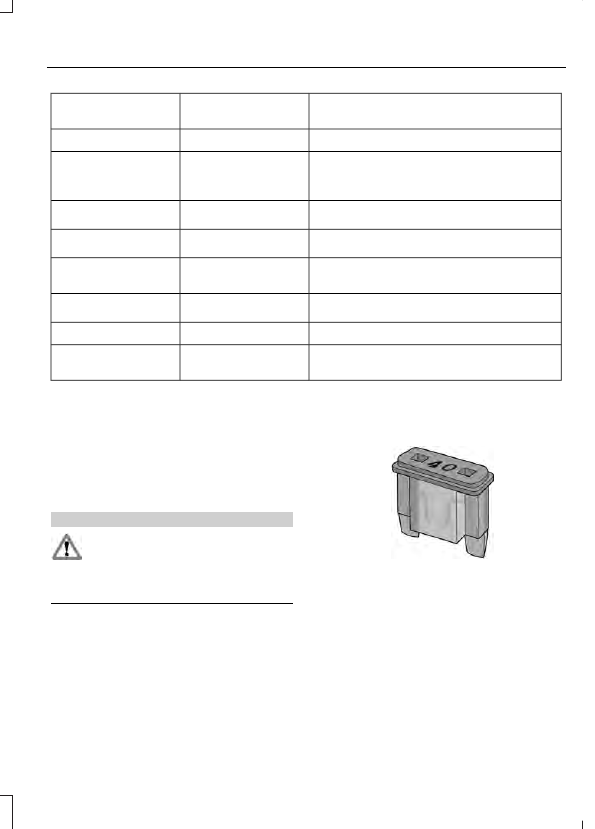

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage

rating can cause severe wire damage and
could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.

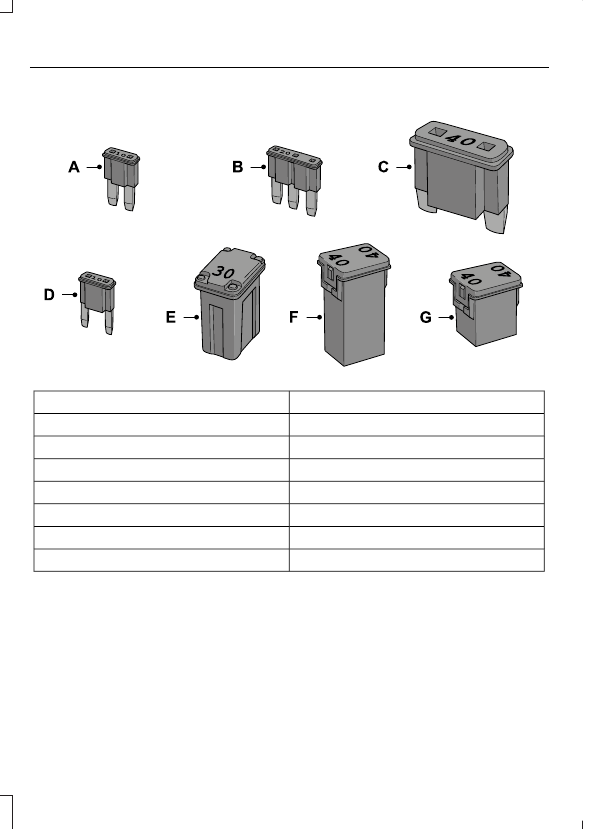

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

Mini

D

M Case

E

J Case

F

J Case Low Profile

G
