Ford Police Interceptor Utility (2018 year). Manual - part 22

Transmission

Action

Message

Contact an authorized dealer.

Transmission Malfunc-

tion Service Now

The transmission is overheating and needs to cool. Stop in a

safe place as soon as possible.

Transmission Over

Temperature Stop

Safely

The transmission is overheating and needs to cool. Stop in a

safe place as soon as possible.

Transmission Over-
heating Stop Safely

Contact an authorized dealer.

Transmission Service

Required

The transmission is getting hot. Stop to let it cool.

Transmission Too Hot

Press Brake

The transmission has limited functionality. See an authorized

dealer.

Transmission Limited

Function See Manual

The transmission is too cold. Wait for it to warm up before

you drive.

Transmission Warming

Up Please Wait

A reminder to shift into park.

Transmission Not in Park

A request for you to apply the brake as needed by the trans-

mission.

Press Brake Pedal

The transmission has adjusted the shift strategy.

Transmission Adjusted

The transmission is adjusting the shift strategy.

Transmission Adapt-

Mode

The transmission is locked and unable to select gears.

Transmission Indicat-

Mode Lockup On

The transmission is unlocked and free to select gears.

Transmission Indicat-

Mode Lockup Off

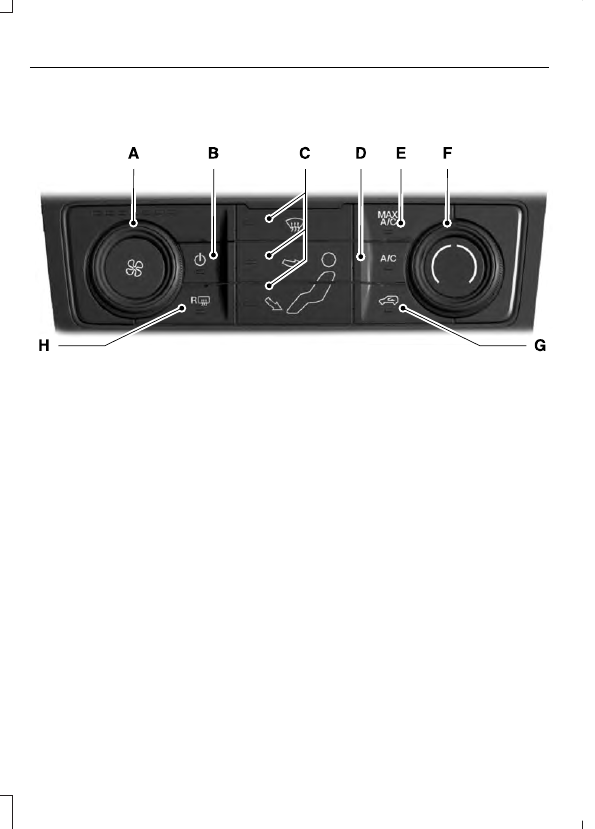

MANUAL CLIMATE CONTROL

E208043

Fan speed control: Adjusts the volume of air circulated in the vehicle.

A

Power: Press to switch the system on and off. When the system is off, it
prevents outside air from entering the vehicle.

B

Air distribution control: Press to switch air flow from the windshield,
instrument panel, or footwell vents on or off. You can distribute air through any
combination of these vents.

C

Note: At least one of these buttons illuminates on when the system is on.

A/C: Press to switch the air conditioning on or off. Use A/C with recirculated
air to improve cooling performance and efficiency.

D

MAX A/C: Press for maximum cooling. Recirculated air flows through the
instrument panel vents, air conditioning turns on and the fan adjusts to the
highest speed.

E

Temperature control: Adjusts the temperature of the air circulated in your
vehicle.

F

Recirculated air: Press to switch between outside air and recirculated air. The
air currently in the passenger compartment recirculates. This can reduce the
time needed to cool the interior and reduce unwanted odors from entering your
vehicle.

G

Note: Recirculated air may turn off (or prevent you from switching on) in all air
flow modes except MAX A/C to reduce the risk of fogging. Recirculation may
also turn on and off in Panel or Panel/Floor air flow modes during hot weather
in order to improve cooling efficiency.

Heated rear window: Press to switch the heated rear window on and off.  See
Heated Windows and Mirrors (page 94).

H

HINTS ON CONTROLLING THE
INTERIOR CLIMATE

General Hints

Note: Prolonged use of recirculated air may
cause the windows to fog up.

Note: You may feel a small amount of air
from the footwell air vents regardless of the
air distribution setting.

Note: To reduce humidity build-up inside
your vehicle, do not drive with the system
switched off or with recirculated air always
switched on.

Note: Do not place objects under the front
seats as this may interfere with the airflow
to the rear seats.

Note: Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.

Note: To improve the time to reach a
comfortable temperature in hot weather,
drive with the windows open until you feel
cold air through the air vents.

Quickly Heating the Interior

1.

Adjust the fan speed to the highest
speed setting.

2. Adjust the temperature control to the

highest setting.

3. Direct air to the footwell air vents.

Recommended Settings for
Heating

1.

Adjust the fan speed to the center
setting.

2. Adjust the temperature control to the

midway point of the hot settings.

3. Direct air to the footwell air vents.

Quickly Cooling the Interior

1.

Select MAX A/C.

2. Drive with the windows open for a short

period of time.

Recommended Settings for
Cooling

1.

Adjust the fan speed to the center
setting.

2. Adjust the temperature control to the

midway point of the cold settings.

3. Direct air to the instrument panel air

vents.

Vehicle Stationary for Extended
Periods During Extreme High
Ambient Temperatures

1.

Apply the parking brake.

2. Place your vehicle in park (P) or

neutral.

3. Select MAX A/C.

4. Adjust the fan speed to the lowest

speed setting.

Defogging the Side Windows in
Cold Weather

1.

Direct air to the instrument panel and
windshield.

2. Press A/C.

3. Adjust the temperature control to the

desired setting.

4. Adjust the fan speed to the highest

setting.

5. Direct air toward the side windows.
6. Close the instrument panel vents.

HEATED WINDOWS AND
MIRRORS

Note: Make sure the engine is running
before operating the heated windows.

Heated Rear Window

E184884

Press the button to clear the
heated rear window of thin ice
and fog.  The heated rear

window turns off after a short period of
time.  Press the button again to switch it
off.

Note:  Do not use razor blades or other
sharp objects to clean or remove decals
from the inside of the heated rear window.
The vehicle warranty does not cover
damage caused to the heated rear window
grid lines.

Heated Exterior Mirrors

When you switch the heated rear window
on, the heated exterior mirrors turn on.

Note: Do not remove ice from the mirrors
with a scraper or adjust the mirror glass
when it is frozen in place.

Note: Do not clean the mirror housing or
glass with harsh abrasives, fuel or other
petroleum-based cleaning products.

CABIN AIR FILTER

Your vehicle is equipped with a cabin air
filter, which gives you and your passengers
the following benefits:
•

It improves your driving comfort by
reducing particle concentration.

•

It improves the interior compartment
cleanliness.

•

It protects the climate control
components from particle deposits.

You can locate the cabin air filter behind
the glove box.

Note: Make sure you have a cabin air filter
installed at all times. This prevents foreign
objects from entering the system. Running
the system without a filter in place could
result in degradation or damage to the
system.

Replace the filter at regular intervals.  See
Scheduled Maintenance (page 304).

For additional cabin air filter information,
or to replace the filter, see an authorized
dealer.
