E145950

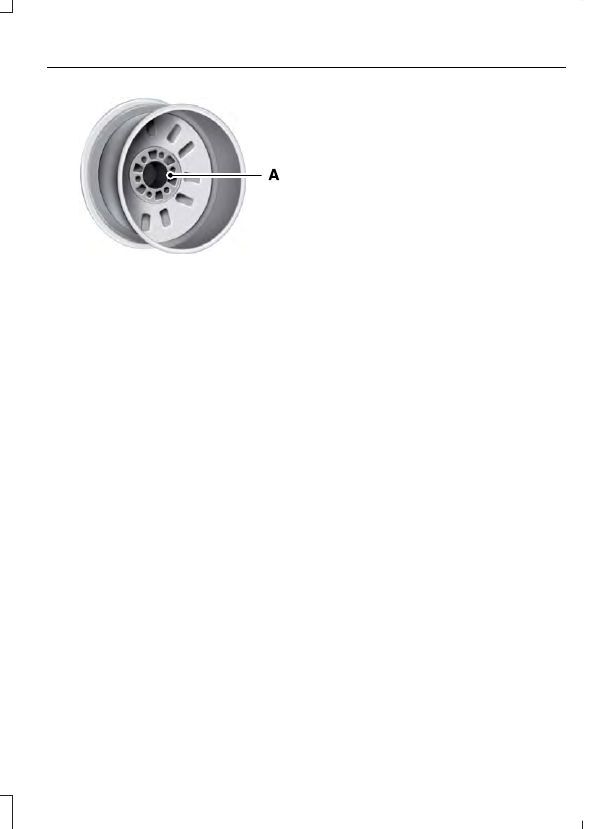

Wheel pilot bore

A

Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.

ENGINE SPECIFICATIONS - 2.0L ECOBOOST™

Specification

Measurement

122

Cubic inches

9.3:1

Compression ratio

Coil on plug

Ignition system

0.027-0.031 in. (0.70-0.80 mm)

Spark plug gap

1-3-4-2

Firing order

Drivebelt Routing

2.0L EcoBoost

E161383

A

B

A. The long drivebelt is on the first pulley

groove closest to the engine.

B. The short drivebelt is on the second

pulley groove farthest from the engine.

ENGINE SPECIFICATIONS - 3.5L DURATEC

Specification

Measurement

214

Cubic inches

1-4-2-5-3-6

Firing order

Coil on plug

Ignition system

0.049 - 0.053 in (1.25 mm - 1.35 mm)

Spark plug gap

10.8:1

Compression ratio

Drivebelt Routing

3.5L Duratec

E191904

ENGINE SPECIFICATIONS - 3.5L ECOBOOST™

Specification

Measurement

214

Cubic inches

1-4-2-5-3-6

Firing order

Coil on plug

Ignition system

0.030–0.033 in (0.75–0.85 mm)

Spark plug gap

10.0:1

Compression ratio

Drivebelt Routing

3.5L EcoBoost

E191904

ENGINE SPECIFICATIONS - 3.7L

Specification

Measurement

227

Cubic inches

1-4-2-5-3-6

Firing order

Coil on plug

Ignition system

0.049 - 0.053 in (1.25 - 1.35 mm)

Spark plug gap

10.5:1

Compression ratio

Drivebelt Routing

3.7L Duratec

E191904

MOTORCRAFT PARTS - 2.0L ECOBOOST™

Motorcraft part number

Component

FA-1884

Air filter element

FL-910-S

Engine oil filter

FT-193

Transmission oil filter

BXT-65-750

Battery

SP-537

Spark plugs

FP68

Cabin air filter

WW-2501 (driver side)

Windshield wiper blade
