Ford Police Interceptor Sedan (2018 year). Manual - part 41

Protected Components

Fuse Amp Rating

Fuse or Relay

Number

Powertrain control module run/start.

10A

2

90

Not used.

-

91

Anti-lock brake system module.

10A

2

92

Rear window defrost relay.

5A

2

93

Trunk release relay.

Passenger compartment fuse panel run/
start.

30A

1

94

Center console start feed.

2A

2

95

Not used.

-

96

Not used.

-

97

A/C clutch relay.

Relay

98

1

J-case fuses.

2

Mini fuses.

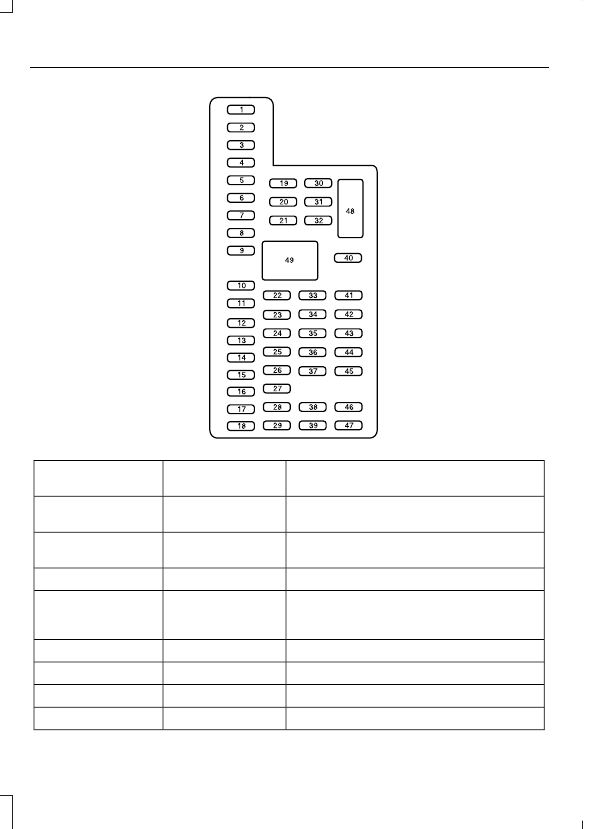

Passenger Compartment Fuse
Panel

The fuse panel is under the instrument
panel to the left of the steering wheel. You
may need to remove a trim panel to access
it.

E163102

Protected Components

Fuse Amp Rating

Fuse or Relay

Number

Left front and right rear smart window
motors.

30A

1

Driver seat switch.

15A

2

14-way B+ feed 3.

Not used (spare).

30A

3

Demand lamps battery saver relay.

10A

4

Glove box lamp.
Task lamp.

14-way B+ feed 1.

20A

5

Not used (spare).

5A

6

Not used (spare).

7.5A

7

Not used (spare).

10A

8

Protected Components

Fuse Amp Rating

Fuse or Relay

Number

SYNC module.

10A

9

Multi-function displays.
Electronic finish panel.
Radio frequency transceiver module.

Run accessory relay.

10A

10

Not used (spare).

10A

11

Backlighting LED.

15A

12

Interior lighting.
Backlighting feed.

Right-hand direction indicators.

15A

13

Right rear police fuse/relay box.

Left-hand direction indicators.

15A

14

Left rear police fuse/relay box.

Stop lamp.

15A

15

Backup lamp.

Right low beam.

10A

16

Left low beam.

10A

17

Brake-shift interlock.

10A

18

Powertrain control module wake-up.

Police B+ 8 access circuit center console.

20A

19

14-way B+ feed 2.

All lock motor relay and coil.

20A

20

Driver lock motor relay and coil.

Extended power module.

10A

21

Horn relay.

20A

22

Steering wheel control module logic

15A

23

Instrument cluster.

Steering wheel control module.

15A

24

Not used (spare).

15A

25

Ignition switch.

5A

26

Not used (spare).

20A

27

Protected Components

Fuse Amp Rating

Fuse or Relay

Number

Not used (spare).

15A

28

Radio.

20A

29

Global positioning system module.

Front park lamps.

15A

30

Brake signal for police equipment.

5A

31

Master window and mirror switch.

15A

32

Lock switch illumination.
Police console inline delayed accessory
feed.
Delayed accessory feed.

Not used (spare).

10A

33

Reverse park aid module.

10A

34

Blind spot monitor module.
Rear video camera.

Motorized humidity sensor.

5A

35

Overdrive cancel switch (Low gear switch
feed).
Column shift – low gear.

Not used (spare).

10A

36

Not used (spare).

10A

37

Auto–dimming mirror.

10A

38

Rear camera display mirror.

High beam headlamp shutters.

15A

39

Rear park lamps.

10A

40

Extended power module.

7.5A

41

Police 4-button steering wheel control
module.

5A

42

Not used (spare).

10A

43

Not used (spare).

10A

44

Not used (spare).

5A

45

Climate control module.

10A

46
