Ford Mustang (2018 year). Manual - part 54

Protected Components

Fuse Amp Rating

Fuse or Relay

Number

Electronic power assist steering.

5A

3

64

Not used.

—

65

Blind spot information system.

5A

3

66

Rear view camera.
Air conditioning compressor relay coils.
Vehicle dynamics module.

Not used.

—

67

Headlamp leveling switch.

10A

3

68

Auxiliary power point relay.

—

69

Heated exterior mirrors.

10A

3

70

Not used.

—

71

Rain sensor module.

5A

3

72

Not used.

—

73

Mass air flow sensor.

5A

3

74

Not used.

—

75

Rear window defroster relay.

—

76

Electronic cooling fan 2 relay.

—

77

Run/Start relay.

—

78

Not used.

—

79

Windshield wiper relay.

—

80

Starter motor solenoid relay.

—

81

Powertrain control module relay.

—

82

Not used.

—

83

Not used.

—

84

Not used.

—

85

Not used.

—

86

Protected Components

Fuse Amp Rating

Fuse or Relay

Number

Not used.

—

87

Not used.

—

88

Electronic fan 1 relay.

—

89

Differential pump relay.

—

90

Electronic fan 3 relay.

—

91

Blower motor relay.

—

92

Fuel pump #2 relay.

—

93

Fuel pump relay.

—

94

1

J-case fuses.

2

M-case fuses.

3

Micro fuses.

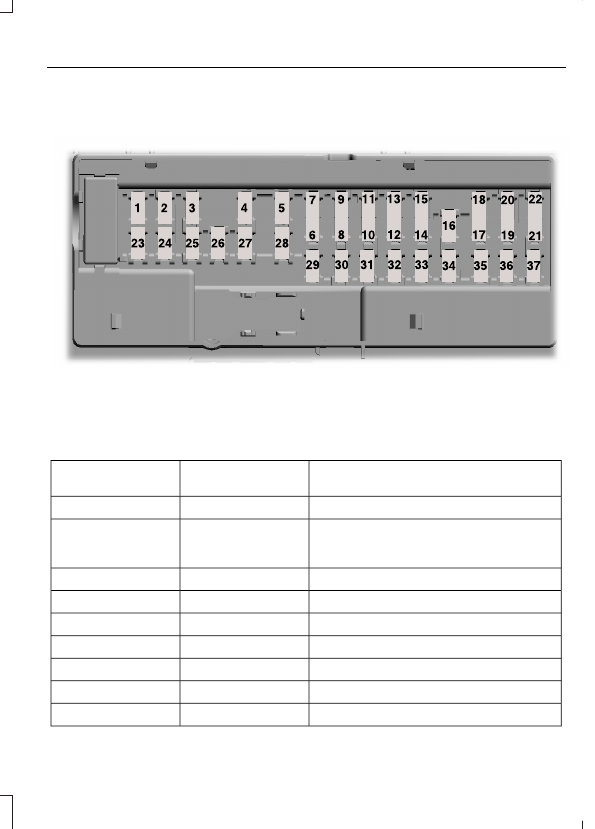

Passenger Compartment Fuse
Panel

The fuse panel is in the right-hand side of
the passenger footwell behind a trim panel
and plastic key code card.

To remove the trim panel, lift it from the
rear retaining hooks, while pulling it toward
you and swinging it away from the side. To
reinstall it, line up the tabs with the grooves
on the panel, drop the panel back into
place, and then push it shut.

To reach the fuse panel, first remove the
key code card.

After replacing a fuse, return the key code
card to the original position. To reinstall
the trim panel, lineup the tabs with the
grooves on the panel, drop the panel back
into place, and then push it shut to reinstall
the trim panel.

E174564

Protected Components

Fuse Amp Rating

Fuse or Relay

Number

Not used.

—

1

Power mirror memory module (driver side
mirror).

7.5A

2

Memory seat module.

Driver console unlock.

20A

3

Not used.

—

4

Subwoofer amplifier.

20A

5

Not used.

—

6

Not used.

—

7

Not used.

—

8

Not used.

—

9

Protected Components

Fuse Amp Rating

Fuse or Relay

Number

Telematics.

5A

10

Not used.

—

11

Climate control module.

7.5A

12

Gateway module.

7.5A

13

Steering column control module.
Instrument cluster.

Electronic power module.

10A

14

Gateway module.

10A

15

Decklid release.

15A

16

Battery backed sounder.

5A

17

Intrusion sensor module.

5A

18

Electronic power module.

7.5A

19

Headlamp control module.

7.5A

20

In-vehicle temperature and humidity
sensor.

5A

21

Front camera.

Not used (spare).

5A

22

Switches.

10A

23

Power windows.
Rear-view mirror.

Central lock/unlock.

20A

24

Vehicle dynamics module.

30A

25

Right-hand front-window motor (power
distribution module).

30A

26

Amplifier.

30A

27

Auxiliary body module.

20A

28

Left-hand rear-window power.

30A

29

Right-hand rear-window power.

30A

30

Not used.

—

31
