VEHICLE DIMENSIONS

E257130

Specification

Dimension

Item

187.5 in (4,763 mm)

Overall length.

A

78.9 in (2,004 mm)

Overall width excluding exterior mirrors.

B

83.2 in (2,113 mm)

Overall width with mirrors folded.

B

88.1 in (2,237.7 mm)

Overall width with mirrors extended.

B

43.7 in (1,109 mm)

Overall height without options (Normal drive

mode).

C

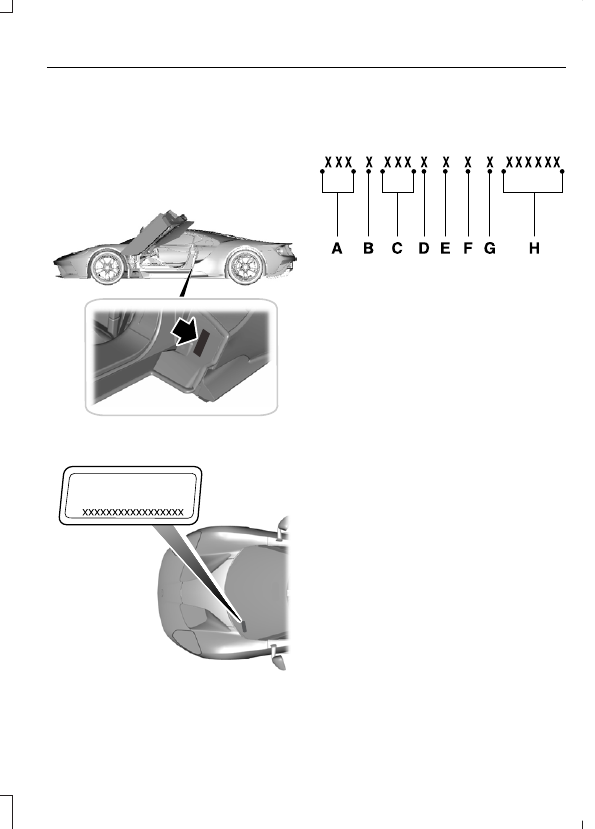

VEHICLE IDENTIFICATION
NUMBER

You can find the vehicle identification
number at the following locations.

On the vehicle certification label inside the
driver's door opening.

E227109

On the left-hand side of the instrument
panel.

E252123

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION
LABEL

E245288

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door latch,
next to the driver's seating position.

TRANSMISSION CODE
DESIGNATION

E167814

The transmission code is on the Safety
Compliance Certification Label. The
following table shows the transmission
code along with the transmission
description.

Code

Description

F

Seven-speed DCT transmission

CAPACITIES AND SPECIFICATIONS

Capacities

WARNING

The air conditioning refrigerant system contains refrigerant under high pressure.
Only qualified personnel should service the air conditioning refrigerant system.
Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

15.3 qt (14.5 L)

Engine oil with oil filter (dry fill capacity).

13.7 qt (13 L)

Engine oil with oil filter (oil change refill
capacity).

20.1 qt (19 L)

Engine coolant.

1.1 qt (1.04 L)

Brake fluid.

6.3 qt (6 L)

Hydraulic fluid (power steering, active
suspension, active aero).

4.1 qt (3.9 L)

Transmission fluid.

8.5 qt (8 L)

Wet Clutch fluid.

15.2 gal (57.54 L)

Fuel tank.

0.5 gal (1.89 L)

Windshield washer fluid.

1.5 lb (0.68 kg)

A/C Refrigerant.

4.7 fl oz (140 ml)

A/C Refrigerant Compressor Oil.
