Ford GT (2018 year). Manual - part 34

Jump Starting

1.

Start the engine of the booster vehicle
and rev the engine moderately, or press
the accelerator gently to keep your
engine speed between 2000 and 3000
RPM, as shown in your tachometer.

2. Start the engine of the disabled vehicle.

3. Once the disabled vehicle has been

started, run both vehicle engines for an
additional three minutes before
disconnecting the jumper cables.

Removing the Jumper Cables

Remove the jumper cables in the reverse
order that they were connected.

1.

Remove the jumper cable from the
negative (-) terminal of the booster
vehicle battery.

2. Remove the jumper cable from the

negative (A) post of the disabled
vehicle.

3. Remove the jumper cable from the

positive (+) terminal of the booster
vehicle battery.

4. Remove the jumper cable from the

positive (B) post of the disabled
vehicle.

5. Allow the engine to idle for at least one

minute.

POST-CRASH ALERT SYSTEM

The system flashes the direction indicators
and sounds the horn (intermittently) in the
event of a serious impact that deploys an
airbag (front and side) or the safety belt
pretensioners.

The horn and indicators will turn off when:
•

You press the hazard control button.

•

You press the panic button on the
remote entry transmitter (if equipped).

•

Your vehicle runs out of power.

TRANSPORTING THE VEHICLE

If you need to transport your vehicle,
please contact the Ford GT Concierge at
800-210-5795.

You can only transport your vehicle in an
enclosed trailer or on a roll back flatbed
truck. The ramp angle / angle of approach
on Ford GT is 9 degrees. Below are some
ramp lengths required to achieve this angle
depending on trailer / bed entrance height.

Ramp Length

Height

130 inches

20 inches

115 inches

18 inches

105 inches

16 inches

90 inches

14 inches

80 inches

12 inches

Your vehicle has a front end lift feature
that uses the electronically controlled
suspension hydraulics to lift the front of
the car. You can use this feature for
driveway approaches and speed bumps.
If there is power to this system, use it to lift
the front when loading the car onto a trailer
or a roll back. To operate the front lift, use
the switch in the console.

Note:  The ground clearance on the car at
standard ride height is only 5 in (12 cm). Use
care when moving or loading the car to
make sure it does not bottom out.

Note: The vehicle doors swing both upward
and outward. At the full open position, the
top edge of the door is 67 in (170 cm) from
the ground and swings outward 26 in
(66 cm). Make sure you have the clearance
you need prior to opening the door.

The full undertrays of the vehicle are
carbon fiber, there are no tie down slots.
Use only over the tire straps to tie the car
down for transport.

Getting the Transmission in
Neutral

If the battery loses charge, the
transmission will be in park (P). You can
use the transmission tool to place the car
into Neutral (N).  See Automatic
Transmission (page 106).

TOWING POINTS

Recovery Hook Location

Your vehicle comes with a screw-in
recovery hook, it is in the storage
compartment under the rear hatch.

Installing the Recovery Hook

Note:  The screw-in recovery hook has a
left-hand thread.  Turn it counterclockwise
to install it.  Make sure that the recovery
hook is fully tightened.

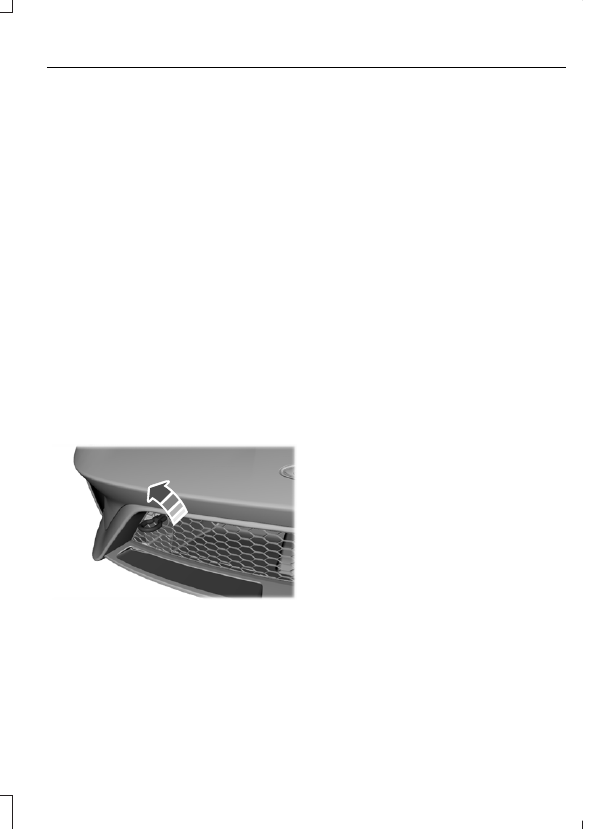

The installation point for the recovery hook
is the receptacle in the right corner of the
front grille.

E233260

GETTING THE SERVICES YOU
NEED

Warranty repairs to your vehicle must be
performed by an authorized dealer. If you
need assistance in identifying a Ford GT
Service Dealership or would like assistance
in scheduling a repair, please contact the
Ford GT Concierge.  See About This
Manual (page 5).

A reasonable time must be allowed to
perform a repair after taking your vehicle
to the authorized dealer. Repairs will be
made using Ford or Motorcraft® parts, or
remanufactured or other parts that are
authorized by Ford.

Away From Home

If you are away from home when your
vehicle needs service, contact the Ford GT
Concierge and they will arrange repairs at
the nearest Certified Ford GT Service
Dealership.

Website

www.owner.ford.com

These are some of the items that can be
found online:
•

Owner Manuals.

•

Maintenance Schedules.

•

Recalls.

•

Ford Genuine Accessories.

In Canada:

Website

www.ford.ca

Additional Assistance

If you have questions or concerns, or are
unsatisfied with the service you are
receiving, follow these steps:

1.

Contact your Ford GT Concierge or
Service Advisor at your selling or
servicing authorized dealer.

2. If your inquiry or concern remains

unresolved, contact the Sales Manager,
Service Manager or Customer Relations
Manager.

3. If you require assistance or clarification

on Ford Motor Company policies,
please contact the Ford Customer
Relationship Center.

In order to help us serve you better, please
have the following information available
when contacting a Customer Relationship
Center:
•

Vehicle Identification Number.

•

Your telephone number (home and
business).

•

The name of the authorized dealer and
city where located.

•

The vehicle’s current odometer reading.

In some states within the United States,
you must directly notify Ford in writing
before pursuing remedies under your
state's warranty laws, and Ford is also
allowed a final repair attempt.

Additionally, in some states within the
United States, a consumer has the option
of submitting a warranty dispute to the
BBB Auto Line before taking action under
the Magnuson-Moss Warranty Act, or to
the extent allowed by state law, before
pursuing replacement or repurchase

remedies provided by certain state laws.
This dispute handling procedure is not
required prior to enforcing state created
rights or other rights which are independent
of the Magnuson-Moss Warranty Act or
state replacement or repurchase laws.

IN CALIFORNIA (U.S. ONLY)

California Civil Code Section 1793.2(d)
requires that, if a manufacturer or its
representative is unable to repair a motor
vehicle to conform to the vehicle’s
applicable express warranty after a
reasonable number of attempts, the
manufacturer shall be required to either
replace the vehicle with one substantially
identical or repurchase the vehicle and
reimburse the buyer in an amount equal to
the actual price paid or payable by the
consumer (less a reasonable allowance
for consumer use). The consumer has the
right to choose whether to receive a refund
or replacement vehicle.

California Civil Code Section 1793.22(b)
presumes that the manufacturer has had
a reasonable number of attempts to
conform the vehicle to its applicable
express warranties if, within the first 18
months of ownership of a new vehicle or
the first 18,000 mi (29,000 km), whichever
occurs first:

1.

Two or more repair attempts are made
on the same non-conformity likely to
cause death or serious bodily injury OR

2. Four or more repair attempts are made

on the same nonconformity (a defect
or condition that substantially impairs
the use, value or safety of the vehicle)
OR

3. The vehicle is out of service for repair

of nonconformities for a total of more
than 30 calendar days (not necessarily
all at one time).

In the case of 1 or 2 above, the consumer
must also notify the manufacturer of the
need for the repair of the nonconformity
at the following address:

Ford Motor Company
16800 Executive Plaza Drive
Mail Drop 3NE-B
Dearborn, MI 48126

You are required to submit your warranty
dispute to BBB AUTO LINE before asserting
in court any rights or remedies conferred
by California Civil Code Section 1793.22(b).
You are also required to use BBB AUTO
LINE before exercising rights or seeking
remedies created by the Federal
Magnuson-Moss Warranty Act, 15 U.S.C.
sec. 2301 et seq. If you choose to seek
redress by pursuing rights and remedies
not created by California Civil Code Section
1793.22(b) or the Magnuson-Moss
Warranty Act, resort to BBB AUTO LINE is
not required by those statutes.

THE BETTER BUSINESS
BUREAU (BBB) AUTO LINE
PROGRAM (U.S. ONLY)

Your satisfaction is important to Ford
Motor Company and to your dealer. If a
warranty concern has not been resolved
using the three-step procedure outlined
earlier in this chapter in the Getting the
Services you need section, you may be
eligible to participate in the BBB AUTO
LINE program.

The BBB AUTO LINE program consists of
two parts – mediation and arbitration.
During mediation, a representative of the
BBB will contact both you and Ford Motor
Company to explore options for settlement
of the claim. If an agreement is not reached
during mediation or you do not want to
participate in mediation, and if your claim
is eligible, you may participate in the
