E119081

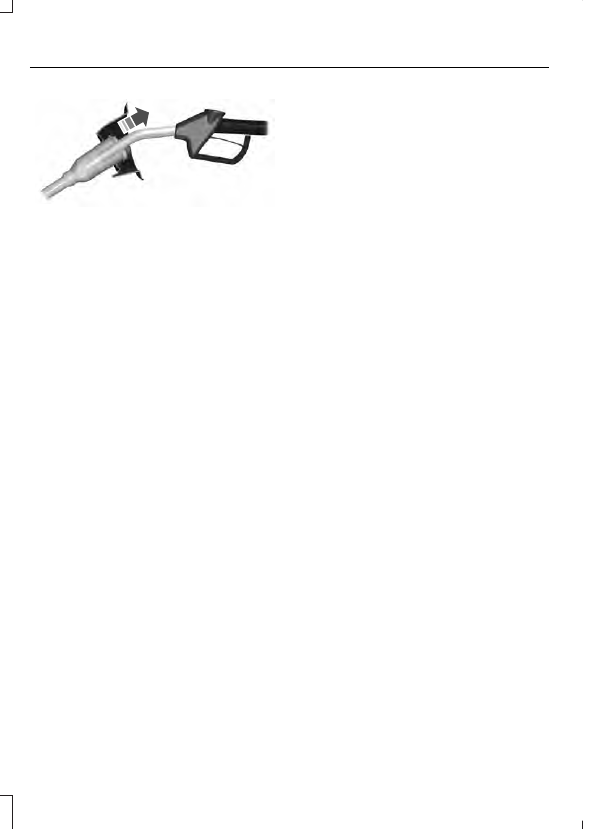

5. Slightly raise the fuel pump nozzle and

then slowly remove it.

6. Fully close the fuel tank filler door.

Note:  Do not attempt to start the engine
if you have filled the fuel tank with incorrect
fuel.  Incorrect fuel use can cause damage
not covered by the vehicle Warranty.  Have
your vehicle checked immediately.

System Warnings

 (If Equipped)

If the fuel filler inlet does not fully close a
warning message appears in the
information display.

1.

Stop your vehicle as soon as it is safe
to do so and switch the engine off.

2. Shift into park (P) or neutral (N).  Apply

the parking brake.

3. Fully open the fuel filler door.

4. Check the fuel filler inlet and the area

around it for any items or debris that
may be obstructing its movement.

5. Fully insert a fuel pump nozzle or the

fuel filler funnel provided with your
vehicle into the fuel filler inlet.  This
action should dislodge any debris that
may be preventing the fuel filler inlet
from fully closing.

6. Fully close the fuel filler door.

Note: If this action corrects the problem
the message may not immediately reset. If
the message remains and a warning lamp
illuminates, have your vehicle checked as
soon as possible.

FUEL CONSUMPTION

The advertised capacity is the indicated
capacity and the empty reserve combined.
Indicated capacity is the difference in the
amount of fuel in the fuel tank and when
the fuel gauge indicates empty.

See Capacities and Specifications
(page 204).

Note: The amount of fuel in the empty
reserve varies and should not be relied upon
to increase driving range.

Note: When refueling your vehicle after the
fuel gauge indicates empty, you might not
be able to refuel the full amount of the
advertised capacity due to the empty
reserve still present in the fuel tank.

Filling the Fuel Tank

For consistent results when refueling:
•

Always switch the ignition off before
refueling.  If you leave the engine
running, you will get an inaccurate
reading.

•

Use the same fill rate each time you fill
the tank.

Results are most accurate when the filling
method is consistent.

Calculating Fuel Economy

Do not measure fuel economy during the
first 1,000 mi (1,600 km) of driving (this is
your engine’s break-in period). A more
accurate measurement is obtained after
2,000 mi (3,200 km) to 3,000 mi
(4,800 km). Also, fuel expense, frequency
of fill ups or fuel gauge readings are not
accurate ways to measure fuel economy.

1.

Fill the fuel tank completely and record
the initial odometer reading.

2. Each time you fill the fuel tank, record

the amount of fuel added.

3. After at least three fill ups, fill the fuel

tank and record the current odometer
reading.

4. Subtract your initial odometer reading

from the current odometer reading.

5. To calculate L/100 km (liters per 100

kilometers) fuel consumption, multiply
the liters used by 100, then divide by
kilometers traveled. To calculate MPG
(miles per gallon) fuel consumption,
divide miles traveled by gallons used.

Keep a record for at least one month and
record the type of driving (city or highway).
This provides an accurate estimate of your
vehicle's fuel economy under current
driving conditions.

Conditions

•

Heavily loading your vehicle reduces
fuel economy.

•

Carrying unnecessary weight in your
vehicle may reduce fuel economy.

•

Adding certain accessories to your
vehicle may reduce fuel economy.

•

Using fuel blended with alcohol may
lower fuel economy.

•

Fuel economy may decrease with lower
temperatures.

•

Fuel economy may decrease when
driving short distances.

•

You will get better fuel economy when
driving on flat terrain than when driving
on hilly terrain.

EMISSION CONTROL SYSTEM

WARNINGS

Do not park, idle, or drive your vehicle
in dry grass or other dry ground cover.
The emission system heats up the

engine compartment and exhaust system,
which can start a fire.

WARNINGS

Exhaust leaks may result in entry of
harmful and potentially lethal fumes
into the passenger compartment. If

you smell exhaust fumes inside your
vehicle, have your dealer inspect your
vehicle immediately. Do not drive if you
smell exhaust fumes.

Your vehicle is equipped with various
emission control components and a
catalytic converter that will enable your
vehicle to comply with applicable exhaust
emission standards.

To make sure that the catalytic converter
and other emission control components
continue to work properly:
•

Use only the specified fuel listed.

•

Avoid running out of fuel.

•

Do not turn off the ignition while your
vehicle is moving, especially at high
speeds.

•

Have the items listed in scheduled
maintenance information performed
according to the specified schedule.

The scheduled maintenance items listed
in scheduled maintenance information are
essential to the life and performance of
your vehicle and to its emissions system.

If you use anything other than Ford,
Motorcraft or Ford-authorized parts for
maintenance replacements or for service
of components affecting emission control,
such non-Ford parts should be equivalent
to genuine Ford Motor Company parts in
performance and durability.

Illumination of the service engine soon
indicator, charging system warning light or
the temperature warning light, fluid leaks,
strange odors, smoke or loss of engine
power could indicate that the emission
control system is not working properly.

An improperly operating or damaged
exhaust system may allow exhaust to
enter the vehicle. Have a damaged or
improperly operating exhaust system
inspected and repaired immediately.

Do not make any unauthorized changes to
your vehicle or engine. By law, vehicle
owners and anyone who manufactures,
repairs, services, sells, leases, trades
vehicles, or supervises a fleet of vehicles
are not permitted to intentionally remove
an emission control device or prevent it
from working. Information about your
vehicle’s emission system is on the Vehicle
Emission Control Information Decal
located on or near the engine. This decal
also lists engine displacement.

Please consult your warranty information
for complete details.

On-Board Diagnostics (OBD-II)

Your vehicle has a computer known as the
on-board diagnostics system (OBD-II) that
monitors the engine’s emission control
system. The system protects the
environment by making sure that your
vehicle continues to meet government
emission standards. The OBD-II system
also assists a service technician in properly
servicing your vehicle.

When the service engine soon
indicator illuminates, the OBD-II
system has detected a

malfunction. Temporary malfunctions may
cause the service engine soon indicator to
illuminate. Examples are:

1.

Your vehicle has run out of fuel—the
engine may misfire or run poorly.

2. Poor fuel quality or water in the

fuel—the engine may misfire or run
poorly.

3. The fuel fill inlet may not have closed

properly.  See Refueling (page 96).

4. Driving through deep water—the

electrical system may be wet.

You can correct these temporary
malfunctions by filling the fuel tank with
good quality fuel, properly closing the fuel
fill inlet or letting the electrical system dry
out. After three driving cycles without these
or any other temporary malfunctions
present, the service engine soon indicator
should stay off the next time you start the
engine. A driving cycle consists of a cold
engine startup followed by mixed city and
highway driving. No additional vehicle
service is required.

If the service engine soon indicator remains
on, have your vehicle serviced at the first
available opportunity. Although some
malfunctions detected by the OBD-II may
not have symptoms that are apparent,
continued driving with the service engine
soon indicator on can result in increased
emissions, lower fuel economy, reduced
engine and transmission smoothness and
lead to more costly repairs.

Readiness for Inspection and
Maintenance (I/M) Testing

Some state and provincial and local
governments may have
Inspection/Maintenance (I/M) programs
to inspect the emission control equipment
on your vehicle. Failure to pass this
inspection could prevent you from getting
a vehicle registration.

If the service engine soon
indicator is on or the bulb does
not work, your vehicle may need

service. See On-Board Diagnostics.

Your vehicle may not pass the I/M test if
the service engine soon indicator is on or
not working properly (bulb is burned out),
or if the OBD-II system has determined
that some of the emission control systems
have not been properly checked. In this
case, the vehicle is not ready for I/M
testing.

If the vehicle’s engine or transmission has
just been serviced, or the battery has
recently run down or been replaced, the
OBD-II system may indicate that the
vehicle is not ready for I/M testing. To
determine if the vehicle is ready for I/M
testing, turn the ignition key to the on
position for 15 seconds without cranking
the engine. If the service engine soon
indicator blinks eight times, it means that
the vehicle is not ready for I/M testing; if
the service engine soon indicator stays on
solid, it means that your vehicle is ready
for I/M testing.

The OBD-II system checks the emission
control system during normal driving. A
complete check may take several days.

If the vehicle is not ready for I/M testing,
you can perform the following driving cycle
consisting of mixed city and highway
driving:

1.

15 minutes of steady driving on an
expressway or highway followed by 20
minutes of stop-and-go driving with at
least four 30-second idle periods.

2. Allow your vehicle to sit for at least

eight hours with the ignition off. Then,
start the vehicle and complete the
above driving cycle. The vehicle must
warm up to its normal operating
temperature. Once started, do not turn
off the vehicle until the above driving
cycle is complete.

If the vehicle is still not ready for I/M
testing, you need to repeat the above
driving cycle.
