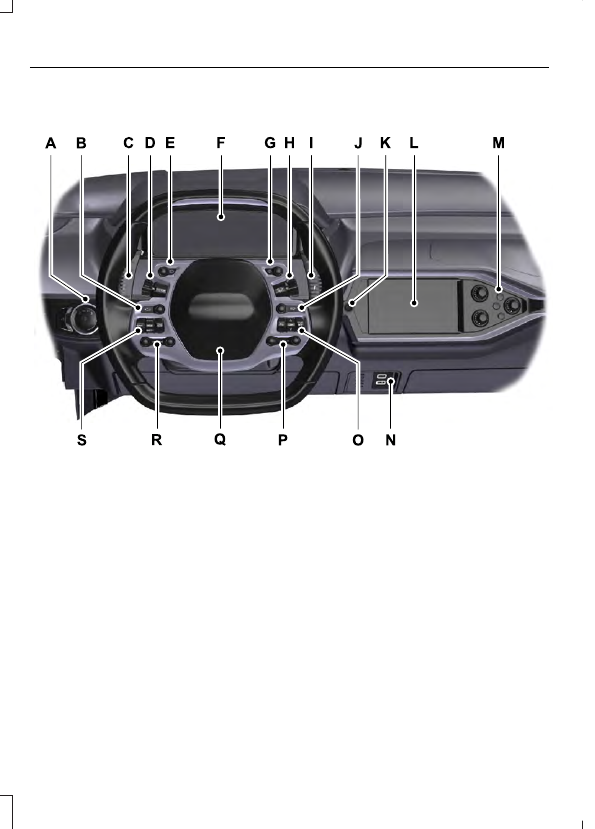

INSTRUMENT PANEL OVERVIEW

E243664

Lighting control. See Lighting Control (page 58).

A

Left direction indicator.  See Direction Indicators (page 60).

B

Left paddle shifter.  See Automatic Transmission (page 106).

C

Drive mode control.  See Drive Mode Control (page 122).

D

High beam switch.  See Lighting Control (page 58).

E

Instrument cluster. See Gauges (page 63).

F

Windshield washers.  See Windshield Washers (page 57).

G

Windshield wipers. See Windshield Wipers (page 57).

H

Right paddle shifter.  See Automatic Transmission (page 106).

I

Right direction indicator.  See Direction Indicators (page 60).

J

Audio on and off button.  See Audio Unit (page 212).

K

SYNC 3.  See General Information (page 213).

L

Climate controls.  See Automatic Climate Control (page 81).  See Manual
Climate Control (page 80).

M

Media hub.  See USB Port (page 212).

N

Menu and voice control.  See Voice Control (page 53).

O

Audio control. See Audio Control (page 53).

P

Horn.

Q

Audio control. See Audio Control (page 53).

R

Cruise control.  See Using Cruise Control (page 121).

S

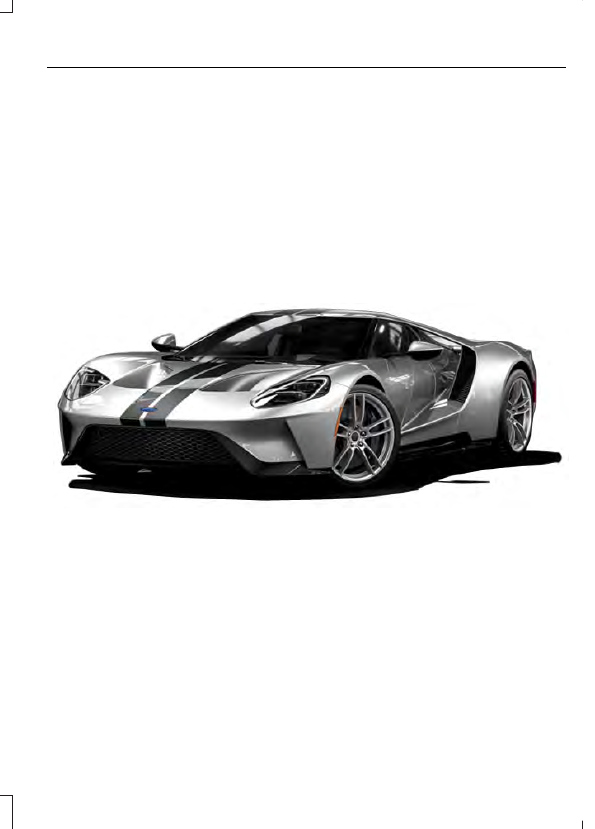

UNIQUE FEATURES

E236793

Vehicle Structure
•

Carbon fiber tub and body shell.

•

Aluminum structure fore and aft of tub.

•

Steel roll cage integrated into the tub.

Powertrain
•

Mid-engine 3.5L Twin Turbo EcoBoost
V6.

•

7-speed dual clutch automated
manual transmission.

Chassis
•

Electronic/hydraulic controlled torsion
bar front and rear suspension systems
with ride height varied depending on
drive mode.

•

Front end lift feature for driveway
approaches and speed bumps.

•

Independent front and rear suspension
with unequal length upper and lower
control arms.

•

Carbon ceramic brake discs.

•

Brembo 6-piston front and 4-piston
rear calipers.

•

20 in. x 8.5 in. forged alloy front wheels
with 245/35R20 Michelin Pilot Sport
Cup 2 tires.

•

20 in. x 11.5 in. forged alloy rear wheels
with 325/30R20 Michelin Pilot Sport
Cup 2 tires.

•

Carbon fiber wheels available as an
option.

Electronics and Vehicle Controls
•

Vehicle drive mode control with five
settings.

•

Full LCD instrument cluster with
customer selectable features.

•

Race inspired steering wheel with
stalkless steering column.

•

Paddle shifters.

•

SYNC 3 including navigation system.

•

Single zone automatic temperature
control.

•

ABS, ESC (electronic stability control)
and launch control.

•

Passive entry/passive start key system.

Exterior
•

Carbon fiber body panels including
undertrays.

•

Active aerodynamic rear wing and front
splitter.

•

LED headlamps and tail lamps.

Interior
•

Fixed seating positions.

•

Independently adjustable steering
column and pedals.

•

Carbon fiber, leather, and Alcantara
interior surfaces.

GENERAL INFORMATION

See the following sections for directions
on how to properly use safety restraints
for children.

WARNINGS

Always make sure your child is
secured properly in a device that is
appropriate for their height, age and

weight. Child safety restraints must be
bought separately from your vehicle.
Failure to follow these instructions and
guidelines may result in an increased risk
of serious injury or death to your child.

All children are shaped differently.
The recommendations for safety
restraints are based on probable

child height, age and weight thresholds
from the National Highway Traffic Safety
Administration and other safety
organizations, or are the minimum
requirements of law. We recommend
checking with a NHTSA Certified Child

WARNINGS

Passenger Safety Technician (CPST) and
consult your pediatrician to make sure your
child seat is appropriate for your child, and
is compatible with and properly installed
in your vehicle. To locate a child seat fitting
station and CPST, contact NHTSA toll free
at 1-888-327-4236 or go to
http://www.nhtsa.dot.gov. In Canada,
contact Transport Canada toll free at
1-800-333-0371 or go to www.tc.gc.ca to
find a Child Car Seat Clinic in your area.
Failure to properly restrain children in
safety seats made especially for their
height, age, and weight may result in an
increased risk of serious injury or death to
your child.

On hot days, the temperature inside
the vehicle can rise very quickly.
Exposure of people or animals to

these high temperatures for even a short
time can cause death or serious heat
related injuries, including brain damage.
Small children are particularly at risk.
