Ford part number /

Ford specification

Ford part name or

equivalent

Capacity

Item

/ WSH-M1C231-A

1

Use only Motorcraft DOT 4 LV High Performance Brake Fluid, or equivalent, meeting

WSS-M6C65-A2 and ISO 4925 Class 6. Use of any fluid other than the recommended
fluid may cause brake system damage.

2

Approximate dry fill capacity. Actual amount may vary during fluid changes.

3

Automatic transmissions that require Motorcraft MERCON LV transmission fluid should

only use Motorcraft MERCON LV transmission fluid.

Use of any fluid other than the recommended fluid may cause transmission damage.

Change the automatic transmission fluid and filter at the correct service interval.  See
Scheduled Maintenance (page 426).

4

See your authorized dealer for fluid level checking or filling.

5

Your engine has been designed to use Motorcraft engine oils or equivalent oils that meet

Ford specifications. It is also acceptable to use an engine oil of recommended viscosity
grade that meets API SN requirements and displays the API Certification Mark for gasoline
engines.

6

Do not use supplemental engine oil additives in your engine. They are unnecessary and

could lead to engine damage that is not covered by your Ford warranty.

7

Add the coolant type originally equipped in your vehicle.

8

WARNING

The A/C refrigerant system contains refrigerant R-134a under high pressure. Opening
the A/C refrigerant system can cause personal injury. A/C refrigerant system should
be serviced only by qualified personnel.

291

Capacities and Specifications

GENERAL INFORMATION

Radio Frequencies and Reception
Factors

AM and FM frequencies are established by
the Federal Communications Commission
(FCC) and the Canadian Radio and
Telecommunications Commission (CRTC).
Those frequencies are:

•

AM: 530, 540-1700, 1710 kHz

•

FM: 87.9-107.7, 107.9 MHz

Radio Reception Factors

The further you travel from an FM station, the weaker the
signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating
tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

CD and CD Player Information

Note: CD units play commercially pressed
4.75-inch (12 centimeter) audio compact
discs only. Due to technical incompatibility,
certain recordable and re-recordable
compact discs may not function correctly
when used in Ford CD players.

Note: Do not insert CDs with homemade
paper (adhesive) labels into the CD player
as the label may peel and cause the CD to
become jammed. You should use a
permanent felt tip marker rather than
adhesive labels on your homemade CDs.
Ballpoint pens may damage CDs. Please
contact an authorized dealer for further
information.

Note: Do not use any irregularly shaped
discs or discs with a scratch protection film
attached.

Always handle discs by their edges only.
Clean the disc with an approved CD
cleaner only. Wipe it from the center of the
disc toward the edge. Do not clean in a
circular motion.

Do not expose discs to direct sunlight or
heat sources for extended periods.

MP3 Track and Folder Structure

Audio systems capable of recognizing and
playing MP3 individual tracks and folder
structures work as follows:

•

There are two different modes for MP3
disc playback: MP3 track mode
(system default) and MP3 folder
mode.

•

MP3 track mode ignores any folder
structure on the MP3 disc. The player
numbers each MP3 track on the disc
(noted by the .mp3 file extension) from
T001 to a maximum of T255. The
maximum number of playable MP3
files may be less depending on the
structure of the CD and exact model
of radio present.

292

Audio System

•

MP3 folder mode represents a folder
structure consisting of one level of
folders. The CD player numbers all MP3
tracks on the disc (noted by the .mp3
file extension) and all folders
containing MP3 files, from F001
(folder) T001 (track) to F253 T255.

•

Creating discs with only one level of
folders helps with navigation through
the disc files.

If you are burning your own MP3 discs, it is
important to understand how the system
reads the structures you create. While
various files may be present, (files with
extensions other than mp3), only files with
the .mp3 extension are played; other files
are ignored by the system. This enables
you to use the same MP3 disc for a variety
of tasks on your work computer, home
computer and your in-vehicle system.

In track mode, the system displays and
plays the structure as if it were only one
level deep (all .mp3 files play, regardless
of being in a specific folder). In folder
mode, the system only plays the .mp3 files
in the current folder.

AUDIO UNIT - VEHICLES WITH:
AM/FM/CD/SYNC/SATELLITE
RADIO

WARNING

Driving while distracted can result in
loss of vehicle control, crash and
injury. We strongly recommend that

you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Note: Depending on your vehicle option
package, your system may look different
from what you see here.

Note: Some features, such as SIRIUS
satellite radio, may not be available in your
location. Check with an authorized dealer.

E144488

293

Audio System

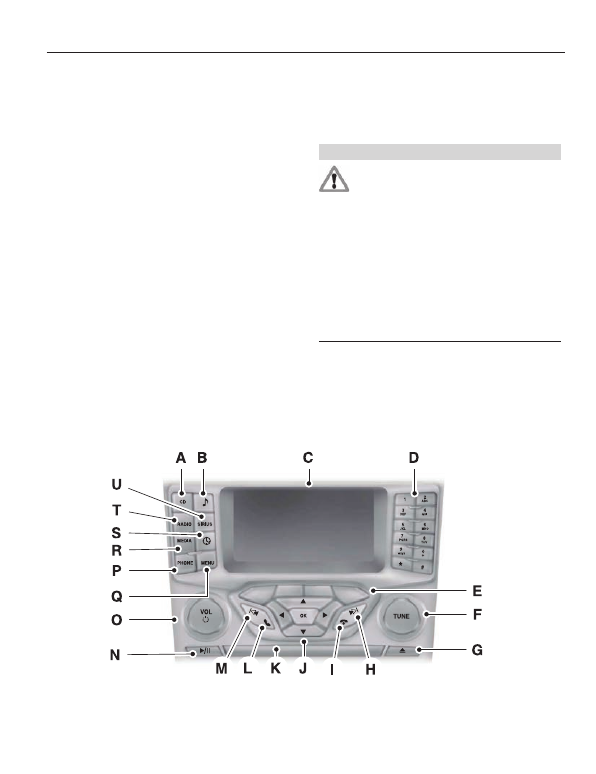

CD: Press this button to listen to a CD. Press the function buttons below the
radio screen to select on-screen options of Repeat or Shuffle.

A

SOUND: Press this button to access settings for Treble, Middle, Bass, Fade
and Balance. Use the up and down arrow buttons to select the various settings.
When you make your selection, press the left and right arrow buttons to change
the settings. Press OK to set or press MENU to exit. Sound settings can be set
for each audio source independently.

B

Display screen: Shows audio and SYNC information.

C

Number block: In radio mode, store your favorite stations for later access.
When tuned to any station, press and hold a preset button until sound returns.
In CD mode, press a button to select a track. In phone mode, press the buttons
to enter a phone number.

D

Function buttons: Select different functions of the audio system depending
on which mode you are in (such as Radio mode or CD mode).

E

TUNE: Turn to search the frequency band in individual increments.

F

Eject: Press this button to eject a CD.

G

Seek: In radio mode, select a frequency band and press this button. The system
stops at the first station up the band. Press and hold the button to move quickly
to the next strong radio station or memory preset. In CD mode, press this button
to select the next track. Press and hold the button to move quickly forward
through the current track.

H

End phone call: Press this button to end a phone call.

I

Cursor arrows and OK: Use the up and down arrow buttons to select the
various settings. When you make your selection, press the left and right arrow
buttons to change the settings. Press OK to set or press MENU to exit.

J

CD slot: Insert a CD.

K

Pick-up or Make phone call: Press this button to either pick-up an incoming
phone call or to make a phone call.

L

Seek: In radio mode, select a frequency band and press this button. The system
stops at the first station down the band. Press and hold the button to move
quickly to the previous strong radio station or memory preset. In CD mode, press
this button to select the previous track. Press and hold the button to move
quickly backward through the current track.

M

Play/Pause: Press to either play or pause a track when listening to a CD.

N

VOL and Power: Press this button to turn the system off and on. Turn it to
adjust the volume.

O

PHONE: Press this button to access the phone features of the SYNC® system.
See SYNC™ (page 312).

P

MENU: Press this button to access different audio system features. See Menu
Structure later in this section.

Q
