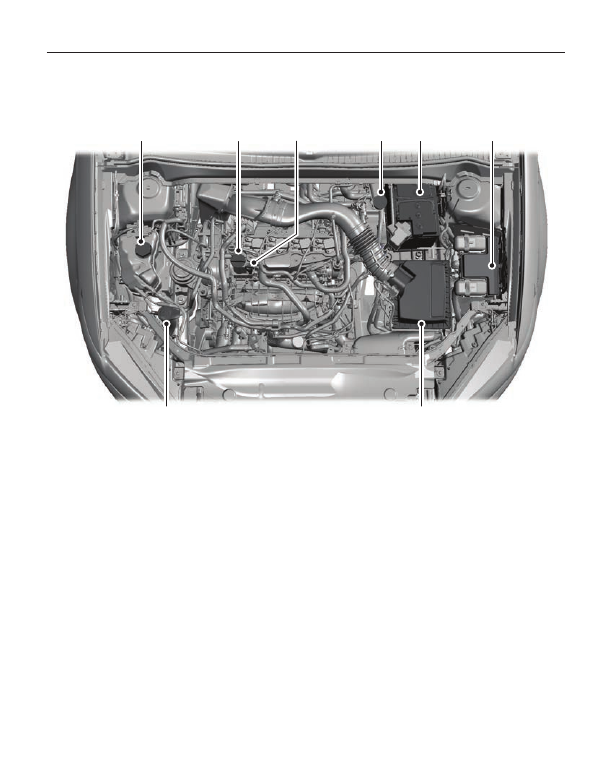

UNDER HOOD OVERVIEW - 1.6L ECOBOOST™/1.5L ECOBOOST™

E167624

A

B

C

D

E

F

H

G

Engine coolant reservoir

A

Engine oil filler cap

B

Engine oil dipstick

C

Brake fluid reservoir cap

D

Battery

E

Power distribution box

F

Engine air filter assembly

G

Windshield washer fluid reservoir cap

H

235

Maintenance

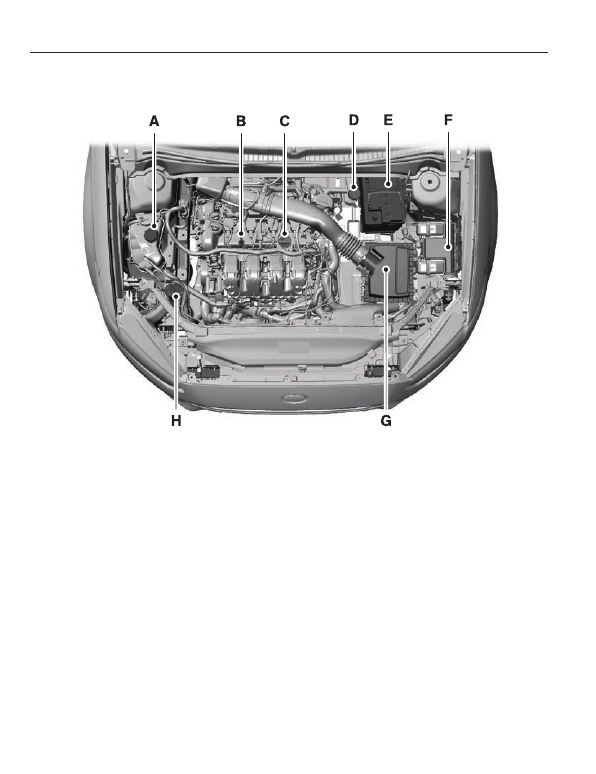

UNDER HOOD OVERVIEW - 2.0L ECOBOOST™

E159754

Engine coolant reservoir cap

A

Engine oil dipstick

B

Engine oil filler cap

C

Brake fluid reservoir cap

D

Battery

E

Power distribution box

F

Engine air filter assembly

G

Windshield washer fluid reservoir cap

H

236

Maintenance

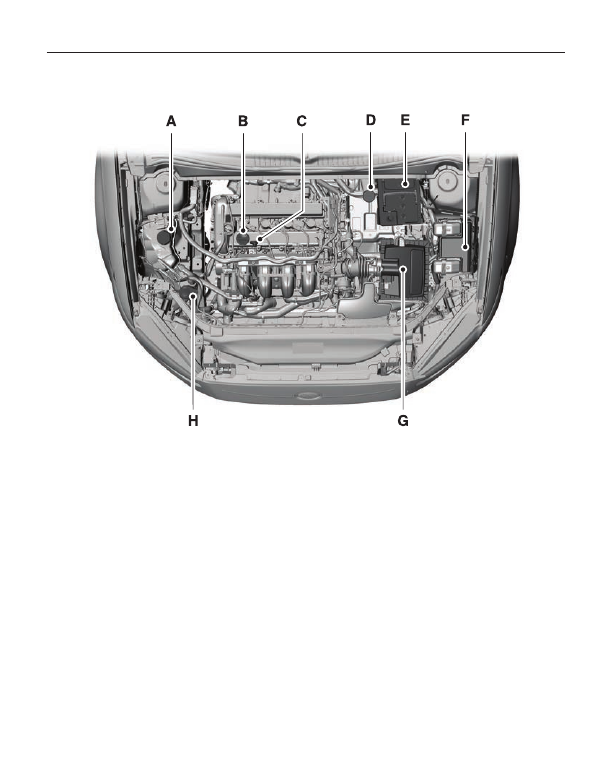

UNDER HOOD OVERVIEW - 2.5L

E169801

A. Engine coolant reservoir cap

B. Engine oil filler cap

C. Engine oil dipstick

D. Brake fluid reservoir cap

E. Battery

F.

Power distribution box

G. Air filter housing cover

H. Windshield washer fluid reservoir cap

237

Maintenance

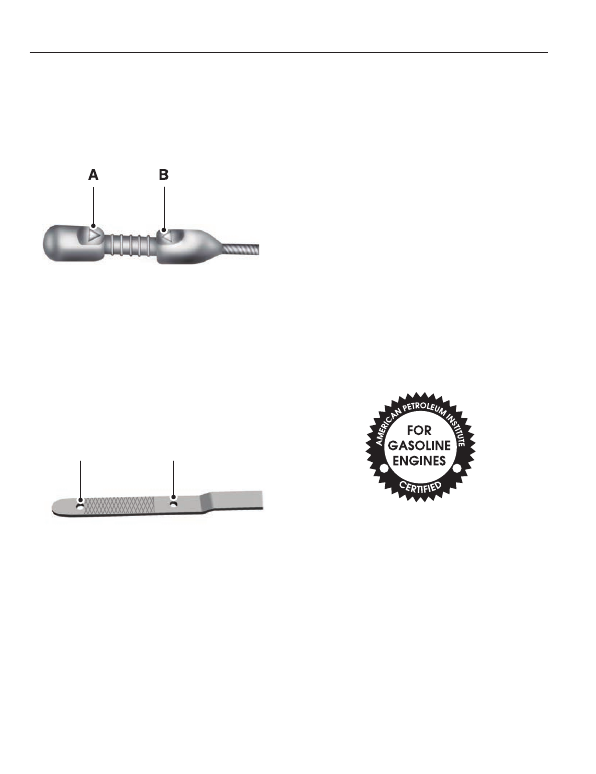

ENGINE OIL DIPSTICK - 1.6L
ECOBOOST™/1.5L
ECOBOOST™

E146020

MIN

A

MAX

B

ENGINE OIL DIPSTICK - 2.0L
ECOBOOST™/2.5L

A

B

E169062

MIN

A

MAX

B

ENGINE OIL CHECK

Note: Check the level before starting the
engine.

Note: Make sure that the level is between
the MIN and the MAX marks.

1.

Make sure that your vehicle is on level
ground.

2. Turn the engine off and wait 10 minutes

for the oil to drain into the oil pan.

3. Remove the dipstick and wipe it with

a clean, lint-free cloth. Replace the
dipstick and remove it again to check
the oil level.

If the level is at the MIN mark, add oil
immediately.

Adding Engine Oil

Note: Do not remove the filler cap when
the engine is running.

Note: Do not add oil further than the MAX
mark. Oil levels above the MAX mark may
cause engine damage.

E142732

Only use oils certified for gasoline engines
by the American Petroleum Institute (API).
An oil with this trademark symbol
conforms to the current engine and
emission system protection standards and
fuel economy requirements of the
International Lubricants Specification
Advisory Council (ILSAC), comprised of
U.S. and Japanese automobile
manufacturers.
