Ford Fusion (2018 year). Manual - part 77

E145950

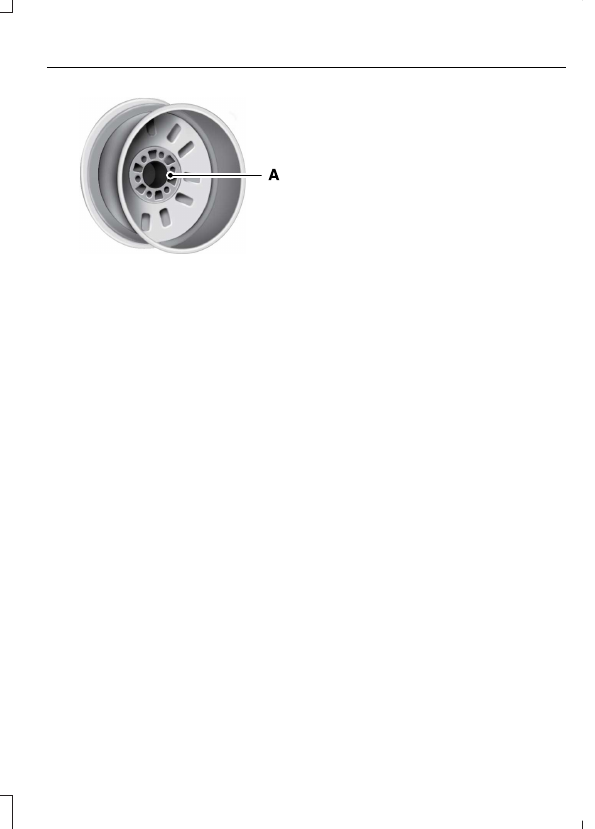

Wheel pilot bore.

A

Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.

ENGINE SPECIFICATIONS - 1.5L ECOBOOST™

Specification

Measurement

92

Cubic inches

1-3-4-2

Firing order

10.0:1

Compression ratio

0.025-0.029 in. (0.65-0.75 mm)

Spark plug gap

Coil on plug

Ignition system

Drivebelt Routing

E167586

ENGINE SPECIFICATIONS - 2.0L ECOBOOST™

Specification

Measurement

122

Cubic inches

1-3-4-2

Firing order

9.3:1

Compression ratio

0.027-0.031 in. (0.70-0.80 mm)

Spark plug gap

Coil on plug

Ignition system

Drivebelt Routing

E161383

A

B

A. Long drivebelt is on first pulley groove

closest to engine

B. Short drivebelt is on second pulley

groove farthest from engine

ENGINE SPECIFICATIONS - 2.5L

Specification

Measurement

152

Cubic inches

1-3-4-2

Firing order

9.7:1

Compression ratio

0.049-0.053 in. (1.25-1.35 mm)

Spark plug gap

Coil on plug

Ignition system

Drivebelt Routing

E161383

A

B

A. Long drivebelt is on first pulley groove

closest to engine

B. Short drivebelt is on second pulley

groove farthest from engine

ENGINE SPECIFICATIONS - 2.7L ECOBOOST™

Specification

Measurement

164

Cubic inches

1-4-2-5-3-6

Firing order

10.0:1

Compression ratio

0.028–0.031 in (0.7–0.8 mm)

Spark plug gap

Coil in plug

Ignition system

Drivebelt Routing

E176088

MOTORCRAFT PARTS - 1.5L ECOBOOST™

Motorcraft Part number

Component

FA-1912

Air filter element

FL-910S

Oil filter

BAGM-48H6-760

Battery

SP-539

Spark plugs

FP-71

Cabin air filter

WW-2601 (driver side)

Windshield wiper blade
