5. Locate the vertical adjuster on each

headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise or counterclockwise in order
to adjust the vertical aim of the
headlamp. The horizontal edge of the
brighter light should touch the
horizontal reference line.

6. Close the hood and turn off the lamps.

Horizontal Aim Adjustment

Horizontal aim is not required for this
vehicle and is not adjustable.

CHANGING A BULB

WARNINGS

Switch the lamps and the ignition off.
Failure to follow this warning could
result in serious personal injury.

Bulbs become hot when in use. Let
them cool down before you remove
them.

Use the correct specification bulb. See
Bulb Specification Chart (page 273).

Install in the reverse order unless otherwise
stated.

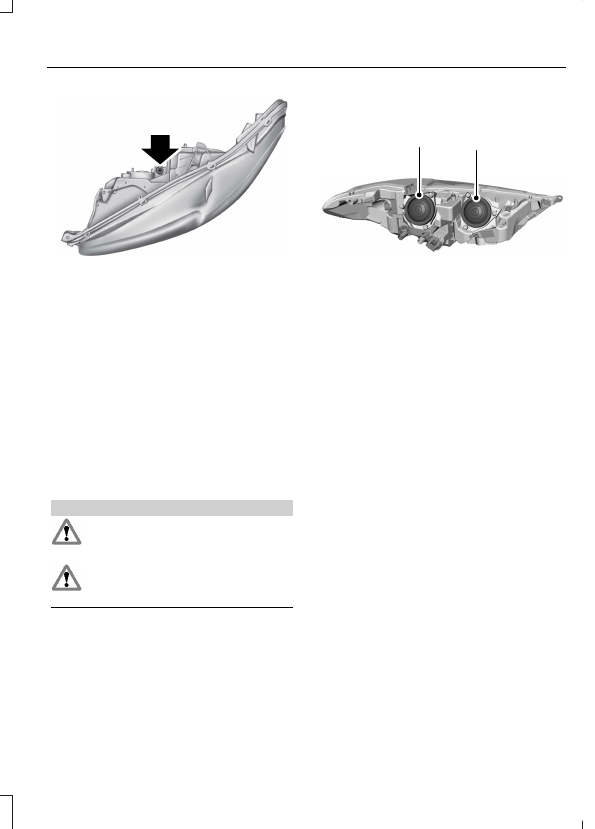

Headlamp

E222975

Headlamp high beam.

Headlamp low beam.

Note: LED headlamps are not serviceable.
Have your vehicle checked as soon as
possible.

Headlamp Low Beam

Carefully remove the cover.

2. Disconnect the electrical connector.

3. Turn the bulb holder counterclockwise

and remove it.

Note: Do not touch the bulb glass.

Note: You cannot separate the bulb from
the bulb holder.

Headlamp High Beam

Carefully remove the cover.

2. Disconnect the electrical connector.

3. Turn the bulb holder counterclockwise

and remove it.

Note: Do not touch the bulb glass.

Note: You cannot separate the bulb from
the bulb holder.

LED Lamps

LED lamps are not serviceable. Have your
vehicle checked as soon as possible.

The following lamps are LED:
•

Front side marker lamps.

•

Front direction indicators.

•

Daytime running lamps.

•

Side direction indicators.

•

Central high mounted brake lamp.

•

Rear direction indicators.

•

Brake and rear lamps.

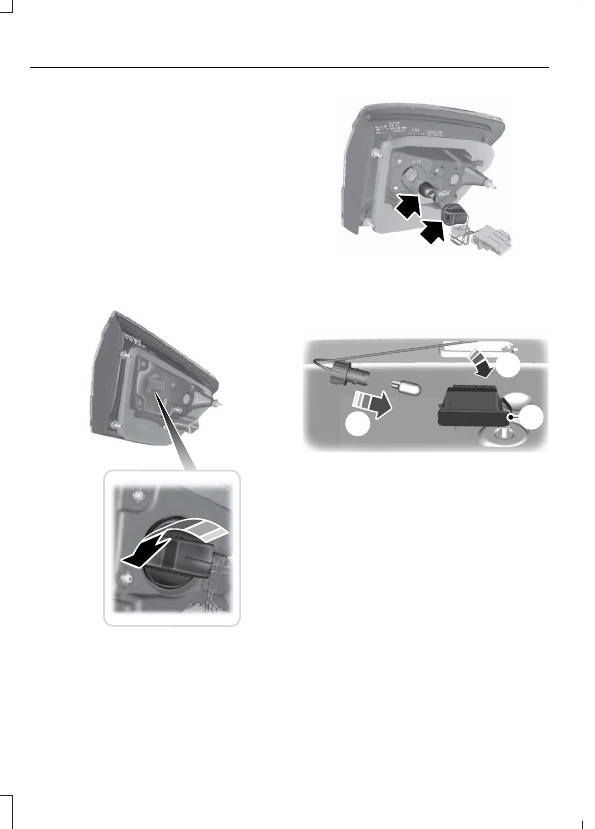

Reversing Lamp

Carefully remove the luggage
compartment trim panel.

E145779

2. Turn the bulb holder counterclockwise

and remove it.

E145780

3. Press the bulb in and turn the bulb

counterclockwise to remove it.

License Plate Lamp

E72789

Use a suitable tool, for example a
screwdriver, to carefully remove the
lamp.

2. Remove the lamp.

3. Turn the bulb holder counterclockwise

and remove it.

4. Remove the bulb by pulling it straight

out.

BULB SPECIFICATION CHART

Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized “D.O.T.” for

North America to make sure they have the
proper lamp performance, light brightness,
light pattern, and safe visibility. The correct
bulbs will not damage the lamp assembly
or void the lamp assembly warranty and
will provide quality bulb illumination time.

Trade name

Function

H7LL

*Headlamp high beam (Halogen)

H11LL

*Headlamp low beam (Halogen)

LED

*Side marker lamp - front

W5W

*Park lamp - front

PWY24W

*Turn lamp - front

H11

*Fog lamp - front

LED

*Tail and brake lamp - high series

LED

*Tail and brake lamp - low series

921

Reverse lamp

LED

*Turn lamp - rear - high series

LED

*Turn lamp - rear - low series

LED

*Side marker lamp - rear

W5W

License plate lamp

W5W or LED**

*Trunk lamp

LED

*High-mount brake lamp

LED

*Side repeater lamp

LED

*Interior lamp

*To replace these bulbs, see your authorized dealer.

To replace all instrument panel bulbs, see your authorized dealer.

**If so equipped.

CHANGING THE ENGINE AIR
FILTER

WARNING

To reduce the risk of vehicle damage
and personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

When changing the air filter element, use
only the air filter element listed. See
Capacities and Specifications (page
312).

For EcoBoost equipped vehicles: When
servicing the air cleaner, it is important that
no foreign material enter the air induction
system. The engine and turbocharger are
susceptible to damage from even small
particles.

Change the air filter element at the proper
interval. See Scheduled Maintenance
(page 470).

Note: Failure to use the correct air filter
element may result in severe engine
damage. The customer warranty may be
void for any damage to the engine if the
correct air filter element is not used.

EcoBoost Engines

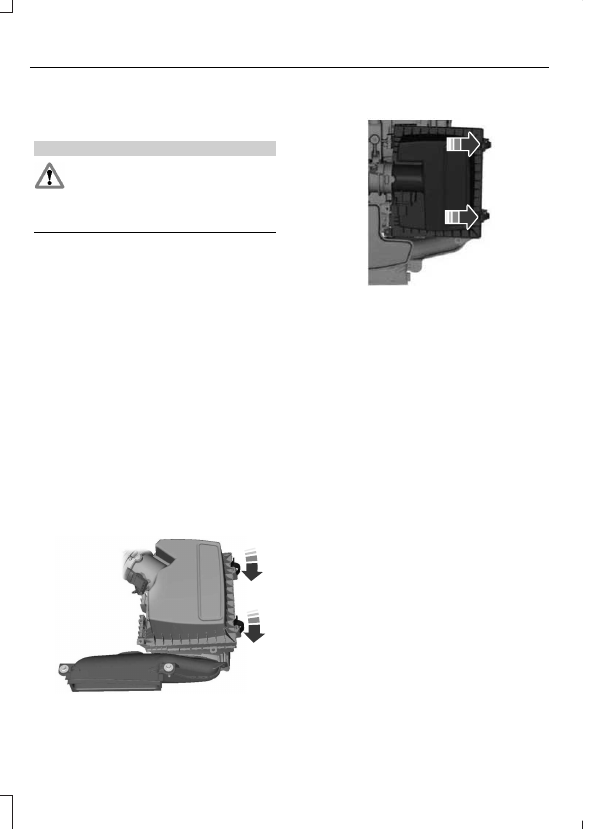

E144365

2.5L Engine

(If Equipped)

E146047

Release the clamps that secure the air
filter housing cover.

2. Carefully lift the air filter housing cover.
3. Remove the air filter element from the

air filter housing.

4. Wipe any dirt or debris from the air filter

housing and cover to make sure no dirt
gets in the engine and to make sure you
have a good seal.

5. Install a new air filter element. Be

careful not to crimp the filter element
edges between the air filter housing
and cover. This could cause filter
damage and allow unfiltered air to
enter the engine if not properly seated.

6. Install the air filter housing cover.
7.

Engage the clamps to secure the air
filter housing cover to the air filter
housing.
