Ford Fusion (2018 year). Manual - part 32

Note: Adjust the seatback to an upright
driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your head
and as far forward as possible. Make sure
that you remain comfortable. If you are
extremely tall, adjust the head restraint to
its highest position.

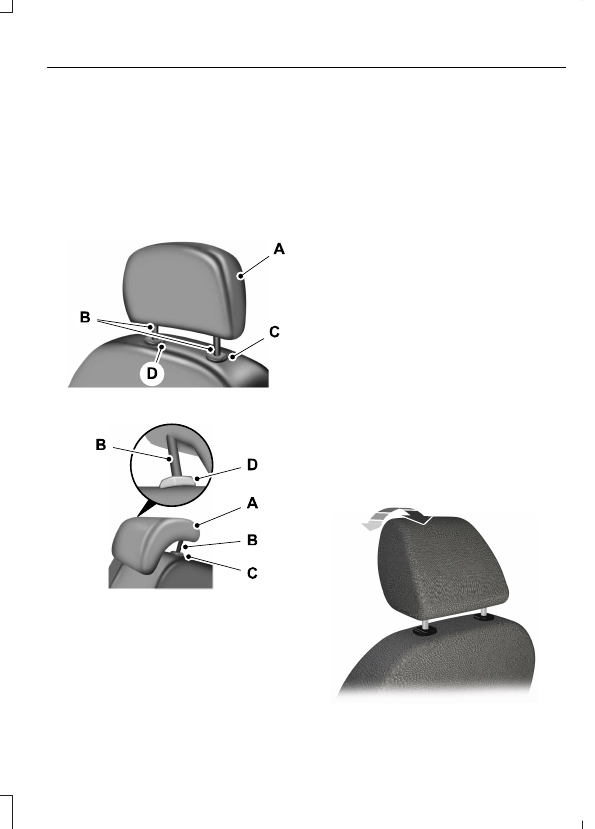

Front seat and rear seat outboard head
restraints

E138642

Rear center head restraint

E138645

The head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve adjust and unlock
button.

C

Guide sleeve unlock and remove
button.

D

Adjusting the Head Restraint

Raising the Head Restraint

Pull the head restraint up.

Lowering the Head Restraint

1.

Press and hold button C.

2. Push the head restraint down.

Removing the Head Restraint

1.

Pull the head restraint up until it
reaches its highest position.

2. Press and hold buttons C and D.
3. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

Tilting Head Restraints

 (If Equipped)

E144727

The front head restraints tilt for extra
comfort. To tilt the head restraint, do the
following:

1.

Adjust the seatback to an upright
driving or riding position.

2. Pivot the head restraint forward toward

your head to the desired position.

After the head restraint reaches the
forward-most tilt position, pivoting it
forward again will then release it to the
rearward, un-tilted position.

MANUAL SEATS

 (If Equipped)

WARNINGS

Do not adjust the driver seat or
seatback when your vehicle is
moving.

Rock the seat backward and forward
after releasing the lever to make sure
that it is fully engaged.

Reclining the seatback can cause an
occupant to slide under the seat's
safety belt, resulting in severe

personal injuries in the event of a crash.

The driver and passenger manual seats
may consist of:

A

B C

D

E144631

A bar to move the seat backward
and forward.

A

A control to adjust the lumbar of
the seatback (driver seat only).

B

A lever to adjust the height of the
seat (driver seat only).

C

A lever to adjust the angle of the
seatback.

D

POWER SEATS

 (If Equipped)

WARNINGS

Do not adjust the driver seat or
seatback when your vehicle is
moving.

Do not place cargo or any objects
behind the seatback before returning
it to the original position.

Note: Driver seat shown, passenger seat
similar.

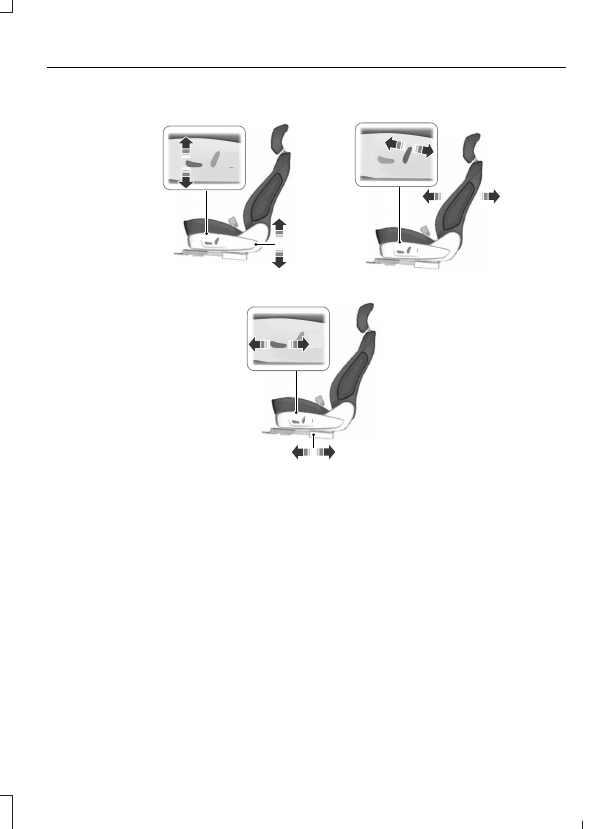

6-way power seat

E176793

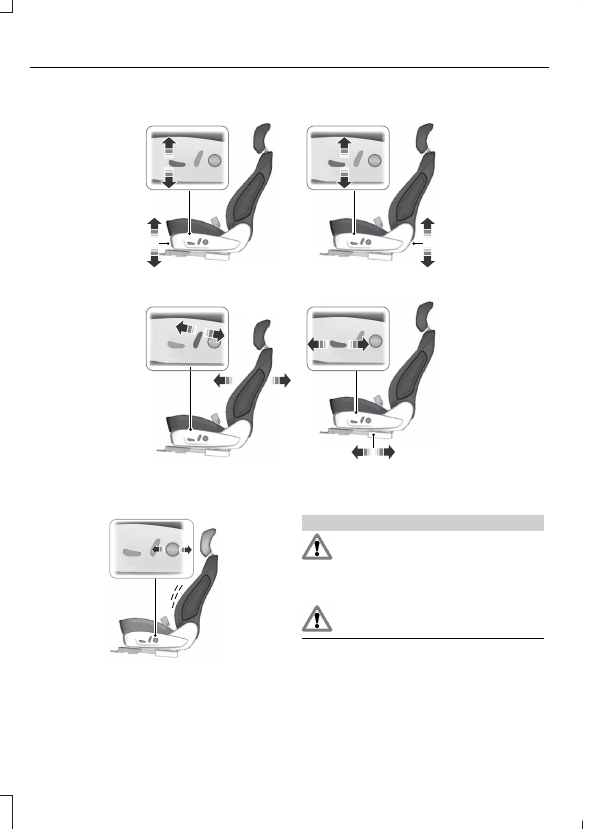

10-way power seat

E144632

Power Lumbar

 (If Equipped)

E165608

MEMORY FUNCTION

 (If Equipped)

WARNINGS

Before activating the memory seat,
make sure that the area immediately
surrounding the seat is clear of

obstructions and that all occupants are
clear of moving parts.

Do not use the memory function
when your vehicle is moving.

This feature automatically recalls the
position of the following features:
