Action

Message

The transmission is adjusting the shift strategy.

Transmission Adapt-

Mode

The transmission is locked and unable to select gears.

Transmission Indicat-

Mode Lockup On

The transmission is unlocked and free to select gears.

Transmission Indicat-

Mode Lockup Off

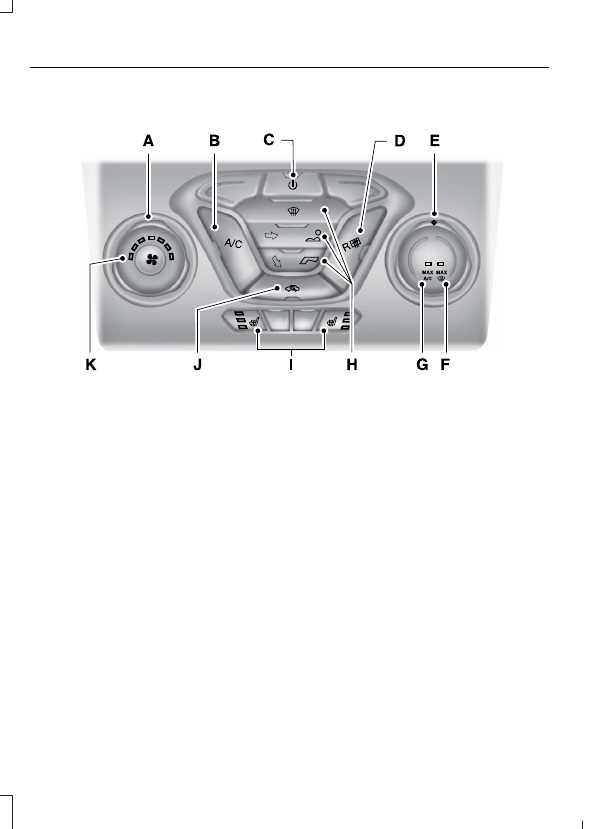

MANUAL CLIMATE CONTROL

 (If Equipped)

E144491

Fan speed control: Adjusts the volume of air circulated in the vehicle.

A

A/C: Press to switch the air conditioning on or off. Use A/C with recirculated
air to improve cooling performance and efficiency.

B

Note: In certain conditions (for example, maximum defrost), the air conditioning
compressor may continue to operate even though you switch off the air
conditioning.

Power: Press to switch the system on and off. When the system is off, it
prevents outside air from entering the vehicle.

C

Heated rear window: Press to switch the heated rear window on and off.  See
Heated Windows and Mirrors (page 128).

D

Temperature control: Adjusts the temperature of the air circulated in your
vehicle.

E

MAX Defrost: Turn to the right to switch on defrost. Air flows through the
windshield vents. You can also use this setting to defog and clear the windshield
of a thin covering of ice. The heated rear window also turns on when you select
maximum defrost.

F

Note: To prevent window fogging, you cannot select recirculated air when
maximum defrost is on.

MAX A/C: Turn to the left for maximum cooling. Recirculated air flows through
the instrument panel vents, air conditioning turns on and the fan adjusts to the
highest speed.

G

Air distribution control: Press to switch airflow from the windshield,
instrument panel or footwell vents on or off. You can distribute air through any
combination of these vents.

H

Note: At least one of these buttons illuminates on when the system is on.

Heated seats: Press to switch the heated seats on and off.  See Heated Seats
(page 137).

I

Recirculated air: Press to switch between outside air and recirculated air. The
air currently in the passenger compartment recirculates. This may reduce the
time needed to cool the interior (when used with A/C) and reduce unwanted
odors from entering your vehicle.

J

Note: Recirculated air may turn off (or prevent you from switching on) in all air
flow modes except MAX A/C to reduce the risk of fogging. Recirculation may
also turn on and off in Panel or Panel/Floor air flow modes during hot weather
in order to improve cooling efficiency.

Fan speed indicator: Illuminates to indicate fan speed.

K

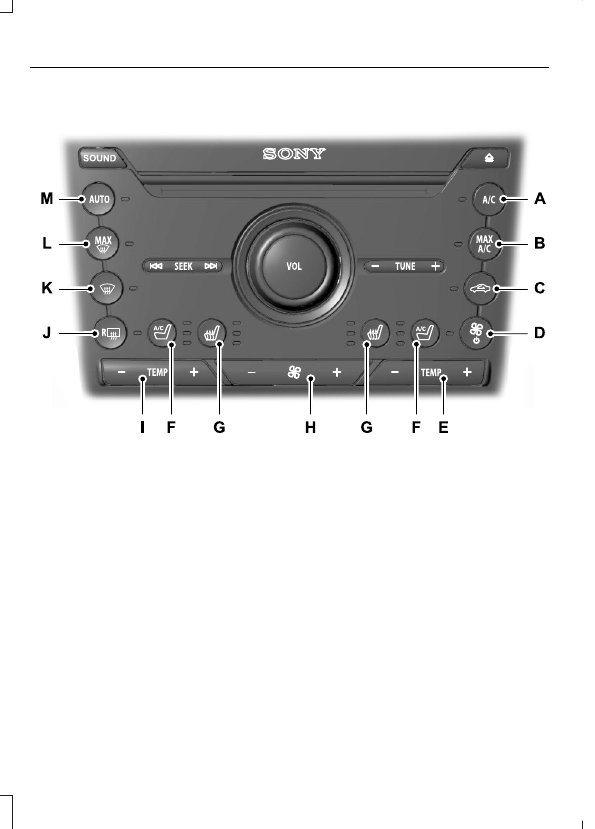

AUTOMATIC CLIMATE
CONTROL - VEHICLES WITH:
SONY AUDIO SYSTEM

Note:  You can switch temperature units
between Fahrenheit and Celsius.  See your
SYNC information.

E241818

A/C: Press to switch the air conditioning on or off. Use A/C with recirculated
air to improve cooling performance and efficiency.

A

Note: In certain conditions (for example, maximum defrost), the air conditioning
compressor may continue to operate even though you switch off the air
conditioning.

MAX A/C: Press for maximum cooling. The driver and passenger settings set
to LO, recirculated air flows through the instrument panel vents, air conditioning
turns on and the fan adjusts to the highest speed.

B

Recirculated air: Press to switch between outside air and recirculated air. The
air currently in the passenger compartment recirculates. This may reduce the
time needed to cool the interior (when used with A/C) and reduce unwanted
odors from entering your vehicle.

C

Note: Recirculated air may turn off (or prevent you from switching on) in all air
flow modes except MAX A/C to reduce the risk of fogging or to improve cooling
efficiency.

Power: Press to switch the system on and off. When the system is off, it
prevents outside air from entering the vehicle.

D
