If you need to use a jack or hoist to service
your vehicle, make sure the lift pads do not
contact the high voltage battery or support
brace.

The high voltage battery and support brace
are very close to the rear lifting points.
These points are identifiable by a triangle
icon. Position the lift pads of the jack or
hoist at the specified lifting points. Lifting
your vehicle with the lift pads of the jack
or hoist on the high voltage battery or the
brace will damage the battery.

LUG NUTS

 lb.ft (Nm)

Bolt size

100 (135)

M12 x 1.5

Note: Torque specifications are for nut and
bolt threads free of dirt and rust. Use only
Ford recommended replacement fasteners.

MOTORCRAFT PARTS

Part number

Component

BXT-67R

Battery

WW-2802 (driver side)

WW-2803 (passenger side)

WW-1295 (rear)

Windshield wiper blade

FP-70

Cabin air filter

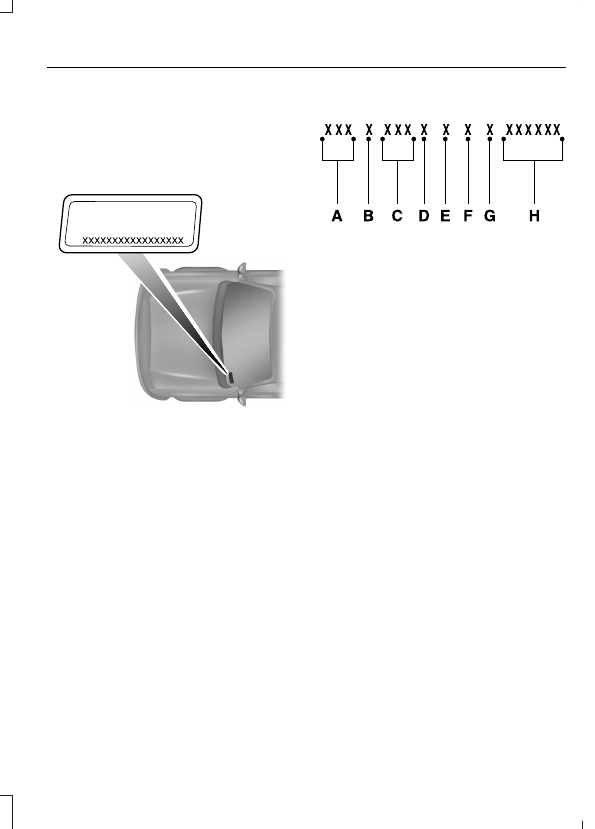

VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is
located on the left-hand side of the
instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION
LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door latch,
next to the driver's seating position.

TRANSMISSION CODE
DESIGNATION

E167814

The transmission code is on the Safety
Compliance Certification Label. The
following table shows the transmission
code along with the transmission
description.

Code

Description

44H

One-speed automatic (TR-WA)
