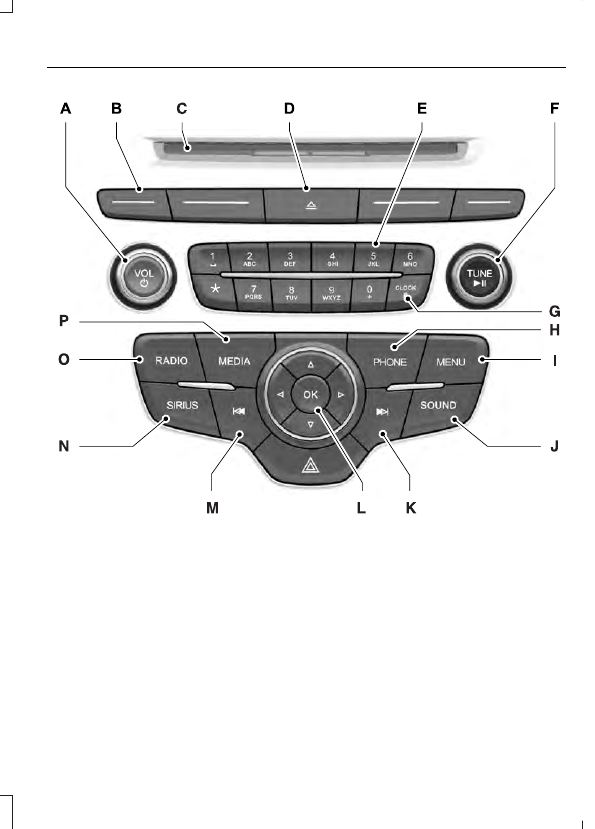

E184902

VOL and Power: Press to switch the system on and off. Turn the control to
adjust the volume.

Function buttons: Select different functions of the audio system depending
on which mode you are in (such as Radio mode or CD mode).

CD slot: Insert a CD.

Eject: Press to eject a CD.

Number block: In radio mode, store and recall your favorite radio stations. To
store a radio station, tune to the station, then press and hold a preset button
until sound returns. In CD mode, select a track. In phone mode, enter a phone
number.

TUNE and Play or Pause: In radio mode, turn to search the frequency band
in individual increments or jump to the next station of the station list. Press to
mute the station. In media mode, turn to select a new track. Press to either play
or pause a track. This button also mutes the radio sources.

CLOCK: If not in phone mode, press to display the clock.

PHONE: Press to access the phone features of the SYNC system. See your
SYNC information.

MENU: Press to access different audio system features. See Menu Structure
later in this section.

SOUND: Press to access settings for Treble, Midrange, Bass, Fade or Balance.
Use the up and down arrow buttons to select the various settings. When you
make your selection, press the left and right arrow buttons to change the
settings. Press OK to set or press MENU to exit. Sound settings can be set for
each audio source independently.

Seek and Fast Forward: In radio mode, select a frequency band and press
this button. The system stops at the first station up the band. Press and hold
the button to move quickly, then release to stop at the next available station.
In CD mode, press to select the next track. Press and hold the button to move
quickly forward through the current track.

OK and Arrow buttons: Press OK to confirm menu selections. Press to scroll
through the menu choices.

Seek and Reverse: In radio mode, select a frequency band and press this
button. The system stops at the first station down the band. Press and hold
the button to move quickly, then release to stop at the previous available station.
In CD mode, press to select the previous track. Press and hold the button to
move quickly backward through the current track.

SIRIUS: Press to listen to Sirius satellite radio.

RADIO: Press this multiple times to select a radio band. Press and hold to
select the autostore function. Press to return to the main screen of the active
radio band.

MEDIA: Press to open the media source menu. You can press this multiple
times to change to CD or to a SYNC-Media device or scroll through the media
sources using the arrow buttons. Press OK to select a source.

DIGITAL RADIO

Note: HD Radio broadcasts are not
available in all markets.

HD Radio technology is the digital
evolution of analog AM/FM radio. Your
system has a special receiver that allows
it to receive digital broadcasts (where
available) in addition to the analog
broadcasts, it already receives. Digital
broadcasts provide a better sound quality

than analog broadcasts with free,
crystal-clear audio and no static or
distortion. For more information, and a
guide to available stations and
programming, please visit
www.hdradio.com.

When HD Radio is on and you tune to a
station broadcasting HD Radio technology,
you may notice the HD Radio logo on your
screen. When this logo is available, you
may also see Title and Artist fields
on-screen.

The multicast indicator appears in FM
mode (only) if the current station is
broadcasting multiple digital broadcasts.
The highlighted numbers signify available
digital channels where new or different
content is available. HD1 signifies the main
programming status and is available in
analog and digital broadcasts. Other
multicast stations (HD2 through HD7) are
only available digitally.

When HD Radio broadcasts are active, you
can access the following functions:
•

Scan allows you to hear a brief
sampling of all available stations. This
feature still works when HD Radio
reception is on, although it does not
scan for HD2-HD7 channels. You may
see the HD logo appear if the station
has a digital broadcast.

•

Memory presets allow you to save an
active channel as a memory preset.
Touch and hold a memory preset slot
until the sound returns. There is a brief
mute while the radio saves the station.
Sound returns when finished. When
switching to an HD2 or HD3 memory
preset, the sound mutes before the
digital audio plays, because the system
has to reacquire the digital signal.

Note: As with any saved radio station, you
cannot access the saved station if your
vehicle is outside the station’s reception
area.

HD Radio Reception and Station Troubleshooting

Potential reception issues

If you are listening to a multicast station and you are on
the fringe of the reception area, the station may mute due
to weak signal strength.

Reception area

If you are listening to HD1, the system switches back to
the analog broadcast until the digital broadcast is available
again. However, if you are listening to any of the possible
HD2-HD7 multicast channels, the station mutes and stays
muted unless it is able to connect to the digital signal
again.

When the system first receives a station (aside from HD2-
HD7 multicast stations), it first plays the station in the
analog version. Once the receiver verifies the station is an
HD Radio station, it shifts to the digital version. Depending
on the station quality, you may hear a slight sound change
when the station changes from analog to digital. Blending
is the shift from analog to digital sound or digital back to
analog sound.

Station blending

In order to provide the best possible
experience, use the contact form to report
any station issues found while listening to
a station broadcasting with HD Radio

technology. Independent entities own and
operate each station. These stations are
responsible for ensuring all audio streams
and data fields are accurate.

Potential station issues

Action

Cause

Issues

No action required. This is a
broadcast issue.

This is poor time alignment
by the radio broadcaster.

Echo, stutter, skip or repeat
in audio.
Increase or decrease in
audio volume.

No action required. The
reception issue may clear up
as you continue to drive.

The radio is shifting between
analog and digital audio.

Sound fading or blending in
and out.

No action required. This is
normal behavior. Wait until
the audio is available.

The digital multicast is not
available until the HD Radio
broadcast is decoded. Once
decoded, the audio is avail-
able.

There is an audio mute
delay when selecting HD2 or
HD3, multicast preset or
Direct Tune.

No action required. The
station is not available in
your current location.

The previously stored
multicast preset or direct
tune is not available in your
current reception area.

Cannot access HD2 or HD3
multicast channel when
recalling a preset or from a
direct tune.

Fill out the station issue
form at website listed

below.

Data service issue by the
radio broadcaster.

Text information does not
match currently playing
audio.

Fill out the station issue
form at website listed

below.

Data service issue by the
radio broadcaster.

There is no text information
shown for currently selected
frequency.

No action required. This is
normal behavior.

Pressing Scan disables
HD2-HD7 channel search.

HD2-HD7 stations not found
when Scan is pressed.

http://www.ibiquity.com/automotive/report_radio_station_experiences
