Rear Lamps - 4 Door

A

B

E133714

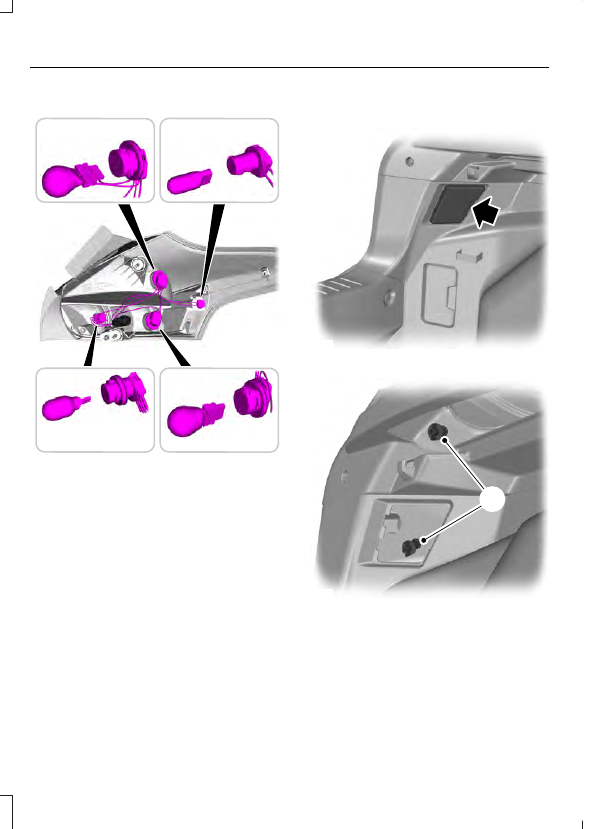

Direction indicator and rear lamp
bulb.

A.

Brake lamp bulb.

B.

Brake Lamp, Rear Lamp and Direction
Indicator

E133702

1.

Carefully remove the cover.

2

E133703

2. Remove the wing nuts and detach the

clip.

3. Remove the lamp.

E133713

4

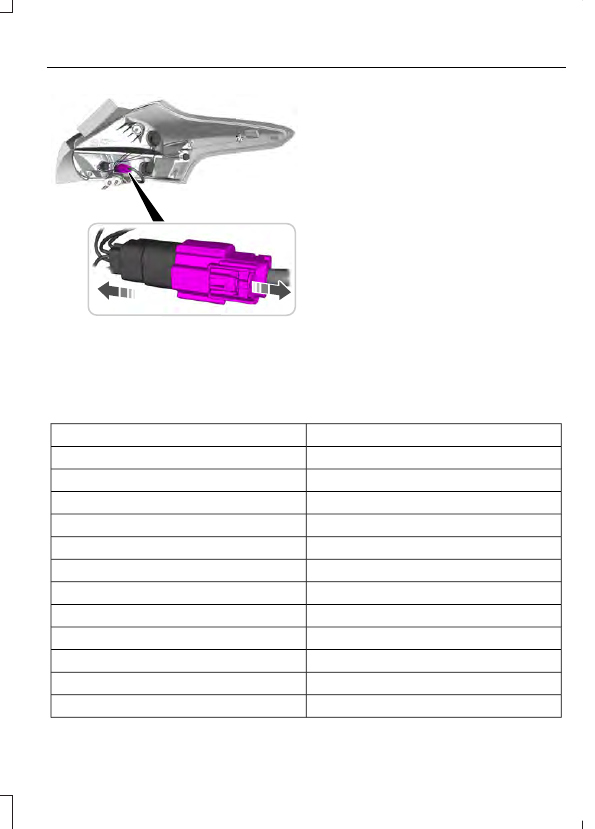

4. Disconnect the electrical connector.

5. Turn the bulb holder counterclockwise

and remove it.

6. Press the bulb in and turn the bulb

counterclockwise to remove it.

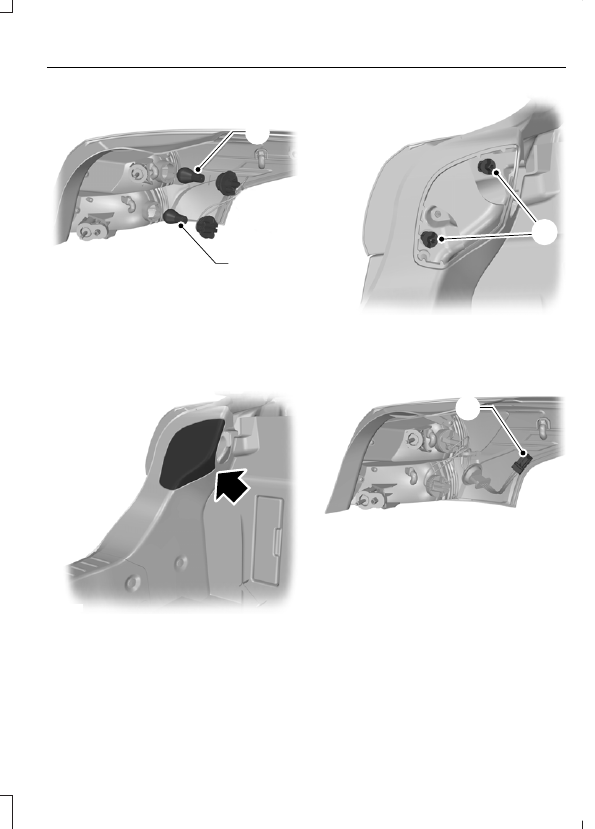

Rear Lamps - 5 Door

D

A

B

E184159

C

Brake and rear lamp bulb.

A.

Side marker lamp bulb.

B.

Direction indicator bulb.

C.

Reverse lamp bulb.

D.

Brake Lamp, Rear Lamp and Direction
Indicator

E133111

1.

Carefully remove the cover.

E133112

2

2. Remove the wing nuts and detach the

clip.

3. Remove the lamp.

E184158

4

4. Disconnect the electrical connector.

5. Turn the bulb holder counterclockwise

and remove it.

6. Remove the bulb by pulling it straight

out.

LED Rear Lamps

 (If Equipped)

These lamps have LED bulbs.  Contact an
authorized dealer.

Replacing Licence Plate and High
Mounted Brake Lamp Bulbs

These lamps have LED bulbs.  Contact an
authorized dealer.

BULB SPECIFICATION CHART

Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized “D.O.T.” for
North America to ensure lamp
performance, light brightness and pattern
and safe visibility. The correct bulbs will
not damage the lamp assembly or void the
lamp assembly warranty and will provide
quality bulb burn time.

Trade number

Function

H1LL

Headlamps high beam (Halogen)

D3S

* Headlamps high beam (HID)

H11LL

Headlamp low beam (Halogen)

D3S

* Headlamp low beam (HID)

H1LL

Daytime running lamps

LED

* Daytime running lamps (High series)

193

Park lamp - front

LED

* Park lamp - front (High series)

WY21W

Direction indicator - front

PY21W

Direction indicator - front (High series)

H8

Fog lamps

WY5W

Sidemarker - front

Trade number

Function

P27/7W

Direction indicator - rear (4-door)

3757 NAK

Direction indicator - rear (5-door)

P27/7W

Rear and brake lamps

194

Rear lamps (4-door)

LED

* Rear lamp (5-door high series)

194

Sidemarker - rear (5-door)

LED

* Sidemarker - rear (High series)

921

Backup lamp

LED

* License plate lamp

LED

* High-mount brake lamp

LED

* Interior lamps

* To replace these lamps, contact an authorized dealer.

To replace all instrument panel lights, contact an authorized dealer.
