Ford Focus RS (2011 year). Instruction - part 80

Measurements

Roof Opening Panel Control Switch

Terminals

Roof Opening Panel

Control Switch Posi-

tion

Multimeter Negative

Lead

Multimeter Positive

Lead

Less than 5 ohms

Fully Up/Close

Greater than 10,000 ohms

First detente Down/Open

Less than 5 ohms

Fully Down/Open

Less than 5 ohms

First detente Down/Open

Less than 5 ohms

Fully Down/Open

Greater than 10,000 ohms

First detente Up/Close

Less than 5 ohms

Fully Up/Close

2. If all measurements of the roof opening panel

control switch are as noted, return to the
Pinpoint Test. Otherwise install a new roof
opening panel control switch.

G330089en

501-17-

Roof Opening Panel

501-17-

DIAGNOSIS AND TESTING

Water Drainage System Check and Water Leak

Corrections(41 002 0)

1. If a drain hose blockage or obstruction is

suspected, check the drain hoses by pouring
500 ml of water into the drain trough and
checking the flow from under the vehicle
rocker panels. Attempt to clear any blockage
or obstruction using a drain clearing wire
(nylon). If the blockage or obstruction cannot
be cleared the drain hose must be removed.

For additional information,

refer to Roof

Opening Panel Front Drain Hose -

/ Roof Opening Panel Rear Drain Hose -

this section.

2. If a drain hose leak is suspected the drain

hose must be removed and inspected for
cracks or splits.

For additional information,

refer to Roof

Opening Panel Front Drain Hose -

/ Roof Opening Panel Rear Drain Hose -

this section.

G167713en

501-17-

Roof Opening Panel

501-17-

GENERAL PROCEDURES

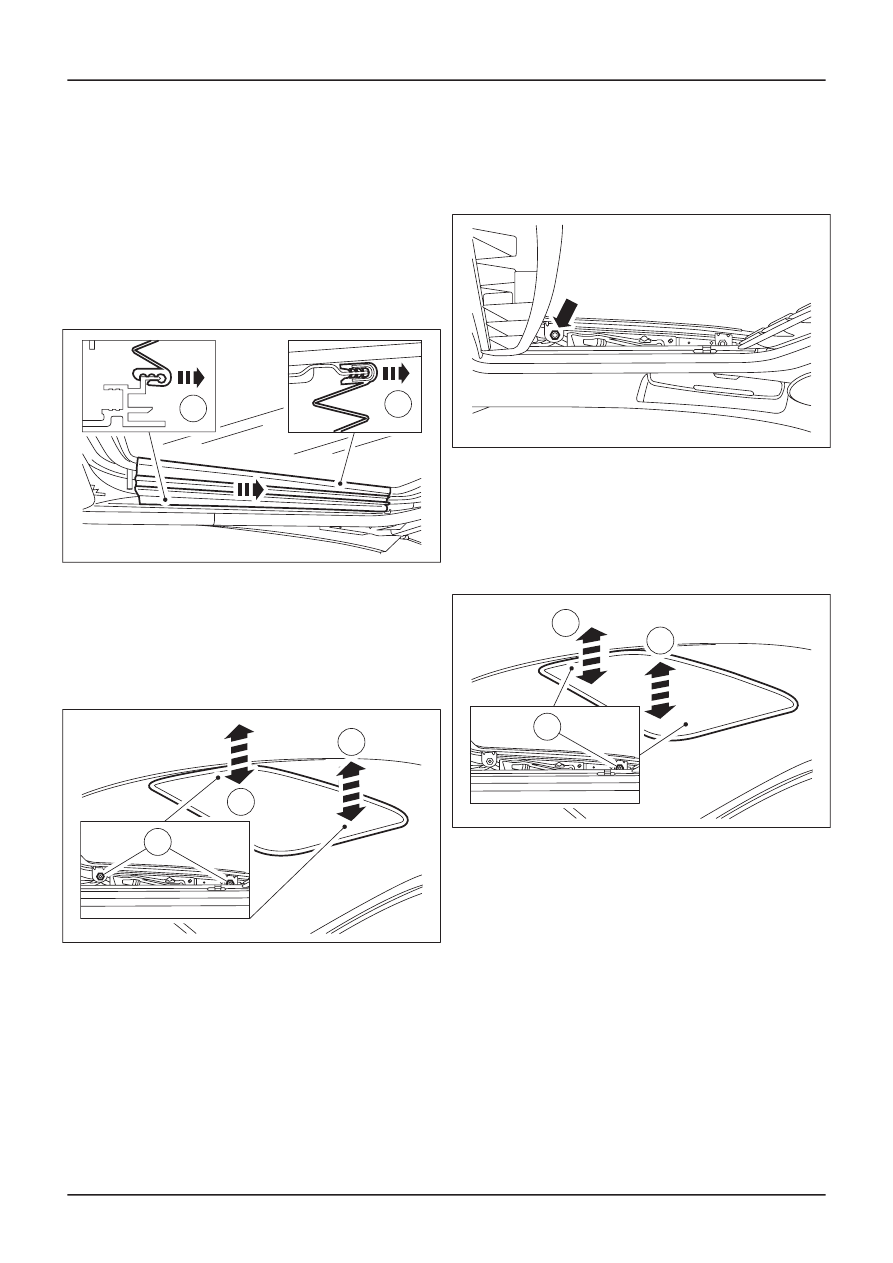

Roof Opening Panel Alignment(41 113 0)

1. NOTE: The roof opening panel must be in

the closed position for alignment.

Starting at the rear of the roof opening panel,
remove the roof opening panel guide arm
covers (left-hand side shown).

1. Release the lower clip.
2. Release the upper clip.

TIE39805

2. Adjust the rear edge of the roof opening

panel glass.

1. Loosen the retaining screws on both sides

(left-hand side shown).

2. Push the rear edge up or down to give the

correct alignment (flush to + 1 mm).

E49456

3. Make sure that the roof opening panel glass

is located centrally in the roof panel opening.

4. Tighten the roof opening panel glass rear

retaining screws (left-hand side shown).

E49937

5. Adjust the front edge of the roof opening

panel glass.

1. Push the front edge up or down to give the

correct alignment (flush to -1 mm).

2. Tighten the front retaining screws (left-hand

side shown).

E49457

6. NOTE: An audible click can be heard when

the lower edge of the guide arm cover is
correctly located.

Starting at the front of the roof opening
panel, install the roof opening panel guide
arm covers (left-hand side shown).

1. Install the upper clip.

G323976en

501-17-

Roof Opening Panel

501-17-

GENERAL PROCEDURES

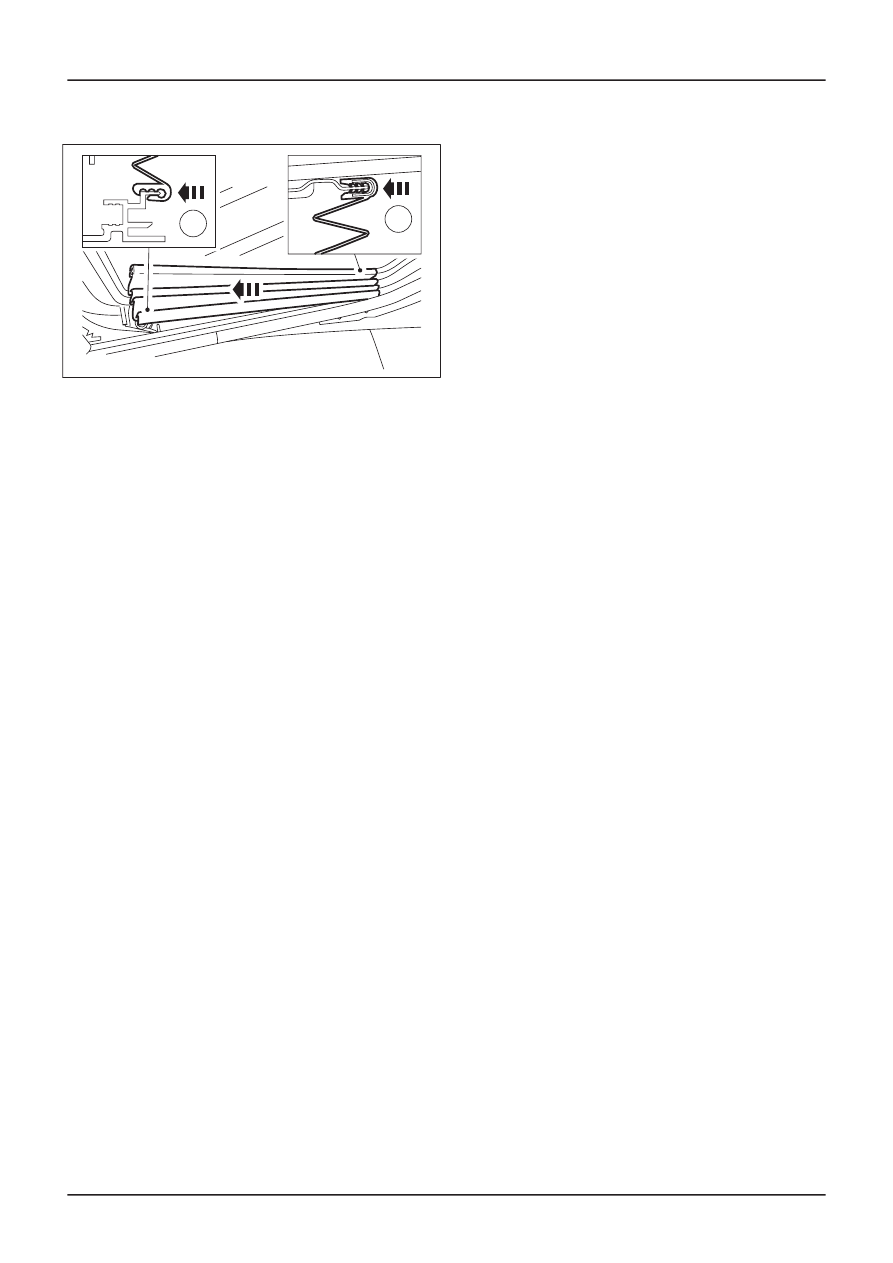

2. Install the lower clip.

TIE39806

7. Operate the roof opening panel and check

the alignment.

G323976en

501-17-

Roof Opening Panel

501-17-

GENERAL PROCEDURES

Roof Opening Panel Motor Initialization

Updating Roof Opening Panel Motor
Initialization

WARNING: The roof opening panel
anti-trap function will not operate during
the updating roof opening panel motor
initialization procedure. Make sure that the
roof opening panel opening is free of all
foreign material. Failure to follow this
instruction may result in personal injury.

NOTE: This procedure should only be carried out
when the roof opening panel motor has not been
disconnected.

NOTE: The roof opening panel alignment must be
carried out prior to carrying out roof opening panel
motor initialization.

For additional information,

refer to: Roof Opening

Panel Alignment

(501-17 Roof Opening Panel,

General Procedures).

1. Operate the roof opening panel control

switch to the up/close position until the roof
opening panel is in the fully vent position.

2. Release the roof opening panel control

switch.

3. Operate the roof opening panel control

switch to the up/close position and hold for
30 seconds until there is a small movement
(approximately 2 mm) and the roof opening
panel motor stops.

4. Release the roof opening panel control

switch.

5. NOTE: In one complete cycle the roof

opening panel will close, fully open and
return to the fully closed position.

Operate the roof opening panel control
switch to the up/close position again within
3 seconds until the roof opening panel stops
(one complete cycle).

Initial Roof Opening Panel Motor
Initialization

NOTE: This procedure must be carried out when
installing any roof opening panel motor or roof
opening panel.

NOTE: The roof opening panel alignment must be
carried out prior to carrying out roof opening panel
motor initialization.

For additional information,

refer to: Roof Opening

Panel Alignment

(501-17 Roof Opening Panel,

General Procedures).

1. Operate the roof opening panel control

switch to the up/close position.

2. Release the roof opening panel control

switch.

3. NOTE: In one complete cycle the roof

opening panel will close, fully open and
return to the fully closed position.

Operate the roof opening panel control
switch to the up/close position again within
3 seconds until the roof opening panel stops
(one complete cycle).

Erasing Roof Opening Panel Motor
Initialization

NOTE: The erasing procedure is to be carried out
only when the roof opening panel motor has been
detached from the roof opening panel.

NOTE: This procedure must be carried out before
installing a previously used roof opening panel
motor.

1. Operate the roof opening panel control

switch to the up/close position until the roof
opening panel motor stops.

2. Release the roof opening panel control

switch.

3. Operate the roof opening panel control

switch again to the up/close position and
hold for 30 seconds. With the roof opening
panel control switch held, the roof opening
panel motor will rotate in one direction.

4. Release the roof opening panel control

switch.

5. Operate the roof opening panel control

switch to the down/open position. If the roof
opening panel motor does not rotate, the
erasing procedure has been carried out
successfully.

G323977en

501-17-

Roof Opening Panel

501-17-

GENERAL PROCEDURES

6. If the roof opening panel motor rotates (with

the roof opening panel control switch in the
down/open position), repeat the procedure.

G323977en

501-17-

Roof Opening Panel

501-17-

GENERAL PROCEDURES

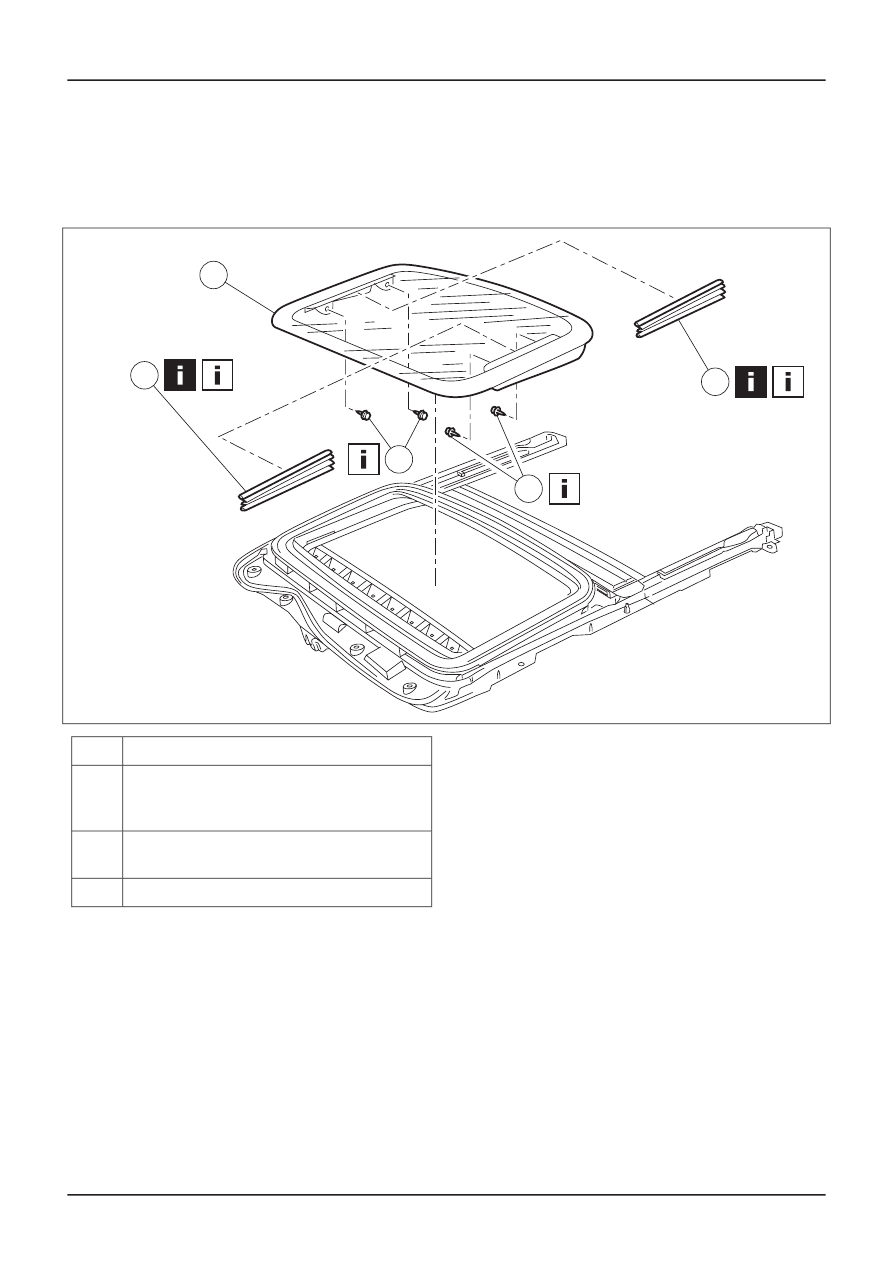

Roof Opening Panel Glass

1. Move the roof opening panel shield

rearwards.

2. Remove the components in the order

indicated in the following illustration(s) and
table(s).

TIE39804

Description

Item

Roof opening panel guide arm covers

See Removal Detail

See Installation Detail

Roof opening panel glass retaining screws

See Installation Detail

Roof opening panel glass

3. To install, reverse the removal procedure.

Removal Details

Item 1

Roof opening panel guide arm covers

1. NOTE: Make sure the roof opening panel is

in the closed position.

Starting at the rear of the roof opening panel,
remove the roof opening panel guide arm
covers (left-hand side shown).

1. Release the lower clip.

G296325en

501-17-

Roof Opening Panel

501-17-

REMOVAL AND INSTALLATION

2. Release the upper clip.

TIE39805

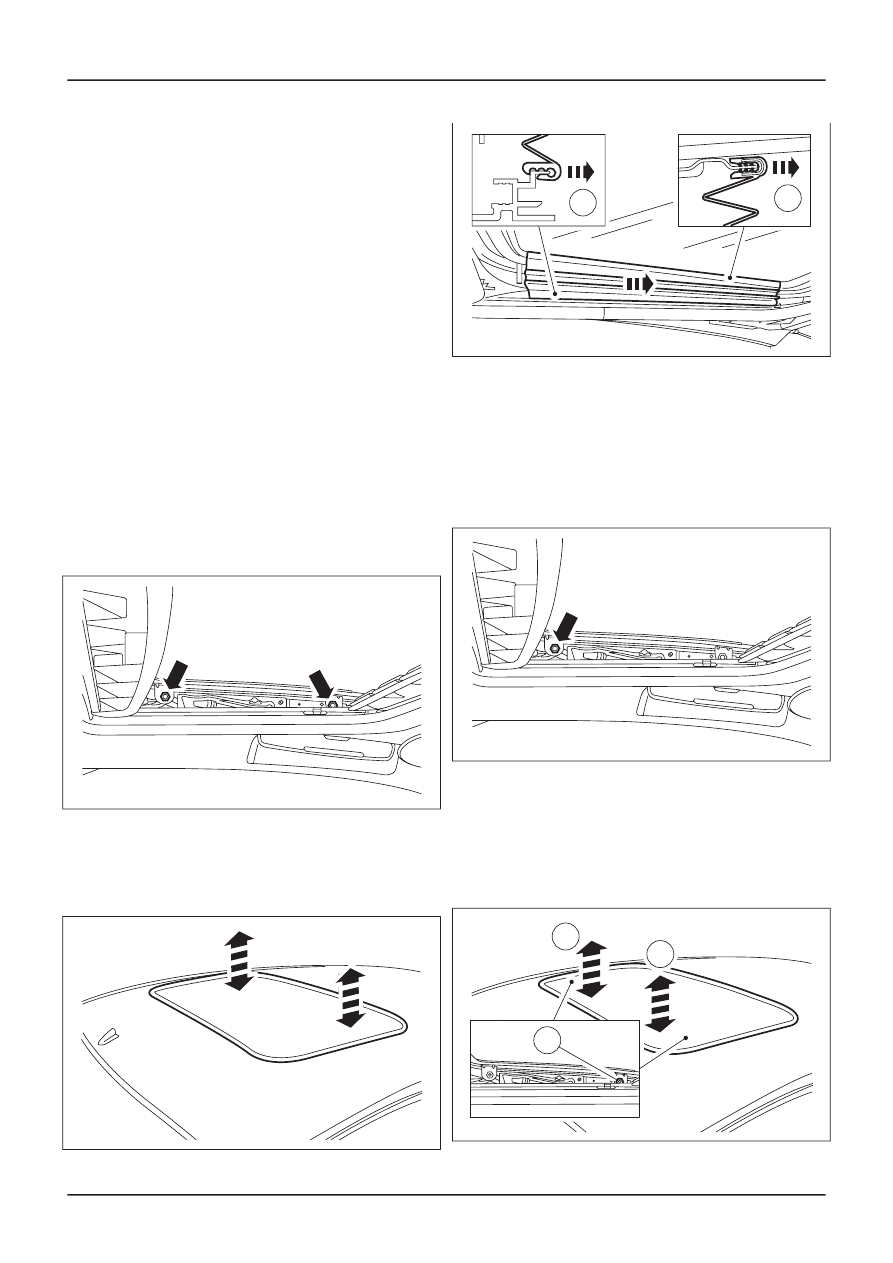

Installation Details

Item 2

Roof opening panel glass retaining

screws

1. NOTE: Do not fully tighten the retaining

screws at this stage.

Install the roof opening panel glass retaining
screws on both sides (left-hand side shown).

E49936

2. Adjust the rear edge of the roof opening

panel glass.

• Push the rear edge up or down to give the

correct alignment (flush to + 1 mm).

E50044

3. Make sure that the roof opening panel glass

is located centrally in the roof panel opening.

4. Tighten the roof opening panel glass rear

retaining screws (left-hand side shown).

E49937

5. Adjust the front edge of the roof opening

panel glass.

1. Push the front edge up or down to give the

correct alignment (flush to -1 mm).

2. Tighten the front retaining screws (left-hand

side shown).

E49457

G296325en

501-17-

Roof Opening Panel

501-17-

REMOVAL AND INSTALLATION
