Ford F-650/750 (2018 year). Manual - part 67

Specification

Name

WSP-M2C197-A

Recommended Rear axle fluid (U.S. and Mexico): (S-170)
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

WSP-M2C197-A

Recommended Rear axle fluid (Canada): (S-170)
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L

WSL-M2C192-A

Optional Rear axle fluid (U.S. and Mexico): (S-170)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSL-M2C192-A

Optional Rear axle fluid (Canada): (S-170)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
CXY-75W140-1L

WSP-M2C197-A

Recommended Rear axle fluid (U.S. and Mexico): (S-
190)
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

WSP-M2C197-A

Recommended Rear axle fluid (Canada): (S-190)
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L

WSL-M2C192-A

Optional Rear axle fluid (U.S. and Mexico): (S-190)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSL-M2C192-A

Optional Rear axle fluid (Canada): (S-190)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
CXY-75W140-1L

WSP-M2C197-A

Recommended Rear axle fluid (U.S.): (21060S)
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

WSP-M2C197-A

Recommended Rear axle fluid (Canada): (21060S)
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L

WSL-M2C192-A

Optional Rear axle fluid (U.S.): (21060S)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSL-M2C192-A

Optional Rear axle fluid (Canada): (21060S)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
CXY-75W140-1L

Specification

Name

WSS-M2C938-A

Power steering fluid:

MERCON LV

Motorcraft® MERCON LV
XT-10-QLVC

WSB-M8B16-A2

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate
with Bitterant
ZC-32-B2

WSB-M8B16-A2

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSH-M17B19-A

A/C refrigerant (U.S.):
Motorcraft® R-134a Refrigerant
YN-19

WSH-M17B19-A

A/C refrigerant (Canada):
Motorcraft® R-134a Refrigerant
CYN-16-R

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant
MYN-19

WSH-M1C231-B

A/C refrigerant compressor oil:
Motorcraft® PAG Refrigerant Compressor Oil
YN-12-D

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

--

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

--

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

--

Lock cylinders (Mexico):
Penetrating and Lock Lubricant
MXL-1

WSD-M1C227-A

Transmission, parking brake linkages and pivots, brake
pedal shift:
Motorcraft® Premium Long-Life Grease
XG-1-E1

1

Motorcraft® SAE 75W-140 Synthetic Rear

Axle Lubricant is standard for (Limited
Series) vehicles.

If you use oil and fluids that do not meet
the defined specification and viscosity
grade, this may lead to:
•

Component damage which is not
covered by the vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

We recommend Motorcraft® motor oil for
your vehicle.  If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that meet
API SN requirements and display the API
Certification Mark for gasoline engines.  Do
not use oil labeled with API SN service
category unless the label also displays the
API certification mark.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by your vehicle warranty.

Note: Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet the Ford
performance standards. Keep brake fluid
clean and dry. Contamination with dirt,
water, petroleum products or other
materials may result in brake system
damage and possible failure.

Note:  Automatic transmissions that require
MERCON® LV transmission fluid should
only use MERCON® LV transmission fluid.
The use of any other fluid may cause
transmission damage.

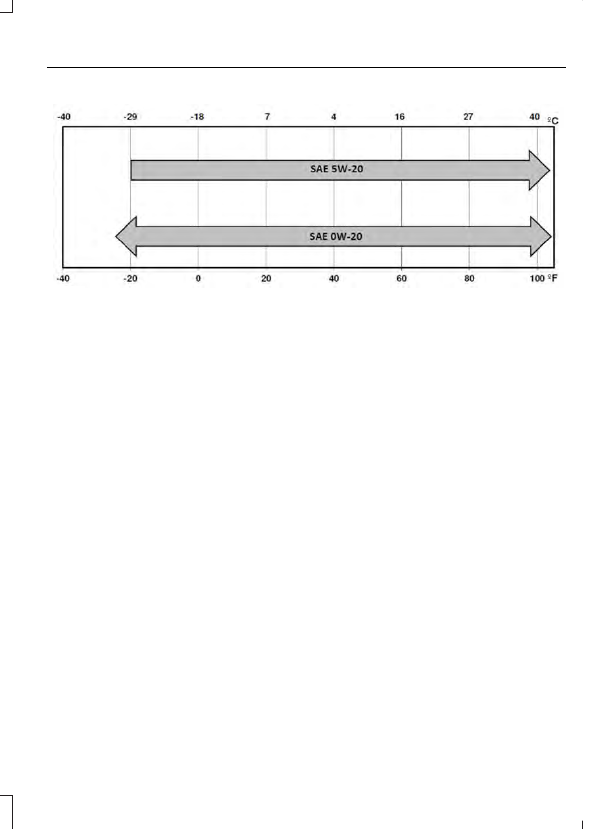

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Specification

Name

WSS-M2C947-A

Motorcraft® SAE 0W-20 Premium
Synthetic Blend Motor Oil:
Engine oil - SAE 0W-20
XO-0W20-QSP

E240522
