If NHTSA receives similar
complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Ford Motor
Company.

To contact NHTSA, you may call
the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to
http://www.safercar.gov; or write
to:

Administrator

1200 New Jersey Avenue,
Southeast

Washington, D.C. 20590

You can also obtain other
information about motor vehicle
safety from
http://www.safercar.gov.

REPORTING SAFETY DEFECTS
(CANADA ONLY)

If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada and Ford of
Canada.

Transport Canada Contact Information

http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-
vehicles.html (English)

Website

http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-
automobiles.html (French)

Website

1–800–333–0510

Phone

Ford of Canada Contact Information

www.ford.ca

Website

1–800–565-3673

Phone

FUSE SPECIFICATION CHART

Power Distribution Box

WARNINGS

Always disconnect the battery before
servicing high current fuses.

To reduce risk of electrical shock,
always replace the cover to the
power distribution box before

reconnecting the battery or refilling fluid
reservoirs.

The power distribution box is in the engine
compartment. It has high-current fuses
that protect your vehicle's main electrical
systems from overloads.

If you disconnect and reconnect the
battery, you will need to reset some
features.  See Changing the 12V Battery
(page 207).

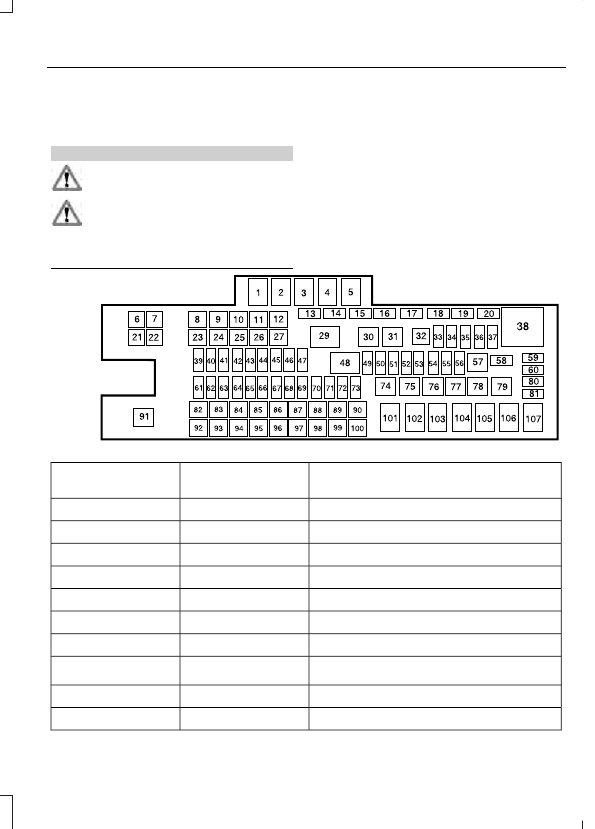

E163101

Protected Components

Fuse Rating

Fuse or Relay

Number

Blower motor.

Relay

1

Trailer tow and body builder stoplamps.

Relay

2

Urea heaters (diesel engine).

Relay

3

Driver air ride seat compressor.

Relay

4

Heated mirrors.

Relay

5

Not used.

6

Not used.

7

Passenger air ride seat compressor.

20A

1

8

Not used.

9

Not used.

10

Protected Components

Fuse Rating

Fuse or Relay

Number

Not used.

11

Not used.

12

Terminating resistor (120 ohm).

Resistor

13

Not used.

14

Not used.

15

Not used.

16

Not used.

17

Not used.

18

Brake on/off isolation relay.

10A

2

19

Not used.

20

Not used.

21

Trailer tow electric brake controller.

30A

1

22

Blower motor.

40A

1

23

Not used.

24

Wipers.

30A

1

25

Trailer tow park lamps.

30A

1

26

Urea heaters (diesel engine).

25A

1

27

Trailer tow park lamps.

Relay

29

A/C clutch.

Relay

30

Wipers.

Relay

31

Not used.

32

Vehicle power 1.

20A

2

33

Vehicle power 2.

20A

2

34

Vehicle power 3.

10A

2

35

Protected Components

Fuse Rating

Fuse or Relay

Number

Vehicle power 4.

20A

2

36

Vehicle power 5 (diesel engine).

10A

2

37

Powertrain control module.

Relay

38

Not used.

39

Heated mirrors.

15A

2

40

Not used.

41

Trailer tow and body builder stoplamps.

20A

2

42

Not used.

43

Ancillary translator module.

20A

2

44

Run/start relay coil.

10A

2

45

Transmission control module keep-alive
power (diesel engine).

10A

2

46

A/C clutch.

10A

2

47

Run/start.

Relay

48

Air dryer.

20A

2

49

Blower motor relay coil.

10A

2

50

Not used.

51

Powertrain control module run/start
(diesel engine).

10A

2

52

Transmission control module run/start
(diesel engine).

Not used.

53

Anti-lock brake system run/start.

10A

2

54

Seat compressor relay coil.

10A

2

55

Chassis solenoids relay coil.
Heated mirror relay coil.
