Ford F-550 (2017 year). Manual - part 87





Power (Watt)

Specification

Lamp

LED

LED

Rear identification lamp.

LED

LED

Underhood lamp.

*

Pickup only.

**

Chassis cab only.

Note: LED lamps are not serviceable. See an authorized dealer if they fail.

Interior Lamps

Power (Watt)

Specification

Lamp

LED

LED

Map lamp.

LED

LED

Glove compartment lamp.

LED

LED

Interior lamp.

LED

LED

Overhead console lamp.

LED

LED

Luggage compartment lamp.

Note: LED lamps are not serviceable. See an authorized dealer if they fail.

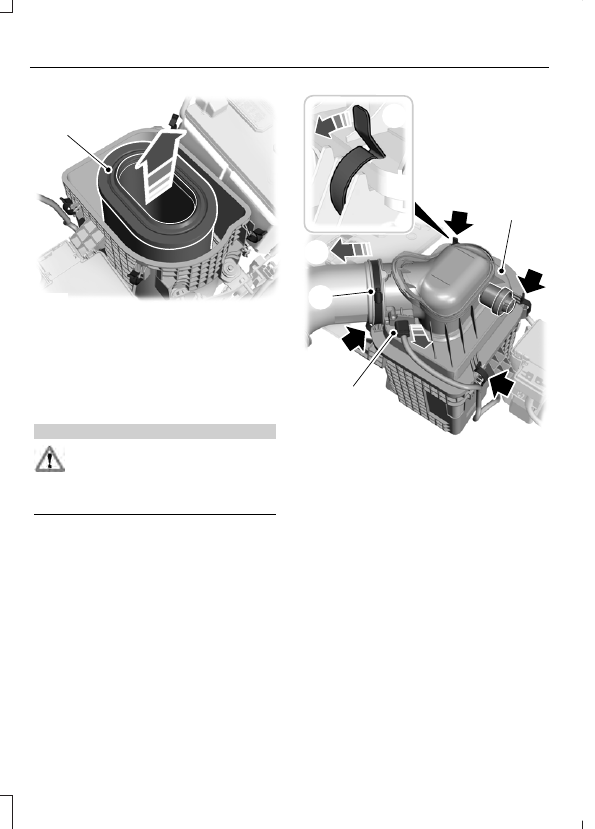

CHANGING THE ENGINE AIR
FILTER - 6.2L/6.8L

WARNING

To reduce the risk of vehicle damage
and personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

Use the correct specification air filter
element.  See Motorcraft Parts (page
414).

Note:  Failure to use the correct air filter
element may result in severe engine
damage.  Resulting component damage
may not be covered by the vehicle Warranty.

Change the air filter element at the correct
service interval.  See Scheduled
Maintenance (page 567).

E226426

x4

1

2

4

3

1.

Disconnect the mass air flow sensor
electrical connector.

2. Remove the air intake tube securing

clamp.

3. Pull the air intake tube away from the

air filter housing.

4. Remove the clips that secure the air

filter housing cover.  Remove the air
filter housing cover.

E226427

5

5. Remove the air filter element from the

air filter housing.

6. Install in the reverse order.

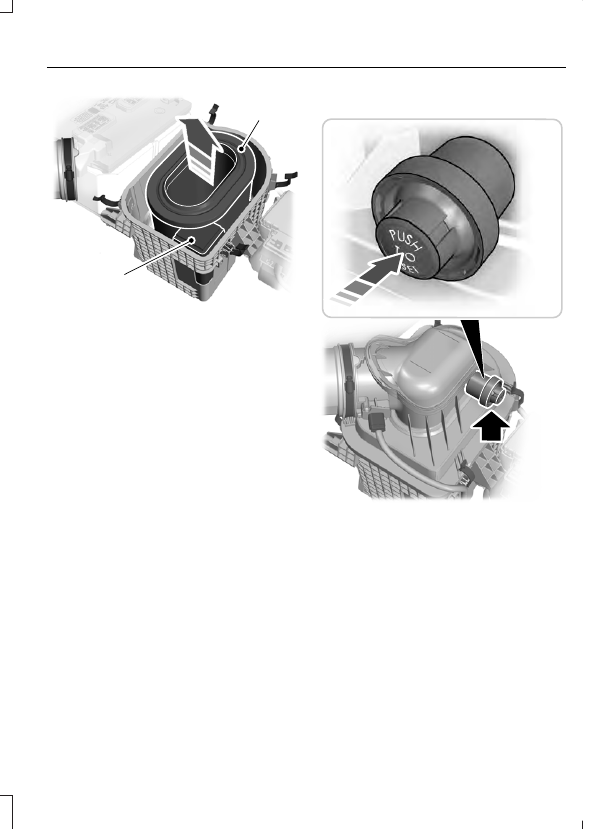

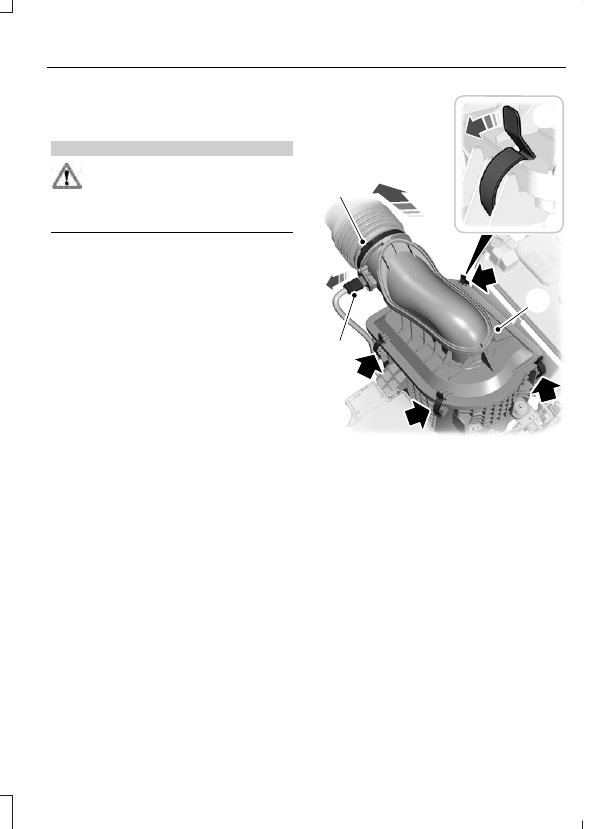

CHANGING THE ENGINE AIR
FILTER - 6.7L DIESEL

WARNING

To reduce the risk of vehicle damage
and personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

Use the correct specification air filter
element.  See Motorcraft Parts (page
414).

Note:  Failure to use the correct air filter
element may result in severe engine
damage.  Resulting component damage
may not be covered by the vehicle Warranty.

Change the air filter element at the correct
service interval.  See Scheduled
Maintenance (page 567).

1

2

4

3

E226429

x4

1.

Disconnect the mass air flow sensor
electrical connector.

2. Remove the air intake tube securing

clamp.

3. Pull the air intake tube away from the

air filter housing.

4. Remove the clips that secure the air

filter housing cover.  Remove the air
filter housing cover.

E226430

5

6

5. Remove the air filter element from the

air filter housing.

6. Remove the foam filter from the air

filter housing.

7.

Install in the reverse order.

Air Filter Restriction Gauge

E226428

The air filter restriction gauge is in the
upper housing of the air filter assembly.

Check the air filter restriction gauge
whenever you open the hood to carry out
general engine maintenance or at least
every 7,500 mi (12,000 km). If you operate
your vehicle in extremely dusty conditions,
check the gauge at least every 500 mi
(800 km) or two weeks, whichever occurs
first. Change the air filter element when
the restriction gauge reads near the
change filter line and the gauge is yellow.
Allowing the restriction gauge to reach
maximum affects engine performance and
fuel economy.
