VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is
located near the cowl to the right of the air
filter.

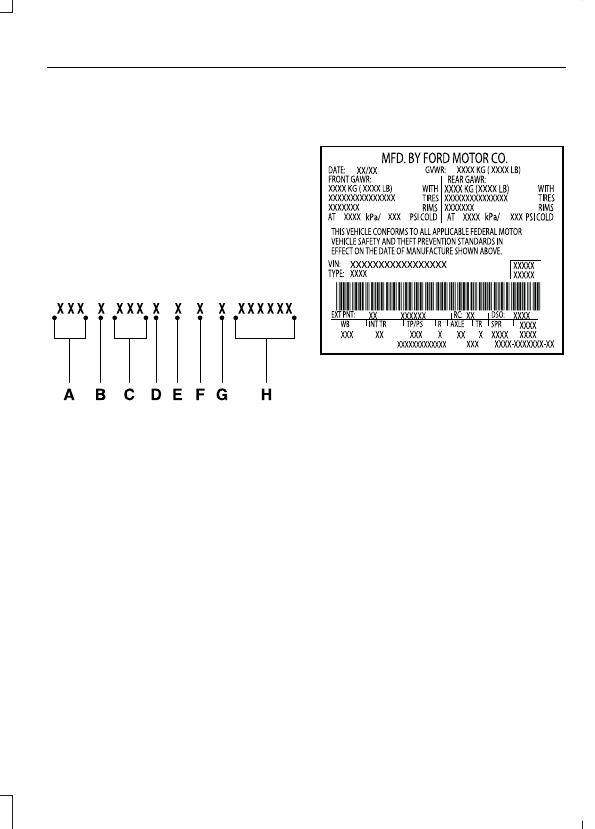

If you ever find it necessary to
communicate with Ford Motor Company
about your vehicle, always include the VIN
in your communication. The Vehicle
Identification Number (VIN) contains the
following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION
LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door latch,
next to the driver's seating position.

TRANSMISSION CODE
DESIGNATION

E167814

The transmission code is on the Safety
Compliance Certification Label. The
following table shows the transmission
code along with the transmission
description.

Code

Description

P

Six Speed Automatic Transmission (6R140)

CAPACITIES AND SPECIFICATIONS

Capacities

WARNING

The air conditioning refrigerant system contains refrigerant under high pressure.
Only qualified personnel should service the air conditioning refrigerant system.
Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

7.0 qt (6.6 L)

Engine oil (with oil filter)

30.6 qt (29 L)

Engine coolant

Between MIN/MAX on brake fluid reservoir

Brake fluid

4.1 qt (3.9 L)

Rear axle lubricant
(Dana M80 axle)

8.0 qt (7.6 L)

Rear axle lubricant
(Dana S110 axle)

7.0 qt (6.6 L)

Rear axle lubricant
(Dana S130 axle)

16.0 qt (15.1 L)

Rear axle lubricant
(Dana Spicer 107060S axle)

17.2 qt (16.3 L)

1

Automatic transmission fluid

Keep in FULL range on dipstick

Power steering fluid

Fill as required

Windshield washer fluid

80 gal (303 L)

Fuel tank (Motorhome)

40 gal (151 L)

Fuel tank (Commercial chassis)

44 oz (1.25 kg)

A/C refrigerant

8.8 fl oz (260.2 ml)

A/C refrigerant compressor oil

1

Approximate dry fill capacity. Actual amount may vary during fluid changes.

Specifications

Materials

Specification

Name

WSS-M2C945-A

Recommended motor oil (U.S.):
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor
Oil
XO-5W20-QSP

WSS-M2C945-A

Recommended motor oil (Canada):
Motorcraft® SAE 5W-20 Super Premium Motor Oil
CXO-5W20-LSP12

WSS-M2C945-A

Optional motor oil (U.S.):
Motorcraft® SAE 5W-20 Full Synthetic Motor Oil
XO-5W20-QFS

WSS-M2C945-A

Optional Motor oil (Canada):
Motorcraft® SAE 5W-20 Synthetic Motor Oil
CXO-5W20-LFS12

WSS-M97B44-D2

Engine coolant (U.S.):
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

WSS-M6C65-A1

1

Brake fluid (U.S.):
Motorcraft® High Performance DOT 3 Motor Vehicle
Brake Fluid
PM-1-C

WSS-M6C65-A1

1

Brake fluid (Canada):
Motorcraft® High Performance DOT 3 Motor Vehicle
Brake Fluid
CPM-1-C

WSS-M6C65-A3

2

Brake fluid:
Motorcraft® DOT 5.1 Motor Vehicle Brake Fluid
PM-21

WSL-M2C192-A

Rear axle lubricant (U.S.):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSL-M2C192-A

Rear axle lubricant (Canada):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
