Ford F-450 (2017 year). Manual - part 19

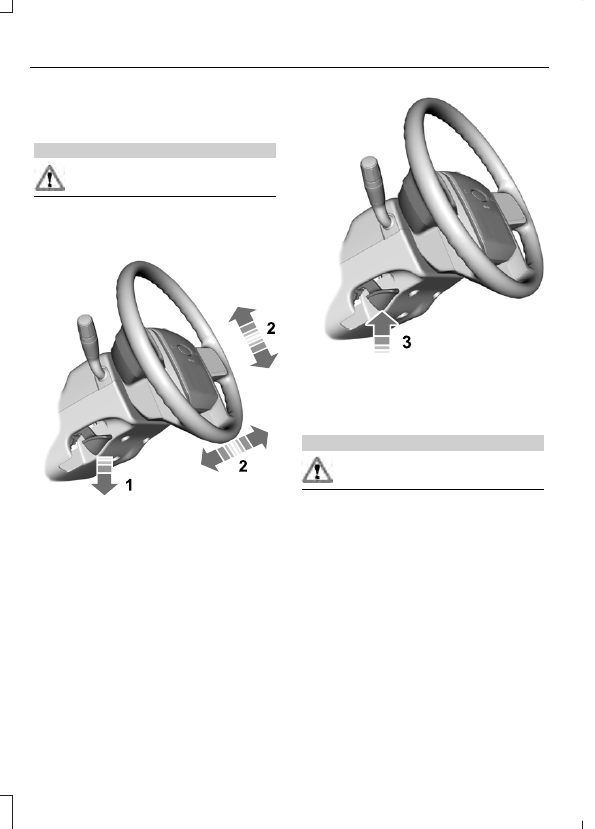

ADJUSTING THE STEERING
WHEEL

 (If Equipped)

WARNING

Do not adjust the steering wheel
when your vehicle is moving.

Note: Make sure that you are sitting in the
correct position.  See Sitting in the Correct
Position (page 152).

E183047

1.

Unlock the steering column.

2. Adjust the steering wheel to the desired

position.

E183049

3. Lock the steering column.

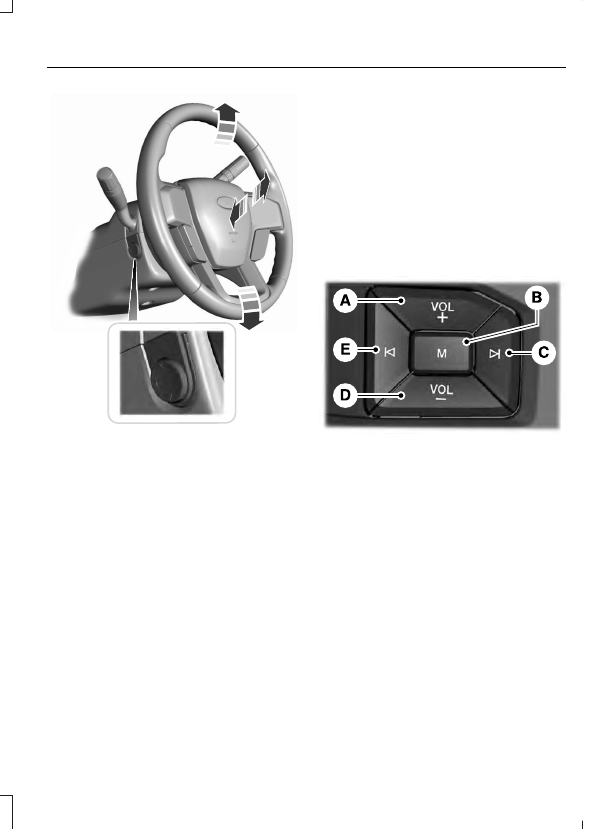

Power Tilt and Telescope Steering
Column

 (If Equipped)

WARNING

Do not adjust the steering wheel
when your vehicle is moving.

Note: Make sure that you are sitting in the
correct position.  See Sitting in the Correct
Position (page 152).

E180535

Use the control on the side of the steering
column to adjust the position.

To adjust:
•

Tilt: press the top or bottom of the
control

•

Telescope: press the front or rear of the
control.

Memory Feature

You can save and recall the steering
column position with the memory function.
See Memory Function (page 157).

Pressing the adjustment control during
memory recall cancels the operation. The
column responds to the adjustment
control.

Easy Entry and Exit Feature

The column moves to the full up and in
position when you switch the ignition off.
It returns to the previous setting when you
switch the ignition on. You can enable or
disable this feature in the information
display.

AUDIO CONTROL

 (If Equipped)

You can operate the following functions
with the control:

E191327

Volume up.

A

Media.

B

Seek up or next.

C

Volume down.

D

Seek down or previous.

E

Media

Press repeatedly to scroll through available
audio modes.

Seek, Next or Previous

Press the seek button to:
•

Tune the radio to the next or previous
stored preset.

•

Play the next or previous track.

Press and hold the seek button to:
•

Tune the radio to the next station up
or down the frequency band.

•

Seek through a track.

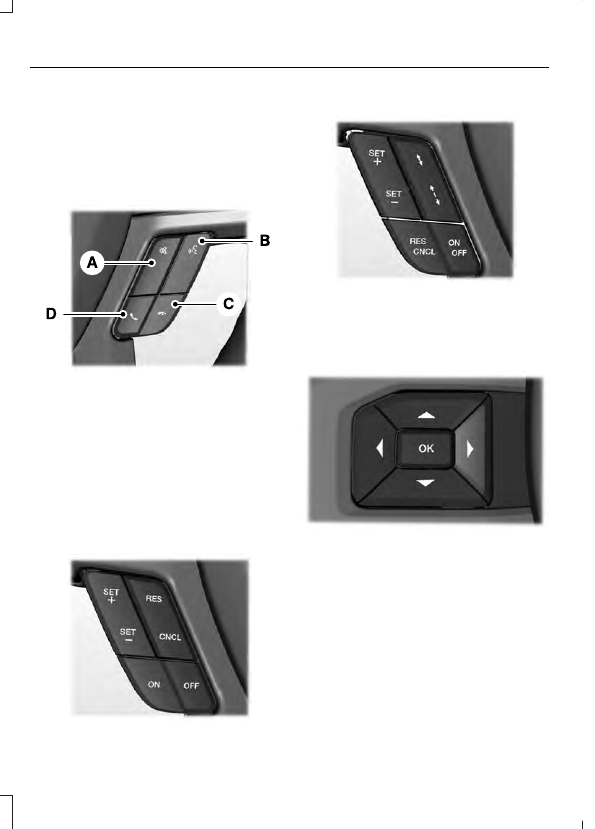

VOICE CONTROL

 (If Equipped)

E191328

Mute.

A

Voice recognition.

B

End call.

C

Answer call.

D

See your SYNC information.

CRUISE CONTROL

 (If Equipped)

Type 1

E191329

Type 2

E191337

See Cruise Control (page 239).

INFORMATION DISPLAY
CONTROL

E191336

See Information Displays (page 111).

HEATED STEERING WHEEL

 (If

Equipped)

See your SYNC information.

ADJUSTING THE PEDALS

WARNING

Never use the pedal adjustment
controls when your feet are on the
accelerator or brake pedal when the

vehicle is moving.

You can find the control on the left side of
the instrument panel. Press and hold the
appropriate side of the control to move the
pedals.

A

B

E162916

A. Farther

B. Closer

You can save and recall the pedal positions
with the memory feature.  See Memory
Function (page 157).

Note: Adjust the pedals only when your
vehicle is in P (Park).

 (If Equipped)
