Ford F-450 (2017 year). Manual - part 13

E226462

Press the release button and pull the key
blade out.

E151795

Note:  Your vehicle keys came with a
security label that provides important key
cut information.  Keep the label in a safe
place for future reference.

Replacing the Battery

Note: Refer to local regulations when
disposing of transmitter batteries.

Note: Do not wipe off any grease on the
battery terminals or on the back surface of
the circuit board.

Note:  Replacing the battery does not erase
the programmed key from your vehicle.  The
transmitter should operate normally.

A message appears in the information
display when the remote control battery
is low.  See General Information (page
111).

Integrated Keyhead Transmitter

The remote control uses one coin-type
three-volt lithium battery CR2032 or
equivalent.

Press the button to release the key blade
before beginning the procedure.

E191533

1.

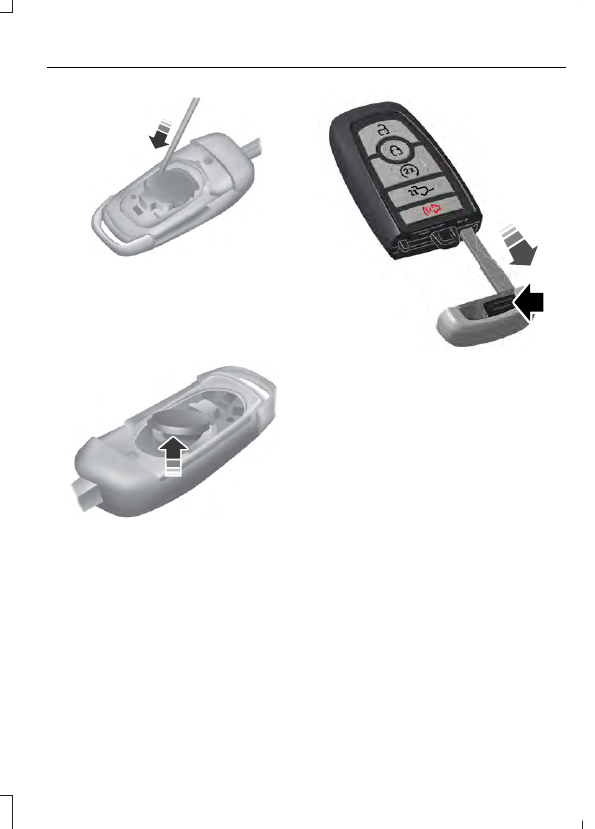

Insert a suitable tool, for example a
screwdriver, in the position shown and
gently push the clip.

2. Press the clip down to release the

battery cover.

E151799

3. Carefully remove the cover.

E151800

Note: Do not touch the battery contacts or
the printed circuit board with the
screwdriver.

4. Insert a suitable tool, for example a

screwdriver, in the position shown to
release the battery.

E151801

5. Remove the battery.

6. Insert a new battery with the + facing

upward.

7.

Reinstall the battery housing cover
onto the transmitter.

Intelligent Access Key

The remote control uses one coin-type
three-volt lithium battery CR2032 or
equivalent.

E226462

1.

Press the release button and pull the
key blade out.

E218401

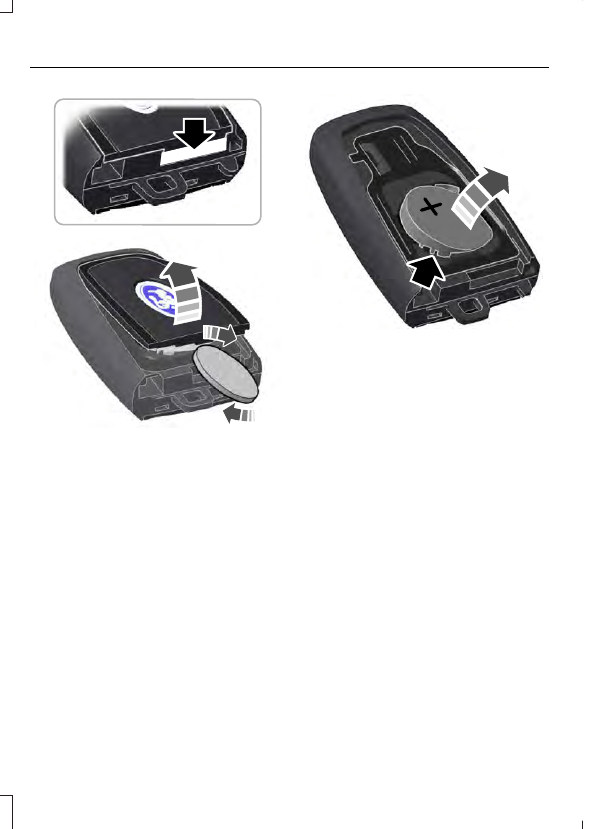

2. Twist a thin coin under the tab hidden

behind the key blade head to remove
the battery cover.

E218402

3. Insert a suitable tool, for example a

screwdriver, in the position shown and
carefully remove the battery.

4. Insert a new battery with the + facing

upward.

5. Reinstall the battery housing cover

onto the transmitter and install the key
blade.

Memory Feature

 (If Equipped)

You can use the remote control to recall
memory positions.

Press the unlock button on a linked remote
control to recall memory positions. If you
enable the easy entry and exit feature, the
seat moves to the easy entry position. The
seat moves to the driver memory position
when you switch the ignition on.

Linking a Preset Position to your
Remote Control

See Memory Function (page 157).

Car Finder

E138623

Press the button twice within
three seconds.  A tone sounds
and the direction indicators will

flash.  We recommend you use this method
to locate your vehicle, rather than using
the panic alarm.

Sounding the Panic Alarm

E138624

Press the button to sound the
panic alarm.  Press the button
again or switch the ignition on to

turn it off.

Note: The panic alarm only operates when
the ignition is off.

Remote Start

 (If Equipped)

WARNING

To avoid exhaust fumes, do not use
remote start if your vehicle is parked
indoors or in areas that are not well

ventilated.

Note: Do not use remote start if your fuel
level is low.

E138625

The remote start button is on the
transmitter.

This feature allows you to start your
vehicle from the outside. The transmitter
has an extended operating range.

You can configure vehicles with automatic
climate control to turn on the automatic
climate control when you remote start your
vehicle.  See Automatic Climate Control
(page 146).  A manual climate control
system runs at the setting you set it to
when you switched your vehicle off.

Many states and provinces restrict the use
of remote start. Check your local and state
or provincial laws for specific requirements
regarding remote start systems.

The remote start system does not work if
any of the following occur:
•

The ignition is on.

•

The anti-theft alarm triggers.

•

You switch off the feature.

•

The hood is open.

•

The transmission is not in park (P).

•

The battery voltage is below the
minimum operating voltage.

•

The service engine soon light is on.

Remote Control Feedback

An LED on the remote control provides
status feedback of remote start or stop
commands.

Status

LED

Remote start or

extension

successful

Solid green

Remote stop

successful; vehicle

off

Solid red

Remote start or

stop failed

Blinking red

Waiting for status

update

Blinking green

Remote Starting Your Vehicle

Note: You must press each button within
three seconds of each other.

E138626
