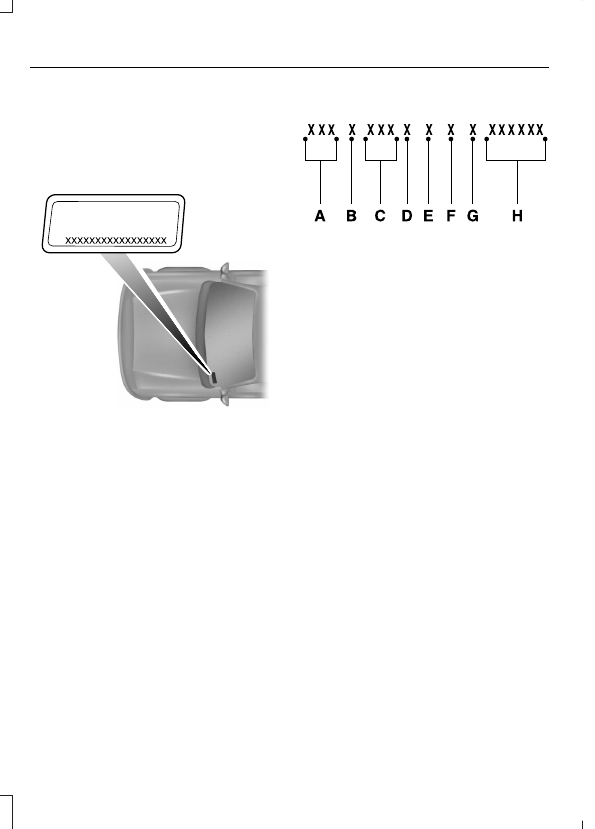

VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is
located on the left-hand side of the
instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION
LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door latch,
next to the driver's seating position.

TRANSMISSION CODE
DESIGNATION

E167814

The transmission code is on the Safety
Compliance Certification Label. The
following table shows the transmission
code along with the transmission
description.

Code

Description

P

Six -speed automatic transmission 6R140

S

Six -speed automatic transmission 6R100

W

Six -speed automatic transmission 6R140W

CAPACITIES AND SPECIFICATIONS - 6.2L

Capacities

WARNING

The air conditioning refrigerant system contains refrigerant under high pressure.
Only qualified personnel should service the air conditioning refrigerant system.
Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

7.0 qt (6.6 L)

Engine oil (with oil filter)

21.3 qt (20.2 L)

Engine coolant

Between MIN and MAX on brake fluid

reservoir

Brake fluid

2.7 qt (2.6 L)

Front axle

3.3–3.5 qt (3.1–3.3 L)

Rear axle-10.5 inch (E-Locker)

3.5–3.6 qt (3.3–3.4 L)

Rear axle-10.5 inch (non E-Locker)

3.8 qt (3.63 L)

Rear axle-Dana M275

4.5 qt (4.26 L)

*

Rear axle-Dana M300

16.7 qt (15.8 L)

**

Automatic transmission fluid (6R100)

17.4 qt (16.5 L)

**

Automatic transmission fluid (6R140)

1.9 qt (1.8 L)

Transfer case fluid

Fill as required

Windshield washer fluid

26.5 gal (100.3 L)

Fuel tank (incomplete vehicle, middle
location)

34 gal (128.7 L)

Fuel tank (All except 176 inch wheelbase
and incomplete vehicles)

48 gal (181.7 L)

Fuel tank (176 inch wheelbase)

40 gal (151.4 L)

Fuel tank (incomplete vehicle, Aft- axle -
location)

Capacity

Item

27 oz (0.77 kg)

A/C refrigerant

4.1 fl oz (120 ml)

A/C refrigerant compressor oil

*

For complete refill of limited slip Ford axles add 8.8 fl oz. (260ml) of Additive Friction

Modifier XL-3 or equivalent meeting Ford Specification EST-M2C118-A.

**

Approximate dry fill capacity. Actual amount may vary during fluid changes.

Specifications

Materials

Specification

Name

WSS-M2C946-A

Recommended motor oil (U.S.):
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor
Oil
XO-5W30-QSP

WSS-M2C946-A

Recommended motor oil (Canada):
Motorcraft® SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP12

WSS-M2C946-A

Optional motor oil (U.S.):
Motorcraft® SAE 5W-30 Full Synthetic Motor Oil
XO-5W30-QFS

WSS-M2C946-A

Optional motor oil (Canada):
Motorcraft® SAE 5W-30 Synthetic Motor Oil
CXO-5W30-LFS12

WSS-M97B44-D2

Engine coolant (U.S.):
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance
Motor Vehicle Brake Fluid
PM-20

WSP-M2C197-A

Front axle fluid :
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL
