Tire Pressure Monitoring System

Action

Message

One or more tires on your vehicle has low tire pressure.  See

Tire Pressure Monitoring System (page 395).

Tire Pressure Low

The tire pressure monitoring system is malfunctioning. If the

warning stays on or continues to come on, contact an

authorized dealer.  See Tire Pressure Monitoring System

(page 395).

Tire Pressure Monitor

Fault

A tire pressure sensor is malfunctioning or your spare tire is in

use.  See Tire Pressure Monitoring System (page 395).  If

the warning stays on or continues to come on, contact an

authorized dealer as soon as possible.

Tire Pressure Sensor

Fault

Trailer

Action

Message

The current gain setting for the trailer brake.

Trailer Brake Gain: {trailer gain

value:#0.0}

The current gain setting for the trailer brake when a

trailer is not connected.

Trailer Brake Gain: {trailer gain

value:#0.0} No Trailer

Faults sensed in the Integrated Trailer Brake Control

Module followed by a single chime.  See Towing a

Trailer (page 276).

Trailer Brake Module Fault

A correct trailer connection is sensed during a given

ignition cycle.

Trailer Connected

A trailer connection becomes disconnected, either

intentionally or unintentionally, and has been sensed

during a given ignition cycle.

Trailer Disconnected

The trailer sway control has detected trailer sway.

Trailer Sway Reduce Speed

There are certain faults in your vehicle wiring and trailer
wiring/brake system.  See Towing a Trailer (page 276).

Trailer Wiring Fault

There is a fault with your trailer turn lamp. Check your

lamp.

Trailer Left Turn Lamps Fault

Check Lamps

Action

Message

There is a fault with your trailer turn lamp. Check your

lamp.

Trailer Right Turn Lamps Fault

Check Lamps

There is a fault with your trailer battery.  See Towing

a Trailer (page 276).

Trailer Battery Not Charging See

Manual

There is a fault with your vehicle trailer lighting module.

See Towing a Trailer (page 276).

Trailer Lighting Module Fault

See Manual

4WD

Action

Message

A 4X4 system fault is present. Contact an authorized

dealer as soon as possible.

Check 4x4

The 4X4 system is making a shift.

4x4 Shift in Progress

Displays when you attempt to switch to 4X4 LOW and

you do not shift the transmission to neutral (N).

For 4x4 LOW Shift to N

Displays when you attempt to switch to 4X4 LOW and

your vehicle's speed is greater than 3 mph (5 km/h).

For 4x4 LOW Slow to 3 MPH

Displays when you attempt to switch from 4X4 LOW

and you do not shift the transmission to neutral (N).

To Exit 4x4 LOW Shift to N

Displays when you attempt to switch from 4X4 LOW

and your vehicle's speed is greater than 3 mph

(5 km/h).

To Exit 4x4 LOW Slow to 3 MPH

May display when there is a Transfer case gear tooth

blockage while shifting to or from 4L or to the neutral

state.

Shift Delayed Pull Forward

Displays when the system turns off the clutch due to

excessive stress. The system automatically turns on

the clutch after it cools.

4x4 Temporarily Disabled

Displays when the 4X4 system restores to the 4A

setting.

4x4 Restored

Displays when the 4X4 system temporarily turns on

4H from 4A after detecting driving conditions that

require greater 4X4 performance. The system automat-
ically returns to 4A after the system no longer detects

these driving conditions.

4x4 Temporarily Locked

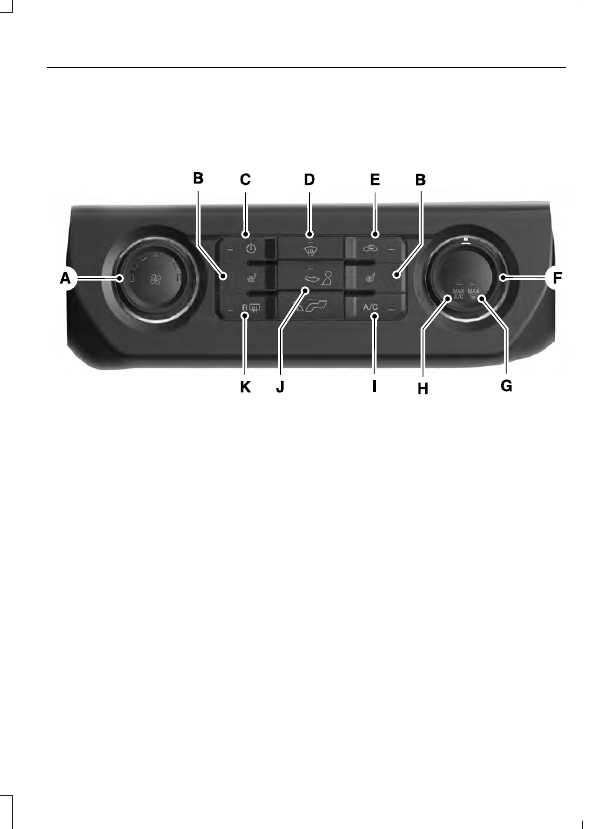

MANUAL CLIMATE CONTROL

 (If Equipped)

E217932

Fan speed control: Adjusts the volume of air circulated in the vehicle.

A

Heated seats: Press to switch the heated seats on and off.  See Heated Seats
(page 152).

B

Power: Press to switch the system on and off. When the system is off, it
prevents outside air from entering the vehicle.

C

Defrost: Press to distribute air through the windshield air vents and de-mister.
You can also use this setting to defog and clear the windshield of a thin covering
of ice.

D

Recirculated air: Press to switch between outside air and recirculated air. The
air currently in the passenger compartment recirculates. This may reduce the
time needed to cool the interior (when used with A/C) and reduce unwanted
odors from entering your vehicle.

E

Note: Recirculated air may turn off (or prevent you from switching on) in all air
flow modes except MAX A/C to reduce the risk of fogging. Recirculation may
also turn on and off in Panel or Panel/Floor air flow modes during hot weather
in order to improve cooling efficiency.

Temperature control: Adjusts the temperature of the air circulated in your
vehicle.

F

MAX Defrost: Turn to the right to switch on defrost. Air flows through the
windshield vents and the fan adjusts to the highest speed. You can also use
this setting to defog and clear the windshield of a thin covering of ice. The heated
rear window also turns on when you select maximum defrost.

G

Note: To prevent window fogging, you cannot select recirculated air when
maximum defrost is on.

MAX A/C: Turn to the left for maximum cooling. Recirculated air flows through
the instrument panel vents, air conditioning turns on and the fan adjusts to the
highest speed.

H

A/C: Press to switch the air conditioning on or off. Use A/C with recirculated
air to improve cooling performance and efficiency.

I

Note: In certain conditions (for example, maximum defrost), the air conditioning
compressor may continue to operate even though you switch off the air
conditioning.

Air distribution control: Press to switch air flow from the windshield,
instrument panel or footwell vents on or off. You can distribute air through any
combination of these vents.

J

Note: At least one of these buttons illuminates on when the system is on.

Heated rear window: Press to switch the heated rear window on and off.  See
Heated Windows and Mirrors (page 143).

K
