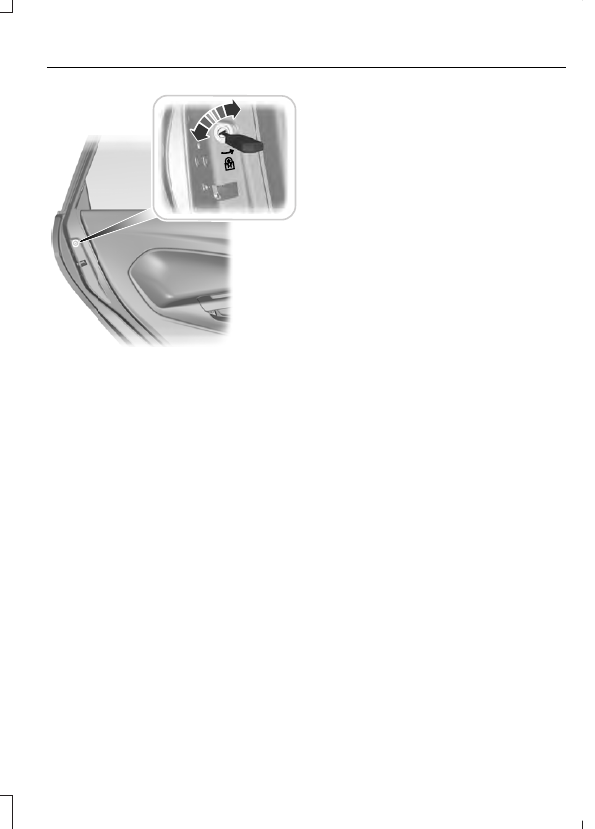

E112197

The childproof locks are located on the
rear edge of each rear door and must be
set separately for each door.

Left-Hand Side

Turn counterclockwise to lock and
clockwise to unlock.

Right-Hand Side

Turn clockwise to lock and
counterclockwise to unlock.

PRINCIPLE OF OPERATION

WARNINGS

Always drive and ride with your
seatback upright and the lap belt
snug and low across the hips.

To reduce the risk of injury, make
sure children sit where they can be
properly restrained.

Never let a passenger hold a child on
his or her lap while the vehicle is
moving. The passenger cannot

protect the child from injury in a crash,
which may result in serious injury or death.

All occupants of the vehicle,
including the driver, should always
properly wear their safety belts, even

when an airbag supplemental restraint
system is provided. Failure to properly wear
your safety belt could seriously increase
the risk of injury or death.

It is extremely dangerous to ride in a
cargo area, inside or outside of a
vehicle. In a crash, people riding in

these areas are more likely to be seriously
injured or killed. Do not allow people to ride
in any area of your vehicle that is not
equipped with seats and safety belts. Be
sure everyone in your vehicle is in a seat
and using a safety belt properly.

In a rollover crash, an unbelted
person is significantly more likely to
die than a person wearing a safety

belt.

Each seating position in your vehicle
has a specific safety belt assembly
which is made up of one buckle and

one tongue that are designed to be used
as a pair. 1) Use the shoulder belt on the
outside shoulder only. Never wear the
shoulder belt under the arm. 2) Never
swing the safety belt around your neck over
the inside shoulder. 3) Never use a single
belt for more than one person.

WARNINGS

When possible, all children 12 years
old and under should be properly
restrained in a rear seating position.

Failure to follow this could seriously
increase the risk of injury or death.

Safety belts and seats can become
hot in a vehicle that has been closed
up in sunny weather; they could burn

a small child. Check seat covers and
buckles before you place a child anywhere
near them.

Front and rear seat occupants,
including pregnant women, should
wear safety belts for optimum

protection in an accident.

All seating positions in this vehicle have
lap and shoulder safety belts. All
occupants of the vehicle should always
properly wear their safety belts, even when
an airbag supplemental restraint system
is provided.

The safety belt system consists of:
•

Lap and shoulder safety belts.

•

Shoulder safety belt with automatic
locking mode, (except driver safety
belt).

•

Height adjuster at the front outboard
seating positions.

•

Safety belt pretensioner at the front
outboard seating positions.

E71880

•

Safety belt warning light and chime.

E67017

•

Crash sensors and monitoring system
with readiness indicator.

The safety belt pretensioners at the front
seating positions are designed to tighten
the safety belts when activated. In frontal
and near-frontal crashes, the safety belt
pretensioners may be activated alone or,
if the crash is of sufficient severity, together
with the front airbags. In side crashes and
rollovers, the pretensioners will be
activated when the Safety Canopy is
activated.

FASTENING THE SEATBELTS

Standard belts shown, inflatable belts
similar

The front outboard and rear safety
restraints in the vehicle are combination
lap and shoulder belts.

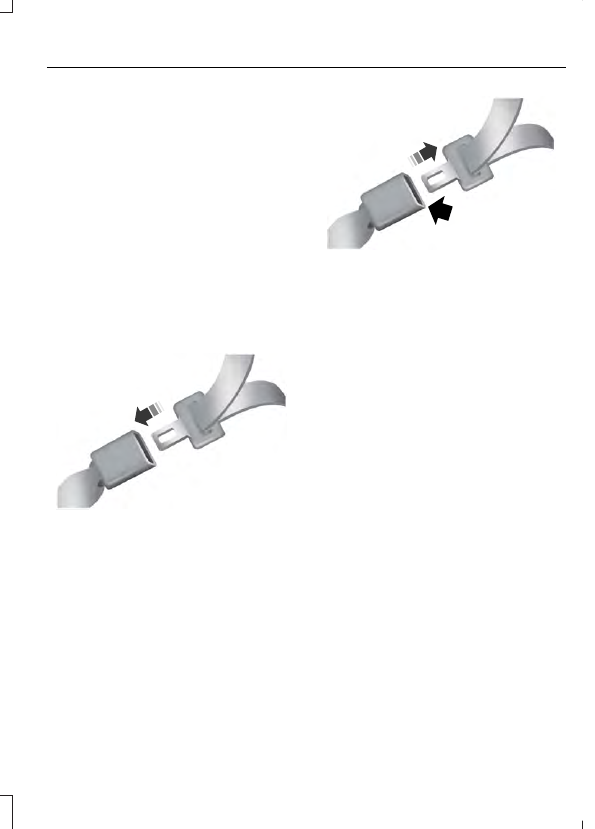

E142587

1.

Insert the belt tongue into the proper
buckle (the buckle closest to the
direction the tongue is coming from)
until you hear a snap and feel it latch.
Make sure you securely fasten the
tongue in the buckle.

E142588

2. To unfasten, press the release button

and remove the tongue from the
buckle.

Using the Seatbelt with Cinch
Tongue (Front Center Seat)

The cinch tongue slides up and down the
seatbelt webbing when you stow the belt
or when you put the seatbelts on. When
you buckle the lap and shoulder seatbelt,
the cinch tongue allows you to shorten the
lap portion, but pinches the webbing to
keep the lap portion from getting longer.
The cinch tongue is designed to slip during
a crash, so always wear the shoulder belt
properly and do not allow any slack in
either the lap or shoulder portions.

Before you can reach and latch a lap and
shoulder belt having a cinch tongue into
the buckle, you may have to lengthen the
lap belt portion of it.

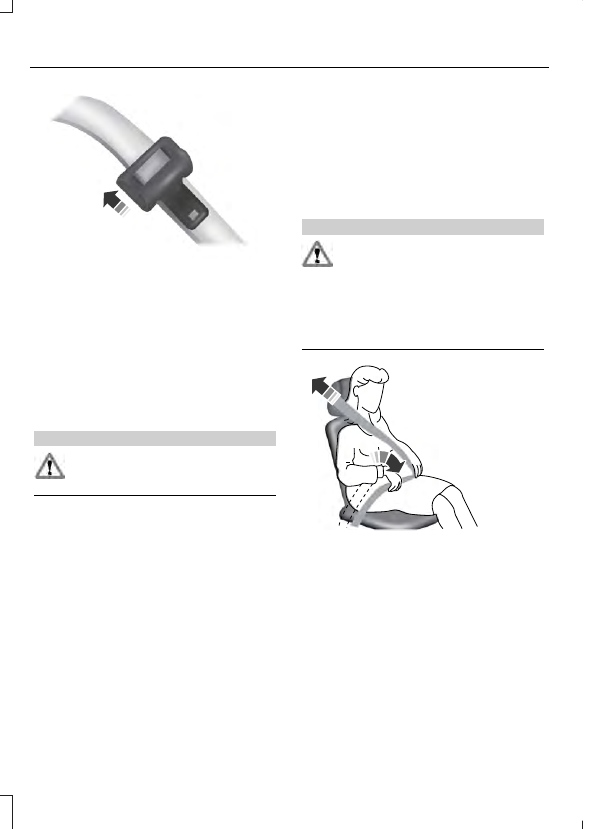

E162708

1.

To lengthen the lap belt, pull some
seatbelt webbing out of the shoulder
belt retractor.

2. While holding the webbing below the

tongue, grasp the tip (metal portion)
of the tongue so that it is parallel to the
webbing and slide the tongue upward.

3. Provide enough lap belt length so that

the tongue can reach the buckle.

Fastening the Cinch Tongue

WARNING

Always drive and ride with your
seatback upright and the lap belt
snug and low across the hips.

1.

Pull the lap and shoulder belt from the
retractor so that the shoulder belt
portion of the seatbelt crosses your
shoulder and chest.

2. Be sure the belt is not twisted. If the

belt is twisted, remove the twist.

3. Insert the belt tongue into the proper

buckle for your seating position until
you hear a snap and feel it latch.

4. Make sure you securely fasten the

tongue to the buckle by pulling on the
tongue.

While you are fastened in the seatbelt, the
lap and shoulder belt with a cinch tongue
adjusts to your movement. However, if you
brake hard, turn hard, or if your vehicle
receives an impact of 5 mph (8 km/h) or
more, the seatbelt locks and helps reduce
your forward movement.

Using Seatbelts During Pregnancy

WARNING

Always ride and drive with your
seatback upright and properly fasten
your seatbelt. Fit the lap portion of

the seatbelt snugly and low across the
hips. Position the shoulder portion of the
seatbelt across your chest. Pregnant
women must follow this practice. See the
following figure.

E142590

Pregnant women should always wear their
seatbelt. Position the lap belt portion of a
combination lap and shoulder belt low
across the hips below the belly and worn
as tight as comfort allows. Position the
shoulder belt to cross the middle of the
shoulder and the center of the chest.
