Ford F-150 (2018 year). Manual - part 4

Recommendations for Safety Restraints for Children

Recommended restraint

type

Child size, height, weight, or age

Child

Use a child safety seat

(sometimes called an

infant carrier, convertible

seat, or toddler seat).

Children weighing 40 lb (18 kg) or less

(generally age four or younger).

Infants or

toddlers

Use a belt-positioning

booster seat.

Children who have outgrown or no longer

properly fit in a child safety seat (gener-

ally children who are less than 4 ft. 9 in.

(1.45 m) tall, are greater than age four

and less than age 12, and between 40 lb

(18 kg) and 80 lb (36 kg) and upward to

100 lb (45 kg) if recommended by your

child restraint manufacturer).

Small children

Use a vehicle safety belt

having the lap belt snug

and low across the hips,

shoulder belt centered

across the shoulder and

chest, and seatback

upright.

Children who have outgrown or no longer

properly fit in a belt-positioning booster

seat (generally children who are at least

4 ft. 9 in. (1.45 m) tall or greater than

80 lb (36 kg) or 100 lb (45 kg) if recom-

mended by child restraint manufacturer).

Larger children

•

You are required by law to properly use
safety seats for infants and toddlers in
the United States and Canada.

•

Many states and provinces require that
small children use approved booster
seats until they reach age eight, a
height of 4 feet 9 inches (1.45 meters)
tall, or 80 lb (36 kg). Check your local
and state or provincial laws for specific
requirements about the safety of
children in your vehicle.

•

When possible, always properly
restrain children 12 years of age and
under in a rear seating position of your
vehicle. Accident statistics suggest that
children are safer when properly
restrained in the rear seating positions
than in a front seating position.  See
Front Passenger Sensing System
(page 49).

INSTALLING CHILD
RESTRAINTS

Child Seats

E142594

Use a child safety seat (sometimes called
an infant carrier, convertible seat, or
toddler seat) for infants, toddlers, or
children weighing 40 pounds (18
kilograms) or less (generally age four or
younger).

Using Lap and Shoulder Belts
(Except Front Center Position of
Super Cab and Crew Cab)

WARNINGS

Airbags can kill or injure a child in a
child restraint. Never place a
rear-facing child restraint in front of

an active airbag. If you must use a
forward-facing child restraint in the front
seat, move the seat upon which the child
restraint is installed all the way back.

Airbags can kill or injure a child in a
child restraint. Properly restrain
children 12 and under in the rear seat

whenever possible.

Depending on where you secure a
child restraint, and depending on the
child restraint design, you may block

access to certain seatbelt buckle
assemblies and LATCH lower anchors,
rendering those features potentially
unusable. To avoid risk of injury, make sure
occupants only use seating positions
where they are able to be properly
restrained.

When installing a child safety seat with
combination lap and shoulder belts:
•

Use the correct seatbelt buckle for that
seating position.

•

Insert the belt tongue into the proper
buckle until you hear a snap and feel it
latch. Make sure the tongue is securely
fastened in the buckle.

•

Keep the buckle release button
pointing up and away from the safety
seat, with the tongue between the child
restraint and the release button, to
prevent accidental unbuckling.

•

Place the vehicle seat upon which the
child restraint will be installed in the
upright position.

•

Put the seatbelt in the automatic
locking mode. This vehicle does not
require the use of a locking clip.

Perform the following steps when
installing the child restraint with
combination lap and shoulder belts:

Note: Although the child restraint
illustrated is a forward facing child restraint,
the steps are the same for installing a rear
facing child restraint.

E142528

1.

Position the child safety seat in a seat
with a combination lap and shoulder
belt.

E142529

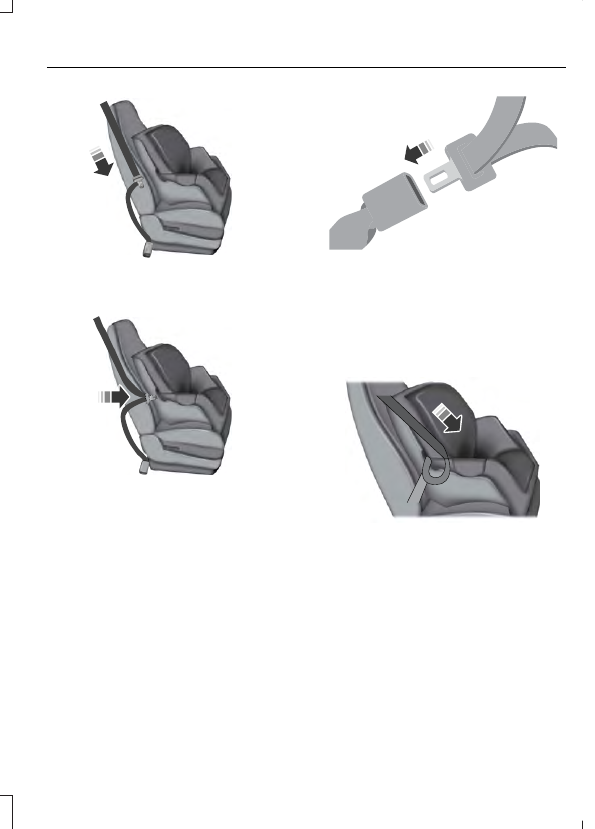

2. Pull down on the shoulder belt and

then grasp the shoulder belt and lap
belt together.

E142530

3. While holding the shoulder and lap belt

portions together, route the tongue
through the child restraint according
to the child restraint manufacturer's
instructions. Make sure the belt
webbing is not twisted.

E142531

4. Insert the belt tongue into the proper

buckle (the buckle closest to the
direction the tongue is coming from)
for that seating position until you hear
a snap and feel the latch engage. Make
sure the tongue is latched securely by
pulling on it.

E142875

5. To put the retractor in the automatic

locking mode, grasp the shoulder
portion of the belt and pull downward
until you pull all of the seatbelt out.

Note: The automatic locking mode is
available on the front passenger and rear
seats. This vehicle does not require the use
of a locking clip.

6. Allow the belt to retract to remove

slack. The belt will click as it retracts
to indicate it is in the automatic locking
mode.

7.

Try to pull the seatbelt out of the
retractor to make sure the retractor is
in the automatic locking mode (you
should not be able to pull more belt
out). If the retractor is not locked,
unbuckle the belt and repeat Steps 5
and 6.

E142533

8. Remove remaining slack from the belt.

Force the seat down with extra weight,
for example, by pressing down or
kneeling on the child restraint while
pulling up on the shoulder belt in order
to force slack from the belt. This is
necessary to remove the remaining
slack that will exist once the extra
weight of the child is added to the child
restraint. It also helps to achieve the
proper snugness of the child restraint
to your vehicle. Sometimes, a slight
lean toward the buckle helps to remove
remaining slack from the belt.

9. Attach the tether strap (if the child

restraint is equipped).

E142534

10.

Before placing the child in the seat,
forcibly move the seat forward and
back to make sure the seat is securely
held in place.

To check this, grab the seat at the belt path
and attempt to move it side to side and
forward and back. There should be no
more than 1 inch (2.5 centimeters) of
movement for proper installation.

We recommend checking with a NHTSA
Certified Child Passenger Safety
Technician to make certain the child
restraint is properly installed. In Canada,
check with Transport Canada for referral
to a Child Car Seat Clinic.

Using Lap and Shoulder Belts
(Front Center Position of Super
Cab and Crew Cab)

WARNINGS

Airbags can kill or injure a child in a
child restraint. Never place a
rear-facing child restraint in front of

an active airbag. If you must use a
forward-facing child restraint in the front
seat, move the seat upon which the child
restraint is installed all the way back.

Always use both the lap and
shoulder portion of the seatbelt in
the center seating position.
