Ford Expedition (2018 year). Manual - part 95

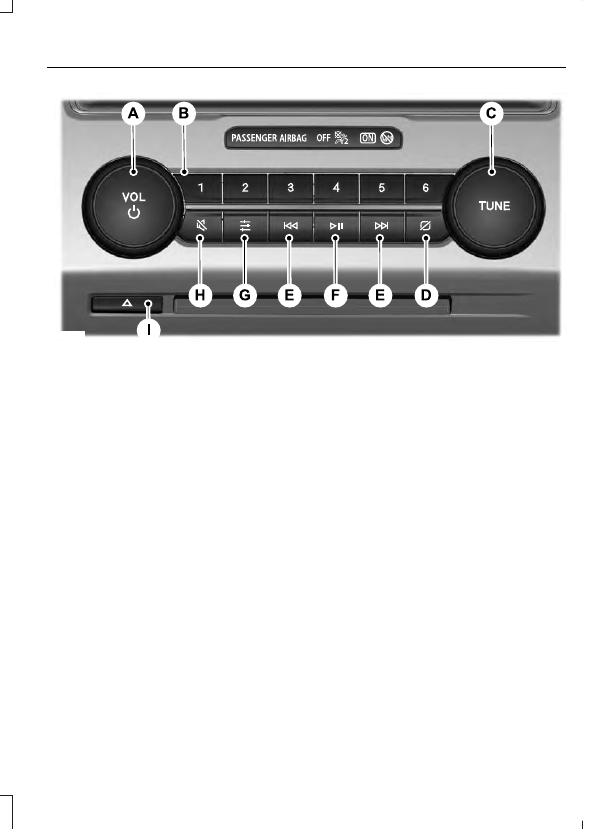

E246805

Vol and Power:

 Turn to adjust the volume. Press to switch the system on and

off.

A

Memory presets:

 Store your favorite radio stations. To store a radio station,

tune to the station, then press and hold a preset button until sound returns.

B

TUNE:

 In radio mode, turn to search through the radio frequency band. In SIRIUS

mode, turn to find the previous or next available satellite radio station.

C

Display:

 Press to switch the display on and off.

D

Seek, Fast Forward and Reverse:

 In radio mode, select a frequency band

and press either button. The system stops at the first station it finds in that
direction. In CD or AUX mode, press to select the next or previous track. Press
and hold to move quickly forward or backward through the current track. In
SIRIUS mode, press to select the next or previous satellite radio station. If you
select a specific category (such as jazz, rock or news), press to find the next or
previous station in the category you select.

E

Play/Pause:

 Press to either play or pause an audio track

F

Sound settings:

 Press to access the sound settings.

G

MUTE:

 Press to mute the playing audio.

H

Eject:

 Press to eject a CD.

I

DIGITAL RADIO

 (If Equipped)

Note:

HD Radio broadcasts are not

available in all markets.

HD Radio technology is the digital
evolution of analog AM/FM radio. Your
system has a special receiver that allows
it to receive digital broadcasts (where
available) in addition to the analog
broadcasts, it already receives. Digital
broadcasts provide a better sound quality
than analog broadcasts with free,
crystal-clear audio and no static or
distortion. For more information, and a
guide to available stations and
programming, please visit
www.hdradio.com.

When HD Radio is on and you tune to a
station broadcasting HD Radio technology,
you may notice the HD Radio logo on your
screen. When this logo is available, you
may also see Title and Artist fields
on-screen.

The multicast indicator appears in FM
mode (only) if the current station is
broadcasting multiple digital broadcasts.
The highlighted numbers signify available
digital channels where new or different
content is available. HD1 signifies the main
programming status and is available in
analog and digital broadcasts. Other
multicast stations (HD2 through HD7) are
only available digitally.

When HD Radio broadcasts are active, you
can access the following functions:
•

Scan allows you to hear a brief
sampling of all available stations. This
feature still works when HD Radio
reception is on, although it does not
scan for HD2-HD7 channels. You may
see the HD logo appear if the station
has a digital broadcast.

•

Memory presets

 allow you to save an

active channel as a memory preset.
Touch and hold a memory preset slot
until the sound returns. There is a brief
mute while the radio saves the station.
Sound returns when finished. When
switching to an HD2 or HD3 memory
preset, the sound mutes before the
digital audio plays, because the system
has to reacquire the digital signal.

Note:

As with any saved radio station, you

cannot access a station you save if your
vehicle is outside the station’s reception
area.

HD Radio Reception and Station Troubleshooting

Potential Reception Issues

If you are listening to a multicast station and you are on
the fringe of the reception area, the station may mute due
to weak signal strength.

Reception area

If you are listening to HD1, the system switches back to
the analog broadcast until the digital broadcast is available
again. However, if you are listening to any of the possible
HD2-HD7 multicast channels, the station mutes and stays
muted unless it is able to connect to the digital signal
again.

When the system first receives a station (aside from HD2-
HD7 multicast stations), it first plays the station in the
analog version. Once the receiver verifies the station is an
HD Radio station, it shifts to the digital version. Depending
on the station quality, you may hear a slight sound change
when the station changes from analog to digital. Blending
is the shift from analog to digital sound or digital back to
analog sound.

Station blending

In order to provide the best possible
experience, use the contact form to report
any station issues found while listening to
a station broadcasting with HD Radio
technology. Independent entities own and
operate each station. These stations are
responsible for ensuring all audio streams
and data fields are accurate.

Potential Station Issues

Action

Cause

Issues

No action required.  This is a
broadcast issue.

This is poor time alignment
by the radio broadcaster.

Echo, stutter, skip or repeat
in audio.
Increase or decrease in
audio volume.

No action required.  The
reception issue may clear up
as you continue to drive.

The radio is shifting between
analog and digital audio.

Sound fading or blending in
and out.

No action required.  This is
normal behavior.  Wait until
the audio is available.

The digital multicast is not
available until the HD Radio
broadcast is decoded. Once
decoded, the audio is avail-
able.

There is an audio mute
delay when selecting HD2 or
HD3, multicast preset or
Direct Tune.

No action required.  The
station is not available in
your current location.

The previously stored
multicast preset or direct
tune is not available in your
current reception area.

Cannot access HD2 or HD3
multicast channel when
recalling a preset or from a
direct tune.

Fill out the station issue
form at website listed

below.

*

Data service issue by the
radio broadcaster.

Text information does not
match currently playing
audio.

Fill out the station issue
form at website listed

below.

*

Data service issue by the
radio broadcaster.

There is no text information
shown for currently selected
frequency.

No action required.  This is
normal behavior.

Pressing Scan disables
HD2-HD7 channel search.

HD2-HD7 stations not found
when Scan is pressed.

*

http://hdradio.com/stations/feedback

HD Radio Technology manufactured under
license from DTS U.S. and foreign patents.
HD Radio and the HD and HD Radio logos
are proprietary trademarks of DTS Ford
Motor Company and DTS are not
responsible for the content sent using HD
Radio technology. Content may be
changed, added or deleted at any time at
the station owner's discretion.

SATELLITE RADIO

 (If Equipped)

SiriusXM® broadcasts a variety of music,
news, sports, weather, traffic and
entertainment satellite radio channels. For
more information and a complete list of
SiriusXM satellite radio channels, visit
www.siriusxm.com in the United States,
www.siriusxm.ca in Canada, or call
SiriusXM at 1-888-539-7474.
