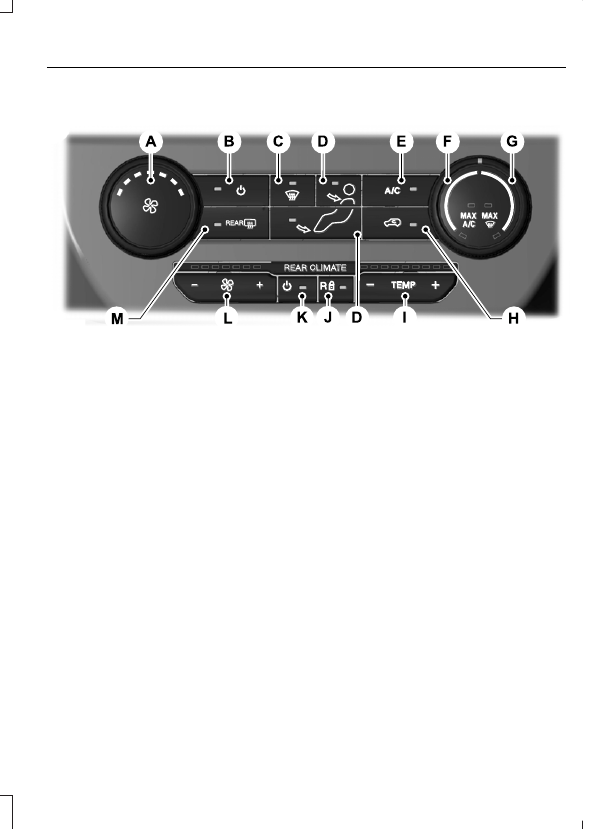

MANUAL CLIMATE CONTROL

 (If Equipped)

E246798

Fan speed control:

 Adjusts the volume of air circulated in the vehicle.

A

Power:

 Press to switch the system on and off. When the system is off, it

prevents outside air from entering the vehicle.

B

Defrost:

 Press to distribute air through the windshield air vents and de-mister.

Air distribution to the instrument panel and footwell vents turns off. You can
also use this setting to defog and clear the windshield of a thin covering of ice.

C

Air distribution control:

 Press to switch air flow from the instrument panel

or footwell vents on or off. You can distribute air through any combination of
these vents.

D

A/C:

 Press to switch the air conditioning on or off. Use A/C with recirculated

air to improve cooling performance and efficiency.

E

Note:

 In certain conditions (for example, maximum defrost), the air conditioning

compressor may continue to operate even though you switch off the air
conditioning.

MAX A/C:

 Turn to the left for maximum cooling. Recirculated air flows through

the instrument panel vents, air conditioning turns on and the fan adjusts to the
highest speed.

F

Note:

 In certain conditions (for example, maximum defrost), the air conditioning

compressor may continue to operate even though you switch off the air
conditioning.

MAX Defrost:

 Turn to the right to switch on defrost. Air flows through the

windshield vents and the fan adjusts to the highest speed. You can also use
this setting to defog and clear the windshield of a thin covering of ice. The heated
rear window also turns on when you select maximum defrost.

G

Note:

 To prevent window fogging, you cannot select recirculated air when

maximum defrost is on.

Recirculated air:

 Press to switch between outside air and recirculated air. The

air currently in the passenger compartment recirculates. This may reduce the
time needed to cool the interior (when used with A/C) and reduce unwanted
odors from entering your vehicle.

H

Note:

 Recirculated air may turn off (or prevent you from switching on) in all air

flow modes except MAX A/C to reduce the risk of fogging. Recirculation may
also turn on and off in various air distribution control combinations during hot
weather in order to improve cooling efficiency.

Rear passenger temperature control:

 Adjusts the temperature setting for

the rear passenger compartment.

I

Rear control lock:

 When illuminated, you can only operate the rear passenger

settings through the front controls.

J

Rear passenger power:

 Press to switch the rear system on and off.

K

Rear fan speed control:

 Adjusts the volume of air circulated to the rear

passenger compartment.

L

Heated rear window:

 Press to switch the heated rear window on and off.  See

Heated Windows and Mirrors

 (page 142).

M

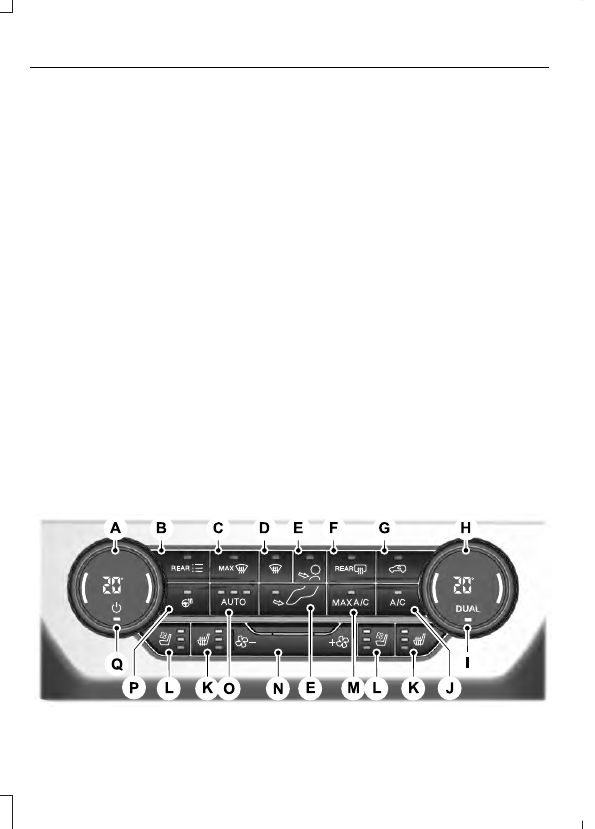

AUTOMATIC CLIMATE
CONTROL

 (If Equipped)

Note:

 The touchscreen system controls

some of the climate features. See your
SYNC information.

E246801

Driver temperature control:

 Adjusts the temperature setting on the driver

side. This control also adjusts the passenger side temperature when you switch
off dual zone mode.

A

Rear climate:

 Press to access additional touchscreen controls for the rear

climate system.

B

MAX Defrost:

 Press to switch on defrost. The driver and passenger settings

set to HI, air flows through the windshield vents, and the fan adjusts to the
highest speed. You can also use this setting to defog and clear the windshield
of a thin covering of ice. The heated rear window also turns on when you select
maximum defrost.

C

Note:

 To prevent window fogging, you cannot select recirculated air when

maximum defrost is on.

Defrost:

 Press to distribute air through the windshield air vents and de-mister.

Air distribution to the instrument panel and footwell vents turns off. You can
also use this setting to defog and clear the windshield of a thin covering of ice.

D

Air distribution control:

 Press to switch air flow from the windshield,

instrument panel or footwell vents on or off. You can distribute air through any
combination of these vents.

E

Heated rear window:

 Press to switch the heated rear window on and off.  See

Heated Windows and Mirrors

 (page 142).

F

Recirculated air:

 Press to switch between outside air and recirculated air. The

air currently in the passenger compartment recirculates. This may reduce the
time needed to cool the interior (when used with A/C) and reduce unwanted
odors from entering your vehicle.

G

Note:

 Recirculated air may turn off (or prevent you from switching on) in all air

flow modes except MAX A/C to reduce the risk of fogging. Recirculation may
also turn on and off in various air distribution control combinations during hot
weather in order to improve cooling efficiency.

Passenger temperature control:

 Adjusts the temperature setting on the

passenger side.

H

DUAL:

 Press to switch on temperature control for the passenger side of the

vehicle. When dual zone is off, passenger temperature settings remain the same
as the driver settings.

I

A/C:

 Press to switch the air conditioning on or off. Use A/C with recirculated

air to improve cooling performance and efficiency.

J

Note:

 In certain conditions (for example, maximum defrost), the air conditioning

compressor may continue to operate even though you switch off the air
conditioning.

Heated seats:

 Press to cycle through the various heat settings and off.  See

Heated Seats

 (page 157).

K

Ventilated seats:

 Press to cycle through the various ventilation settings and

off.  See Climate Controlled Seats (page 158).

L

MAX A/C:

 Press for maximum cooling. The driver and passenger settings set

to LO, recirculated air flows through the instrument panel vents, air conditioning
turns on and the fan adjusts to the highest speed.

M

Fan speed control:

 Adjusts the volume of air circulated in the vehicle.

N

AUTO:

 Press to switch on automatic operation and cycle through the automatic

fan settings, then adjust the temperature control to select the desired
temperature. You can also switch off dual zone mode by pressing and holding
for more than two seconds.

O

Heated steering wheel:

 Press to switch the heated steering wheel on and off.

P

Power:

 Press to switch the system on and off. When the system is off, it

prevents outside air from entering the vehicle.

Q

Automatic Fan Settings

The system adjusts fan speed, air
distribution, air conditioning operation, and
outside or recirculated air to maintain the
desired temperature.

The AUTO button illuminates for the
following settings:
•

When three indicators are on, there are
no limits on the fan speed so that you
reach the selected temperature as
quickly as possible with the highest
amount of cabin noise.

•

When two indicators are on, there are
moderate limits on the fan speed so
that you reach the selected
temperature with a reduced amount
of cabin noise.

•

When one indicator is on, there are
lower limits on the fan speed so that
you reach the selected temperature
with the least amount of cabin noise.

Note:

The system starts at the previous fan

setting when you switch on AUTO.

HINTS ON CONTROLLING THE
INTERIOR CLIMATE

General Hints

Note:

Prolonged use of recirculated air may

cause the windows to fog up.

Note:

You may feel a small amount of air

from the footwell air vents regardless of the
air distribution setting.

Note:

To reduce humidity build-up inside

your vehicle, do not drive with the system
switched off or with recirculated air always
switched on.

Note:

Do not place objects under the front

seats as this may interfere with the airflow
to the rear seats.

Note:

Remove any snow, ice or leaves from

the air intake area at the base of the
windshield.

Note:

To improve the time to reach a

comfortable temperature in hot weather,
drive with the windows open until you feel
cold air through the air vents.
