E146852

Repair Order #:

Distance:

Engine hours (optional):

Multi-point inspection (recommended):

Signature:

Dealer stamp

ELECTROMAGNETIC
COMPATIBILITY

WARNINGS

Do not place objects or mount
equipment on or near the airbag
cover, on the side of the seatbacks

(of the front seats), or in front seat areas
that may come into contact with a
deploying airbag. Failure to follow these
instructions may increase the risk of
personal injury in the event of a crash.

Do not fasten antenna cables to
original vehicle wiring, fuel pipes and
brake pipes.

Keep antenna and power cables at
least 4 in (10 cm) from any electronic
modules and airbags.

Note: We test and certify your vehicle to
meet electromagnetic compatibility
legislation (UNECE Regulation 10 or other
applicable local requirements). It is your
responsibility to make sure that any
equipment an authorized dealer installs on
your vehicle complies with applicable local
legislation and other requirements.

Note: Any radio frequency transmitter
equipment in your vehicle (such as cellular
telephones and amateur radio transmitters)
must keep to the parameters in the
following table. We do not provide special
provisions or conditions for installations or
use.

Car

E239120

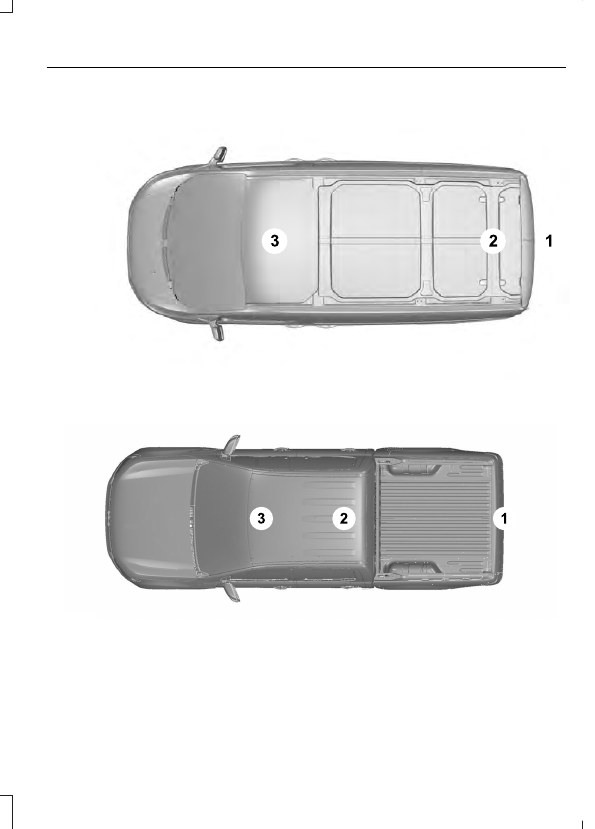

Van

E239122

Truck

E239121

Antenna Positions

Maximum output power Watt (Peak

RMS)

Frequency Band

MHz

1

50

1-30

2, 3

50

50-54

2, 3

50

68-88

2, 3

50

142-176

2, 3

50

380-512

2, 3

10

806-870

Note: After the installation of radio
frequency transmitters, check for
disturbances from and to all electrical
equipment in your vehicle, both in the
standby and transmit modes.

Check all electrical equipment:
•

With the ignition ON.

•

With the engine running.

•

During a road test at various speeds.

Check that electromagnetic fields
generated inside your vehicle cabin by the
transmitter installed do not exceed
applicable human exposure requirements.

END USER LICENSE
AGREEMENT

VEHICLE SOFTWARE END USER
LICENSE AGREEMENT (EULA)

•

You (“You” or “Your” as applicable)
have acquired a vehicle having several
devices, including SYNC ® and various
control modules, ("DEVICES") that
include software licensed or owned by
Ford Motor Company and its affiliates
("FORD MOTOR COMPANY"). Those
software products of FORD MOTOR
COMPANY origin, as well as associated
media, printed materials, and "online"
or electronic documentation
("SOFTWARE") are protected by
international intellectual property laws
and treaties. The SOFTWARE is
licensed, not sold. All rights reserved.

•

The SOFTWARE may interface with
and/or communicate with, or may be
later upgraded to interface with and/or
communicate with additional software
and/or systems provided by FORD
MOTOR COMPANY.
