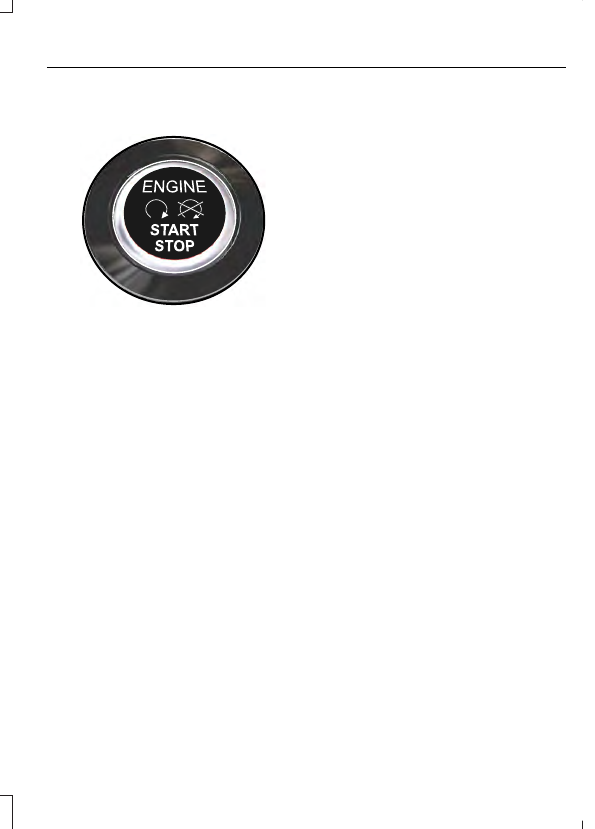

Ignition Modes

E142555

The keyless starting system has three
modes:

Off: Turns the ignition off.

•

Without applying the brake pedal,
press and release the button once
when the ignition is in the on mode, or
when the engine is running but the
vehicle is not moving.

On: All electrical circuits are operational
and the warning lamps and indicators
illuminate.

•

Without applying the brake pedal,
press and release the button once.

Start: Starts the engine.

•

Press the brake pedal, and then press
and hold the button until the engine
starts.

STARTING A GASOLINE
ENGINE

When you start the engine, the idle speed
increases. This helps to warm up the
engine. If the engine idle speed does not
slow down automatically, have your
vehicle checked by an authorized dealer.

Before starting the engine check the
following:
•

Make sure all occupants have fastened
their seatbelts.

•

Make sure the headlamps and
electrical accessories are off.

•

Make sure the parking brake is on.

•

Make sure the transmission is in park
(P).

Vehicles with an Ignition Key

Note: Do not touch the accelerator pedal.

1.

Fully depress the brake pedal.

2. Turn the key to the start position to

start your vehicle.

Note: The engine may continue cranking
for up to 15 seconds or until it starts.

Note: If you cannot start the engine on the
first try, wait for a short period and try again.

Vehicles with Keyless Start

Note: Do not touch the accelerator pedal.

1.

Fully depress the brake pedal.

2. Press the push button ignition switch

until the engine starts.

The system does not function if:
•

The passive key frequencies are
jammed.

•

The key battery has no charge.

If you are unable to start your vehicle, do
the following:

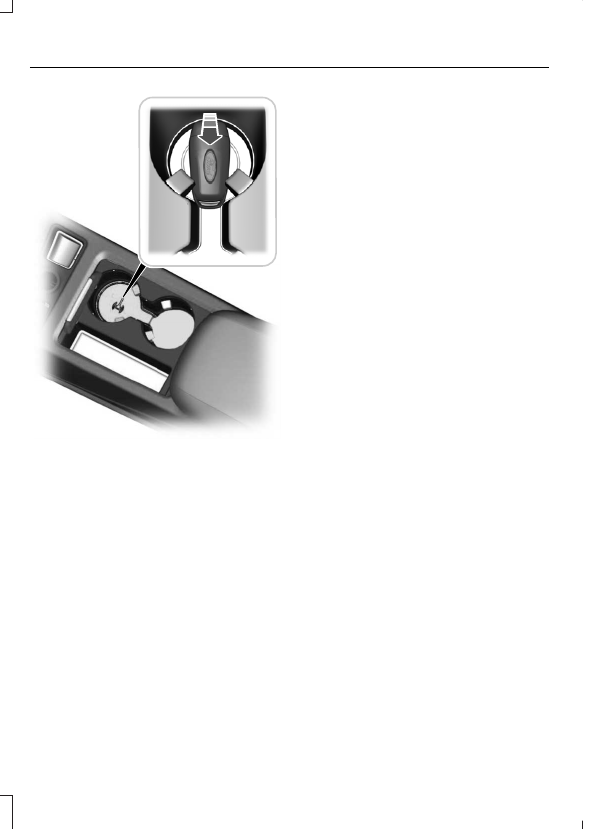

E241281

1.

Place the key in the middle of the tray
as shown.

2. With the key in this position, press the

brake pedal then press the push button
ignition switch to switch the ignition on
and start your vehicle.

Fast Restart

The fast restart feature allows you to
restart your vehicle within 20 seconds of
switching it off, even if it does not detect
a valid passive key.

Within 20 seconds of switching the engine
off, press the brake pedal and press the
push button ignition switch.  After 20
seconds, you can no longer start your
vehicle if it does not detect a valid passive
key.

Once your vehicle starts, it remains running
until you press the push button ignition
switch, even if your vehicle does not detect
a valid passive key.  If you open and close
a door while your vehicle is running, the
system searches for a valid passive key.
You cannot start your vehicle if the system
does not detect a valid passive key within
20 seconds.

Failure to Start

If you cannot start your vehicle after three
attempts, wait 10 seconds and do the
following:

1.

Fully depress the brake pedal.

2. Fully press the accelerator pedal and

hold it there.

3. Start the engine.

Automatic Engine Shutdown

For vehicles with a keyless ignition, this
automatically shuts down your vehicle if
it has been idling for an extended period.
The ignition also turns off to save battery
power.  Before your vehicle shuts down, a
message appears in the information
display showing a timer counting down.  If
you do not intervene within 30 seconds,
your vehicle shuts down.  Another message
appears in the information display to
inform you that your vehicle has shut down
to save fuel.  Start your vehicle as normal.

Automatic Engine Shutdown Override

Note:  You cannot permanently switch off
the automatic shutdown.  When you switch
it off temporarily, it turns on at the next
ignition cycle.

You can stop the shutdown, or reset the
timer, at any point before the 30-second
countdown has expired by doing any of the
following:
•

Interacting with your vehicle, for
example pressing the brake or
accelerator pedal.

•

You can temporarily switch off the
shutdown any time the ignition is on
using the information display.  See
Information Displays (page 92).

•

Pressing the OK or RESET button to
temporarily switch the feature off for
the current ignition cycle only.

Stopping the Engine When Your
Vehicle is Stationary

Vehicles with an Ignition Key

1.

Shift into park (P).

2. Apply the parking brake.

3. Turn the key to the off position.

Vehicles with Keyless Start

1.

Shift into park (P).

2. Apply the parking brake.

3. Press the push button ignition switch.

Note: The ignition, all electrical circuits and
all warning lamps and indicators will be
turned off.

Stopping the Engine When Your
Vehicle is Moving

WARNING

Switching off the engine when the
vehicle is still moving will result in a
loss of brake and steering assistance.

The steering will not lock, but higher effort
will be required. When the ignition is
switched off, some electrical circuits,
including air bags, warning lamps and
indicators may also be off. If the ignition
was turned off accidentally, you can shift
into neutral (N) and re-start the engine.

Vehicles with an Ignition Key

1.

Shift into neutral and use the brakes to
bring your vehicle to a safe stop.

2. When your vehicle has stopped, shift

into park (P) and switch the ignition
off.

3. Apply the parking brake.

Vehicles with Keyless Start

1.

Shift into neutral and use the brakes to
bring your vehicle to a safe stop.

2. When your vehicle has stopped, shift

into park (P).

3. Press and hold the push button ignition

switch, or press it three times within
two seconds.

4. Apply the parking brake.

Guarding Against Exhaust Fumes

WARNING

Exhaust leaks may result in entry of
harmful and potentially lethal fumes
into the passenger compartment. If

you smell exhaust fumes inside your
vehicle, have your vehicle inspected
immediately. Do not drive if you smell
exhaust fumes.

Important Ventilating Information

If you stop your vehicle and then leave the
engine idling for long periods, we
recommend that you do one of the
following:
•

Open the windows at least 1 in (3 cm).

•

Set your climate control to outside air.

ENGINE BLOCK HEATER

 (If

Equipped)

WARNINGS

Failure to follow engine block heater
instructions could result in property
damage or serious personal injury.

Do not use your heater with
ungrounded electrical systems or
two-pronged adapters. There is a risk

of electrical shock.

Do not fully close the hood, or allow
it to drop under its own weight when
using the engine block heater. This

could damage the power cable and may
cause an electrical short resulting in fire,
injury and property damage.

Note: The heater is most effective when
outdoor temperatures are below 0°F
(-18°C).

The heater acts as a starting aid by
warming the engine coolant. This allows
the climate control system to respond
quickly. The equipment includes a heater
element (installed in the engine block) and
a wire harness. You can connect the
system to a grounded 120-volt AC
electrical source.

We recommend that you do the following
for a safe and correct operation:
•

Use a 16-gauge outdoor extension cord
that is product certified by
Underwriter’s Laboratory (UL) or
Canadian Standards Association
(CSA). This extension cord must be
suitable for use outdoors, in cold
temperatures, and be clearly marked
Suitable for Use with Outdoor
Appliances. Do not use an indoor
extension cord outdoors. This could
result in an electric shock or become a
fire hazard.

•

Use as short an extension cord as
possible.

•

Do not use multiple extension cords.

•

Make sure that when in operation, the
extension cord plug and heater cord
plug connections are free and clear of
water. This could cause an electric
shock or fire.

•

Make sure your vehicle is parked in a
clean area, clear of combustibles.

•

Make sure the heater, heater cord and
extension cord are firmly connected.

•

Check for heat anywhere in the
electrical hookup once the system has
been operating for approximately 30
minutes.

•

Make sure the system is unplugged and
properly stowed before starting and
driving your vehicle. Make sure the
protective cover seals the prongs of the
block heater cord plug when not in use.

•

Make sure the heater system is
checked for proper operation before
winter.

Using the Engine Block Heater

Make sure the receptacle terminals are
clean and dry prior to use. Clean them with
a dry cloth if necessary.
