Ford Escape (2018 year). Manual - part 26

Trailer

Action

Message

Indicator

Message

Displays when the trailer sway control has
detected a trailer sway.  See Trailer Sway

Control (page 208).

-

Trailer Sway Reduce

Speed

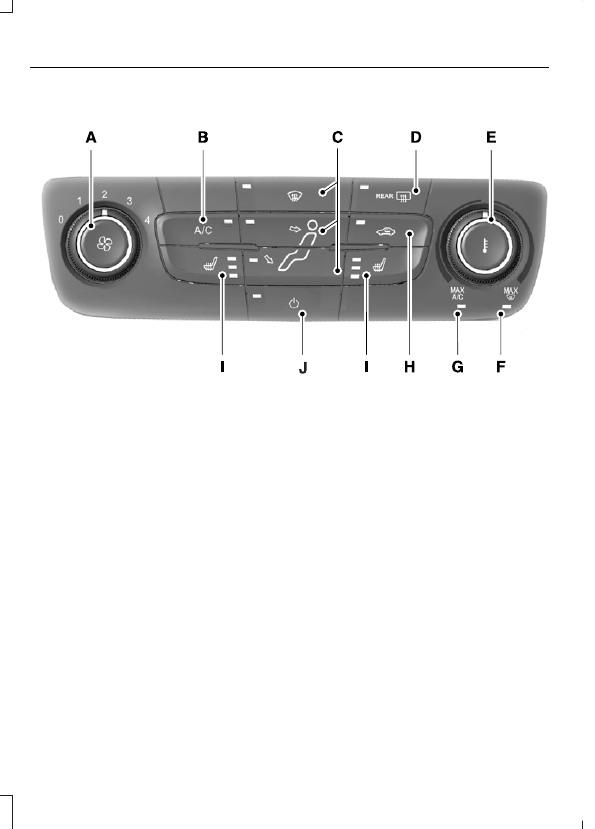

MANUAL CLIMATE CONTROL

 (If Equipped)

E222397

Fan speed control: Adjusts the volume of air circulated in the vehicle.

A

A/C: Press to switch the air conditioning on or off. Use A/C with recirculated
air to improve cooling performance and efficiency.

B

Air distribution control: Press to switch air flow from the windshield,
instrument panel, or footwell vents on or off. You can distribute air through any
combination of these vents.

C

Note: At least one of these buttons illuminates on when the system is on.

Heated rear window: Press to switch the heated rear window on and off.  See
Heated Windows and Mirrors (page 113).

D

Temperature control: Adjusts the temperature of the air circulated in your
vehicle.

E

MAX Defrost: Turn to the right to switch on defrost. Air flows through the
windshield vents and the fan adjusts to the highest speed. You can also use
this setting to defog and clear the windshield of a thin covering of ice. The heated
rear window also turns on when you select maximum defrost.

F

Note: To prevent window fogging, you cannot select recirculated air when
maximum defrost is on.

MAX A/C: Turn to the left for maximum cooling. Recirculated air flows through
the instrument panel vents and the air conditioning turns on.

G

Note: In certain conditions (for example, maximum defrost), the air conditioning
compressor may continue to operate even though you switch off the air
conditioning.

Recirculated air: Press to switch between outside air and recirculated air. The
air currently in the passenger compartment recirculates. This may reduce the
time needed to cool the interior (when used with A/C) and reduce unwanted
odors from entering your vehicle.

H

Note: Recirculated air may turn off (or prevent you from switching on) in all air
flow modes except MAX A/C to reduce the risk of fogging. Recirculation may
also turn on and off in Panel or Panel/Floor air flow modes during hot weather
in order to improve cooling efficiency.

Heated seats: Press to switch the heated seats on and off.  See Heated Seats
(page 122).

I

Power: Press to switch the system on and off. When the system is off, it
prevents outside air from entering the vehicle.

J

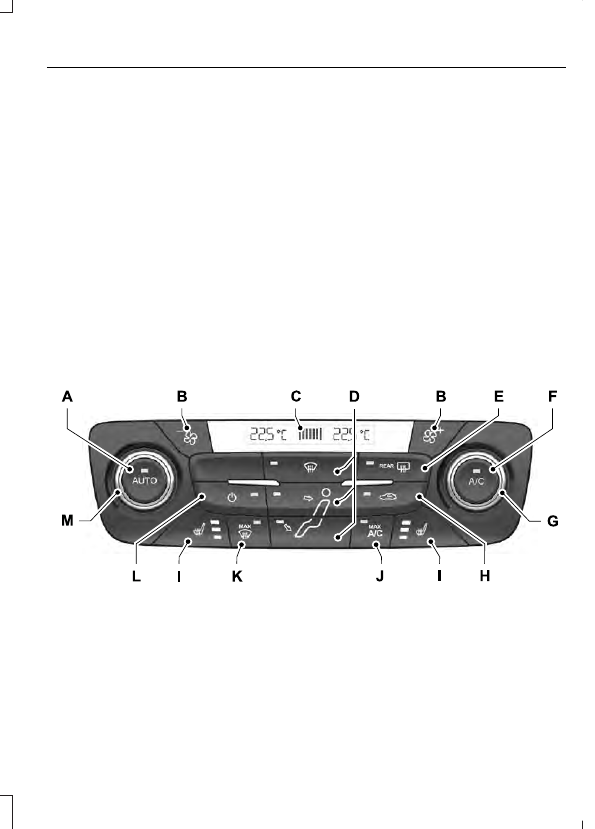

AUTOMATIC CLIMATE CONTROL

E222398

AUTO: Press to switch on automatic operation. Adjust to select the desired
temperature. Fan speed, air distribution, air conditioning operation, and outside
or recirculated air adjust to heat or cool the vehicle to maintain the desired
temperature. You can also switch off dual zone mode by pressing and holding
for more than two seconds.

A

Fan speed control: Adjusts the volume of air circulated in the vehicle.

B

Climate control display: Shows the temperature settings and fan speed.

C

Air distribution control: Press to switch air flow from the windshield,
instrument panel, or footwell vents on or off. You can distribute air through any
combination of these vents.

D

Heated rear window: Press to switch the heated rear window on and off.  See
Heated Windows and Mirrors (page 113).

E

A/C: Press to switch the air conditioning on or off. Use A/C with recirculated
air to improve cooling performance and efficiency.

F

Note: In certain conditions (for example, maximum defrost), the air conditioning
compressor may continue to operate even though you switch off the air
conditioning.

Passenger temperature control: Adjusts the temperature setting on the
passenger side.

G

Recirculated air: Press to switch between outside air and recirculated air. The
air currently in the passenger compartment recirculates. This may reduce the
time needed to cool the interior (when used with A/C) and reduce unwanted
odors from entering your vehicle.

H

Note: Recirculated air may turn off (or prevent you from switching on) in all air
flow modes except MAX A/C to reduce the risk of fogging. Recirculation may
also turn on and off in Panel or Panel/Floor air flow modes during hot weather
in order to improve cooling efficiency.

Heated seats: Press to switch the heated seats on and off.  See Heated Seats
(page 122).

I

MAX A/C: Press for maximum cooling. The driver and passenger settings set
to LO, recirculated air flows through the instrument panel vents, air conditioning
turns on and the fan adjusts to the highest speed.

J

MAX Defrost: Press to switch on defrost. The driver and passenger settings
set to HI, air flows through the windshield vents, and the fan adjusts to the
highest speed. You can also use this setting to defog and clear the windshield
of a thin covering of ice. The heated rear window also turns on when you select
maximum defrost.

K

Note: To prevent window fogging, you cannot select recirculated air when
maximum defrost is on.

Power: Press to switch the system on and off. When the system is off, it
prevents outside air from entering the vehicle.

L

Driver temperature control: Adjusts the temperature setting on the driver
side. This control also adjusts the passenger side temperature when you switch
off dual zone mode.

M
