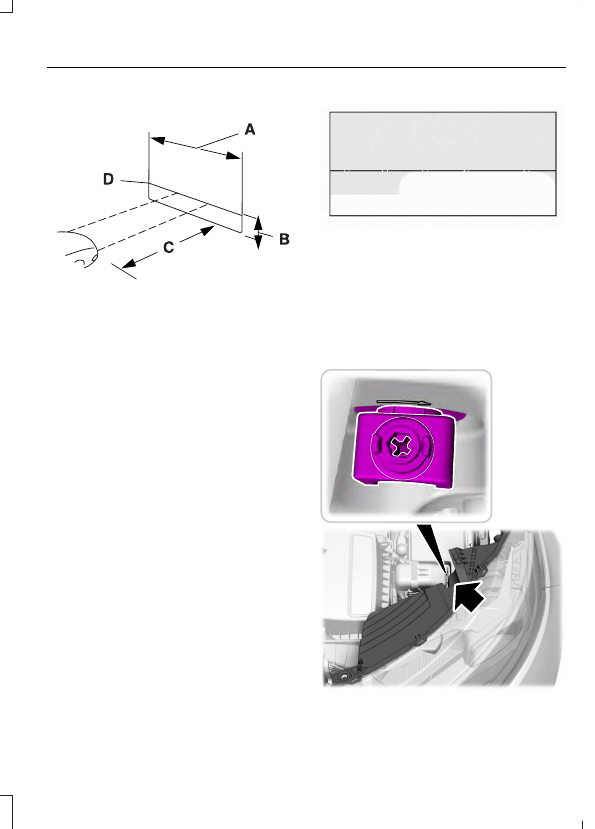

Headlamp Aiming Target

E142592

8 feet (2.4 meters).

A

Center height of lamp to ground.

B

25 feet (7.6 meters).

C

Horizontal reference line.

D

Vertical Aim Adjustment Procedure

1.

Park the vehicle directly in front of a
wall or screen on a level surface,
approximately 25 feet (7.6 meters)
away.

2. Measure the height of the headlamp

bulb center from the ground and mark
an 8 foot (2.4 meter) horizontal
reference line on the vertical wall or
screen at this height.

Note: To see a clearer light pattern for
adjusting, you may want to block the light
from one headlamp while adjusting the
other.

3. Turn on the low beam headlamps to

illuminate the wall or screen and open
the hood.

E142465

4. On the wall or screen you will observe

a flat zone of high intensity light
located at the top of the right hand
portion of the beam pattern. If the top
edge of the high intensity light zone is
not at the horizontal reference line, the
headlamp will need to be adjusted.

E194757

5. Locate the vertical adjuster on each

headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise or counterclockwise in order
to adjust the vertical aim of the
headlamp. The horizontal edge of the
brighter light should touch the
horizontal reference line.

6. Close the hood and turn off the lamps.

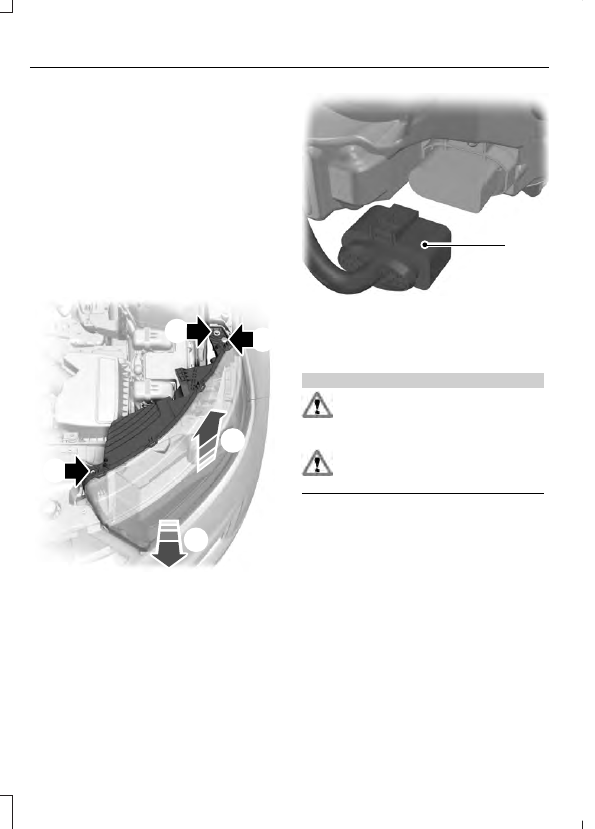

REMOVING A HEADLAMP

1.

Open the hood.  See Opening and
Closing the Hood (page 265).

2

2

E194758

2

4

3

2. Remove the screws.

3. Pull the headlamp toward the front of

the vehicle to disengage it from the
lower fixing point.

4. Lift the headlamp up and remove it.

E133750

5

5. Disconnect the electrical connector.

CHANGING A BULB

WARNINGS

Switch all of the lamps and the
ignition off. Failure to follow this
warning could result in serious

personal injury.

Bulbs become hot when in use. Let
them cool down before you remove
them.

Use the correct specification bulb.

See Bulb Specification Chart (page 286).

Install in the reverse order unless otherwise
stated.

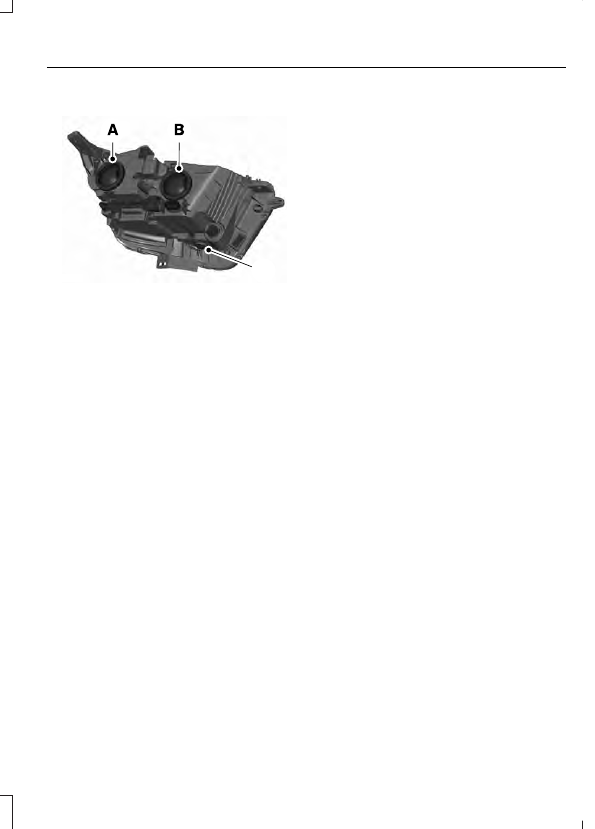

Headlamp

E188959

C

Headlamp low beam.

A

Headlamp low and high beam -
vehicles with high-intensity
discharge headlamps.

Headlamp high beam.

B

Daytime running lamp.

Front direction indicator.

C

Front Direction Indicator

1.

Remove the headlamp assembly.  See
Removing a Headlamp (page 284).

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

Headlamp Low Beam

1.

Remove the cover.

2. Turn the bulb counterclockwise and

remove it.

3. Disconnect the electrical connector.

Note: Do not touch the bulb glass.

Note: You cannot separate the bulb from
the bulb holder.

Headlamp High Beam

1.

Remove the cover.

2. Turn the bulb counterclockwise and

remove it.

3. Disconnect the electrical connector.

Note: Do not touch the bulb glass.

Note: You cannot separate the bulb from
the bulb holder.

High-Intensity Discharge Headlamps

These lamps operate at a high voltage. See
an authorized dealer if they fail.

Daytime Running Lamp

1.

Remove the cover.

2. Turn the bulb counterclockwise and

remove it.

3. Disconnect the electrical connector.

Note: Do not touch the bulb glass.

Note: You cannot separate the bulb from
the bulb holder.

LED Lamps

LED lamps are not serviceable items. See
an authorized dealer if they fail.

The following lamps are LED:
•

Brake and rear lamps.

•

Central high mounted brake lamp.

•

Front side marker lamps.

•

Front signature lamps.

•

Rear direction indicators.

•

Rear side marker lamps.

•

Reversing lamps.

•

Side direction indicators.

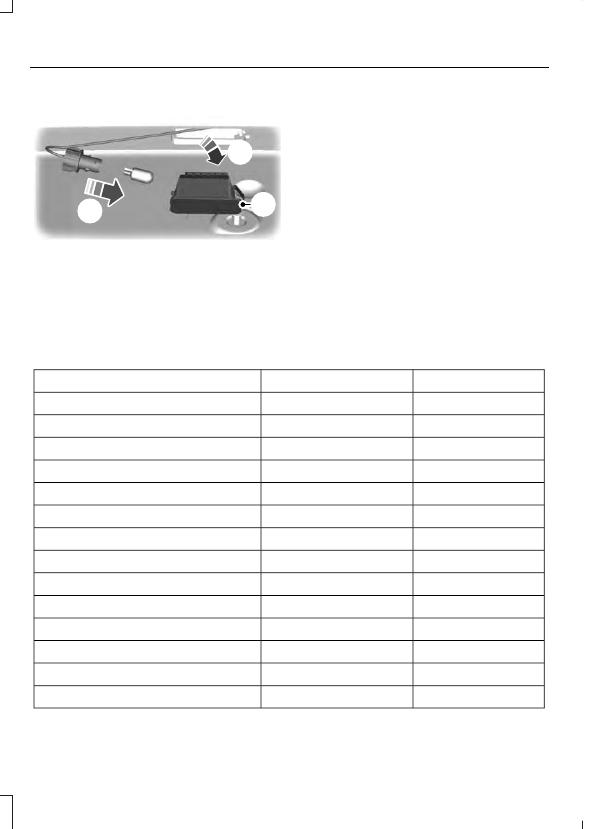

License Plate Lamp

3

2

1

E72789

1.

Use a suitable tool, for example a
screwdriver, to carefully remove the
lamp.

2. Remove the lamp.

3. Turn the bulb holder counterclockwise

and remove it.

4. Remove the bulb by pulling it straight

out.

BULB SPECIFICATION CHART

Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized D.O.T. marking
for North America to make sure they have
the proper lamp performance, light
brightness, light pattern, and safe visibility.
The correct bulbs will not damage the
lamp assembly or void the lamp assembly
warranty and will provide quality bulb
illumination time.

Exterior Lamps

Power (Watt)

Specification

Lamp

LED

LED

Brake and rear lamp.

LED

LED

Central high mounted brake lamp.

PWM

H15

Daytime running lamps.

21

WY21W

Front direction indicator.

LED

LED

Front side marker lamp.

LED

LED

Front signature lamp.

55

9005LL

Headlamp high beam.

55

H11LL

Headlamp low beam.

HID

D3S

High-intensity discharge headlamps.

5

W5W

License plate lamp.

LED

LED

Rear direction indicator.

LED

LED

Rear side marker lamp.

LED

LED

Reversing lamps.

LED

LED

Side direction indicator.

Note: LED lamps are not serviceable. See an authorized dealer if they fail.
