GAUGES

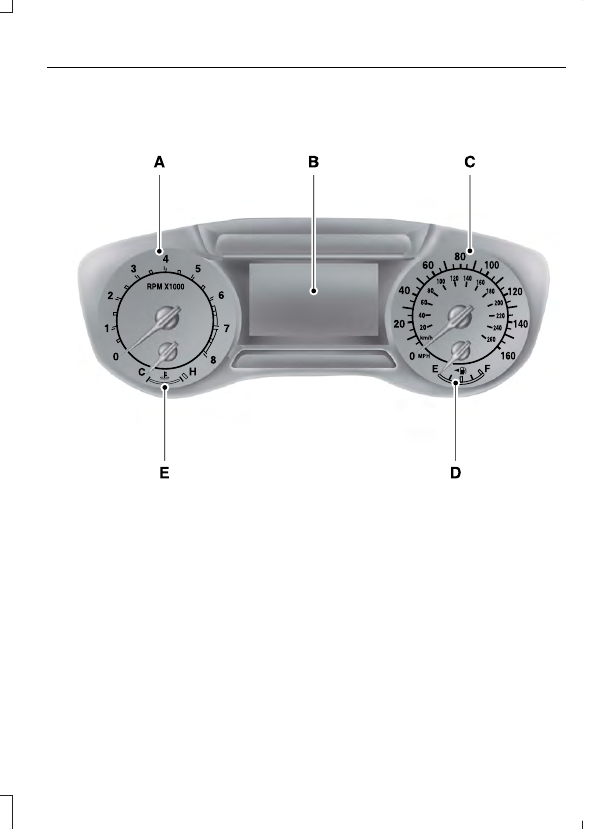

Type 1

E144485

Tachometer

A

Information Display

B

Speedometer

C

Fuel Gauge

D

Engine Coolant Temperature Gauge

E

Information Display

Odometer

Located in the bottom of the information
display. Registers the accumulated
distance your vehicle has traveled.

Outside Air Temperature

Shows the outside air temperature.

Compass

Displays the vehicle’s heading direction.

Trip Computer

See General Information (page 102).

Vehicle Settings and Personalization

See General Information (page 102).

Engine Coolant Temperature
Gauge

Shows the temperature of the engine
coolant. At normal operating temperature,
the needle remains in the center section.
If the needle enters the red section, the
engine is overheating. Stop the engine,
switch the ignition off and determine the
cause once the engine has cooled down.

Note: Do not restart the engine until the
cause of overheating has been resolved.

WARNING

Never remove the coolant reservoir
cap while the engine is running or hot.

Fuel Gauge

Note: The fuel gauge may vary slightly
when your vehicle is moving or on a gradient.

Switch the ignition on. The fuel gauge
indicates approximately how much fuel is
left in the fuel tank. The arrow adjacent to
the fuel pump symbol indicates on which
side of your vehicle the fuel filler door is
located.

The needle should move toward F when
you refuel your vehicle. If the needle points
to E after adding fuel, this indicates your
vehicle needs service soon.

After refueling some variability in needle
position is normal:

•

It may take a short time for the needle
to reach F after leaving the gas station.
This is normal and depends upon the
slope of pavement at the gas station.

•

The fuel amount dispensed into the
tank is a little less or more than the
gauge indicated. This is normal and
depends upon the slope of pavement
at the gas station.

•

If the gas station nozzle shuts off
before the tank is full, try a different
gas pump nozzle.

Low Fuel Reminder

A low fuel reminder triggers at 50 mi
(80 km) to empty.

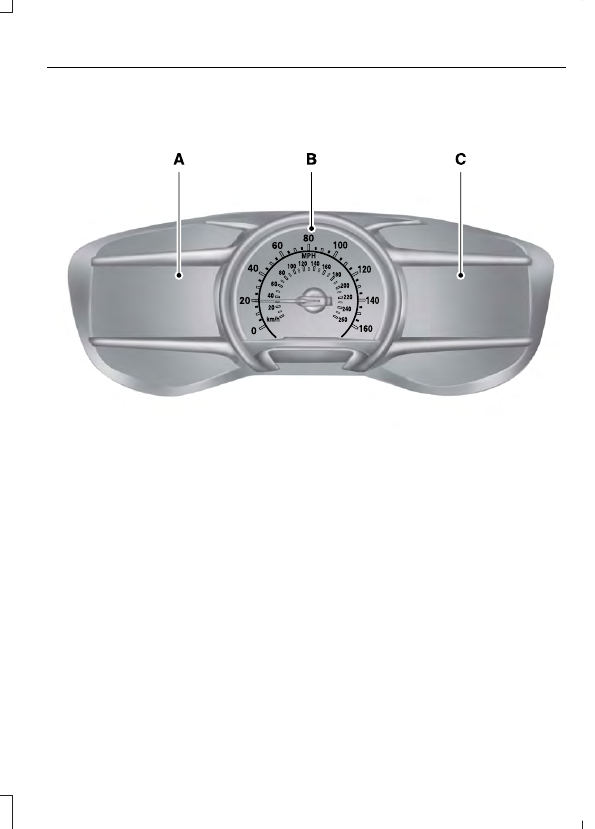

Type 2

E144486

Left Information Display

A

Speedometer

B

Right Information Display.  See General Information (page 102).

C

Left Information Display

Odometer

Located in the bottom of the information
display. Registers the accumulated
distance your vehicle has traveled.

Trip Computer

See General Information (page 102).

Vehicle Settings and Personalization

See General Information (page 102).

WARNING LAMPS AND
INDICATORS

The following warning lamps and
indicators alert you to a vehicle condition
that may become serious.  Some lamps
illuminate when you start your vehicle to
make sure they work.  If any lamps remain
on after starting your vehicle, refer to the
respective system warning lamp for further
information.

Note: Some warning indicators appear in
the information display and function the
same as a warning lamp, but do not display
when you start your vehicle.

Adaptive Cruise Control

 (If Equipped)

E144524

The speed control system
indicator light changes color to
indicate what mode the system

is in:  See Using Adaptive Cruise Control
(page 205).

On (white light): Illuminates when you turn
the adaptive cruise control system on.
Turns off when you turn the speed control
system off.

Engaged (green light): Illuminates when
the adaptive cruise control system
engages. Turns off when the speed control
system is disengaged.

Adaptive Steering

 (If Equipped)

E223375

The adaptive steering system
indicator illuminates if the
system detects a fault during the

continuous diagnostic checks.

Adaptive Steering Initialization (yellow,
flashing): The adaptive steering system
has detected a difference between
steering wheel angle and the desired road
wheel angle. The steering wheel adjusts
itself to correct this difference. This
adjustment is part of normal system
operation.

Adaptive Steering Off (yellow, solid): The
adaptive steering system is off. It is
possible that the steering wheel may not
be straight when the vehicle is driving
straight ahead. If this message persists,
see an authorized dealer.

Adaptive Steering Loss (red, solid): The
adaptive steering system integrity cannot
be verified. Do not drive the vehicle and
contact an authorized dealer immediately.
See Steering (page 220).

Anti-Lock Braking System

If it illuminates when you are
driving, this indicates a
malfunction.  You will continue

to have normal braking (without Anti-lock
braking system) unless the brake system
warning lamp is also illuminated. Have the
system checked by an authorized dealer.

Battery

If it illuminates while driving, it
indicates a malfunction. Switch
off all unnecessary electrical

equipment and have the system checked
by an authorized dealer immediately.

Blind Spot Monitor

 (If Equipped)

E151262

It will illuminate when you switch
this feature off or in conjunction
with a message.  See Blind Spot

Information System (page 216).
